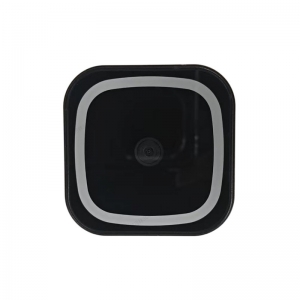

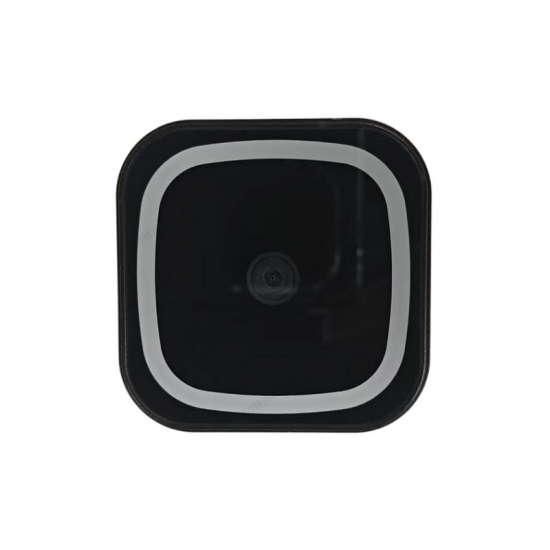

High Secure Binocular WeChat Payment Palm Vein Scanner

Product Name: High Secure Binocular WeChat Payment Palm Vein Scanner model SF230

Main Features:

Palmprint/Palm Vein Dual-Modal

Polarized light system

RGB/IR aligned

Palm AE inside

Customized Lighting Interaction System

Large Field of View (FOV), 5~15cm Palm Scanning Working Distance

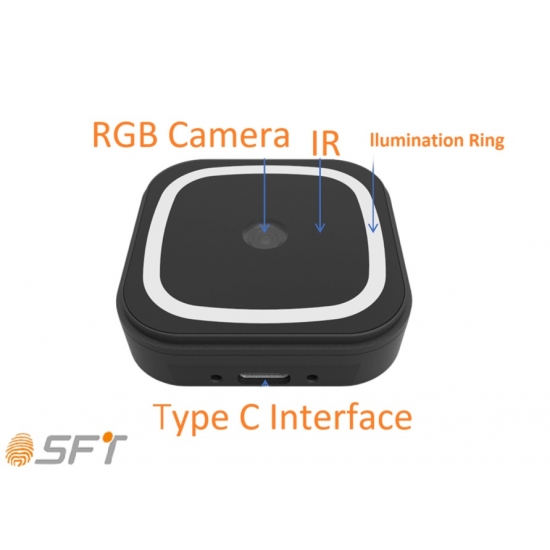

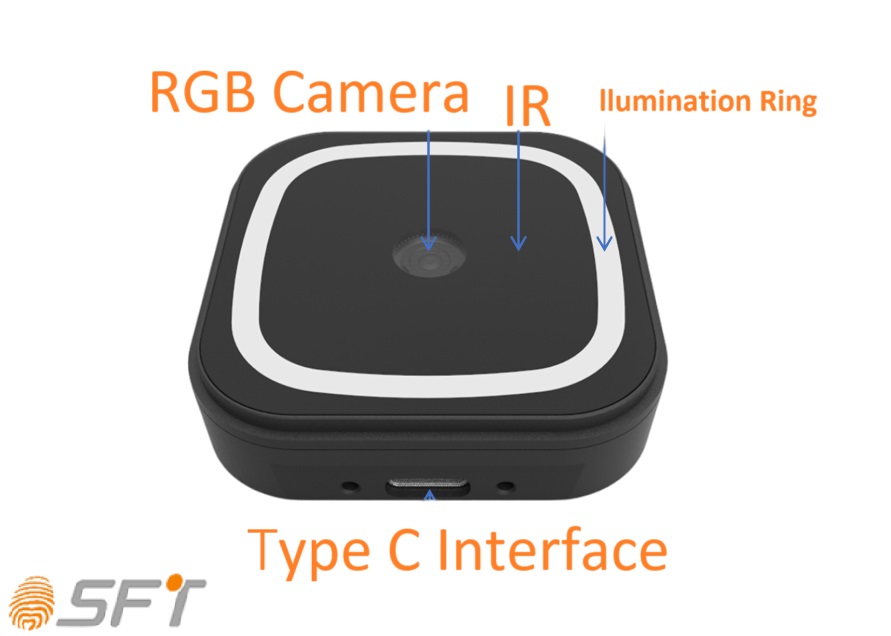

Payment Secure Palm Vein Scanner Detailed Functional Display

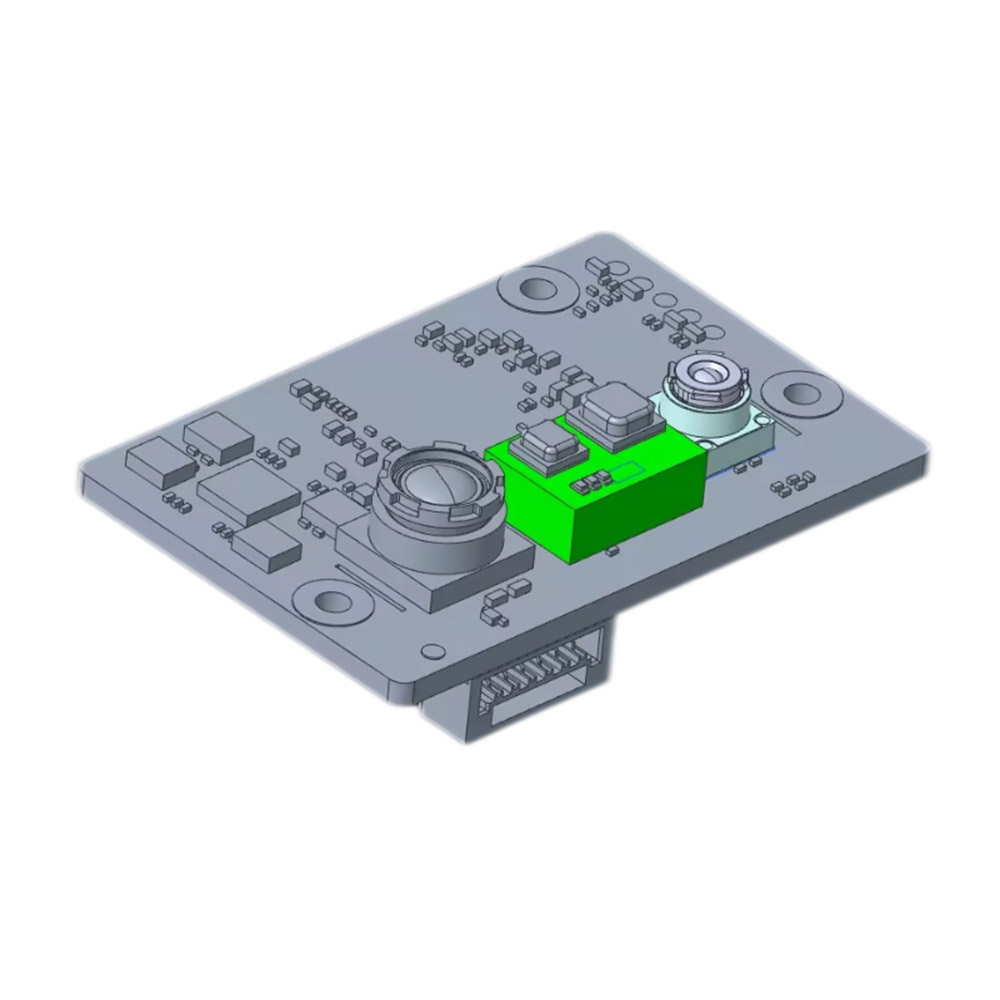

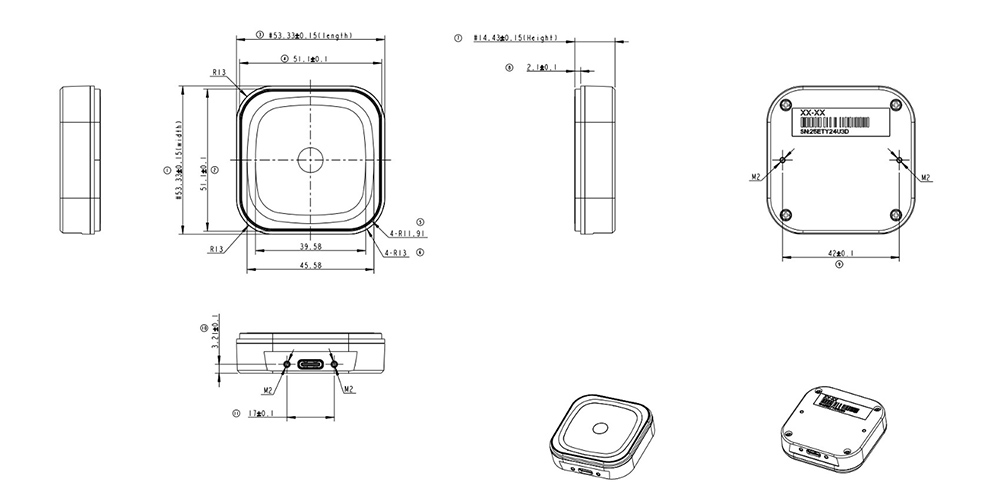

Palm Prints Module 3D Mechanical Drawing

SFT SF230 RGB&IR dual-modal palm scanner camera utilizes high-precision optical technology, incorporating a high-performance ISP and AI module. It features a unique software-based AE algorithm, enabling efficient palm detection and closed-loop Palm AE under various lighting conditions, including low-light environments, to provide high-quality palm print and palm vein images, widely used in WeChat payment etc highly security fields

 SF230 Palm Vein Reader could be used in Windows, Linux and Android systems, and as Image algorithm processing is carried out inside the module, so the upper computer needs to perform palmprint recognition algorithms, including liveness detection and feature extraction. It is recommended to have a system with computing power of at least Arm 4*A17 up to 1.8GHz

Detailed Technical Specifications:

Module parameters：

Overall Dimensions: L53.33mm*W53.33mm*H14.43mm

 Camera:  RGB/IR

 Communication interface: USB Type C(USB2.0 Agreement)

 Palm scanning working distance:  5~15cm

 QR code scanning working distance: 3~20cm,SupportsforSimpleQRCode

 Operating voltage: 5V~12V

 Power supply current >1.5A@5V

 Module power consumption: Average2.5W

 ESD level: Contactdischarge±4KV,airdischarge±8KV

 RE level: Complies with GB9254 CLASS B specifications

Palmprint Algorithm

 Performance

 Palm Scanning Angle: Pitch angle≤30°,rollangle≤30°,horizontalrotation≤360°

 Palm Recognition Success Rate: 98%

 Host Computing Power Requirements: ≥4*A17@1.8GHz

 Algorithm Deployment Method: Support for Local Deployment and Cloud Deployment

Firmware and SDK Capability

 Image Processing: High Performance ISP inside or Palm AE inside

 Security: Palmprint Feature Encryption

 OTA Support: Support for USB Upgrade

 Compatibility of the system: Support for Android7/8/9/10; SupportforWindows10

Operating Conditions

 Operating Temperature: -10℃~50℃

 Relative Humidity: 0~95%

 Illuminance: 0~50,000Lux（ModuleNotExposedtoDirectSunlight）

Storage Conditions

 Storage Temperature: -40℃~85℃

 Storage Humidity:  10%~95%
