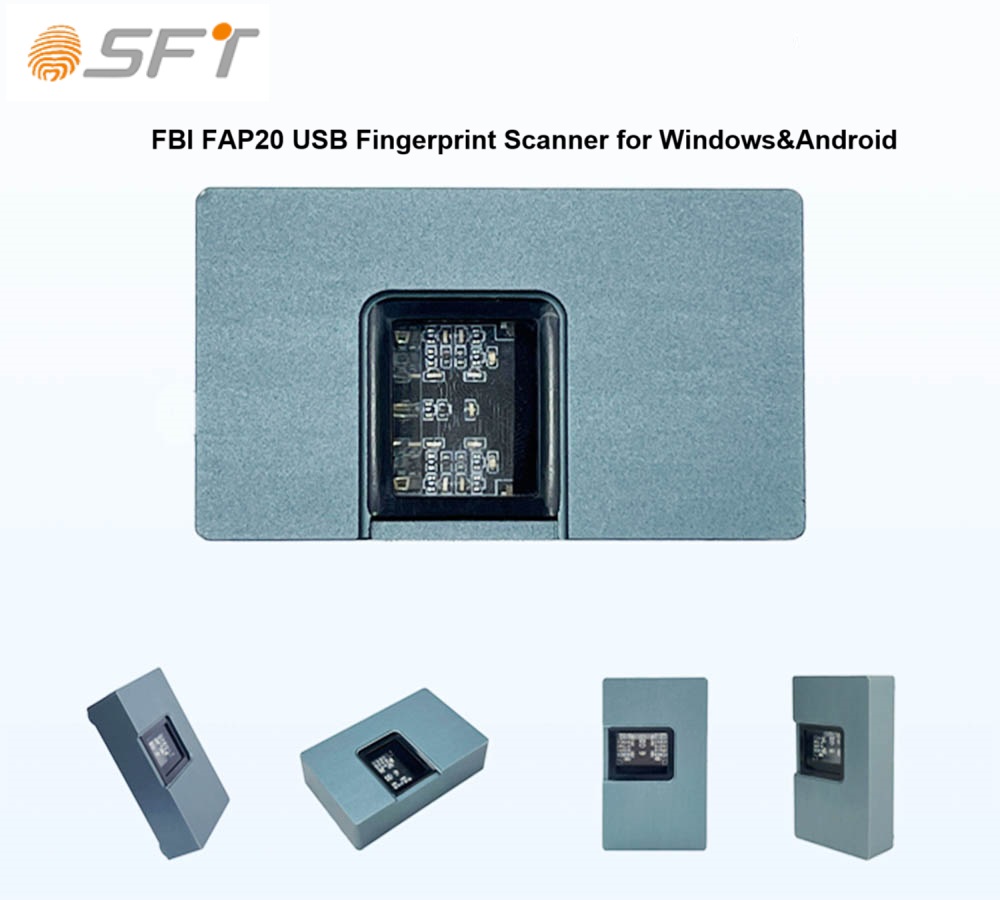

FBI certified Optical USB FAP20 ISO19794 template Fingerprint Scanner

Product Name: FBI certified Optical USB FAP20 ISO19794 template Fingerprint Scanner model FR505

Main Features:

Exquisite structure: 59.1x32x16.6mm ultra-thin structural design.；

 Clear images: Equipped with residual fingerprint suppression function, capable of capturing high-definition fingerprint images；

 Efficient capture: Utilizing optical distortion-free fingerprint imaging technology for fast capture speed；

Authoritative certification: Compliant with the U.S. FBI PIV Mobile ID FAP20；

International standards: Compliant with ISO19794-2, ISO19794-4, ANSI378, WSQ,

and other international standards ；

Simple development: Standard USB interface, providing SDK source code

Model Windows USB fingerprint scanner model FR505 is with FAP20 FBI certified Optical fingerprint scanner with a scanning pixel up to 300*400pixels for big scanning area and higher security

FR505 is very slim and portable designed for easy carry

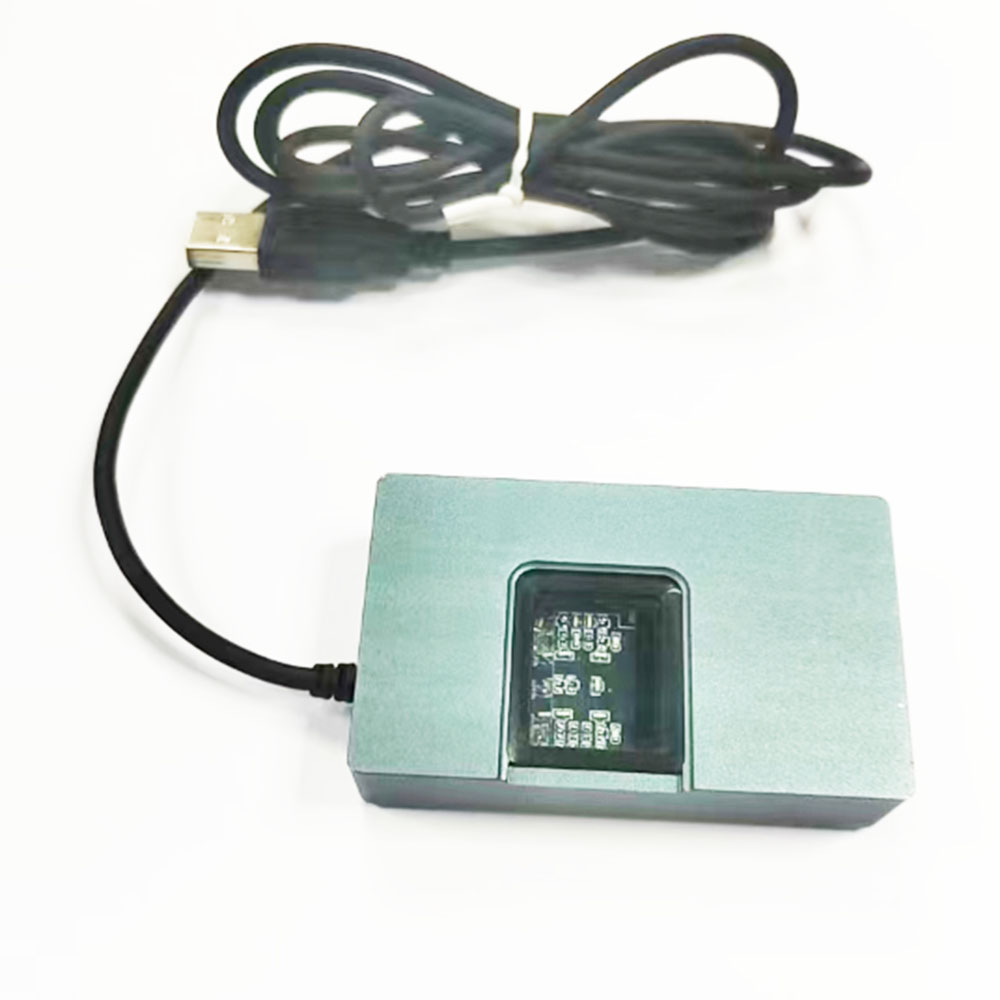

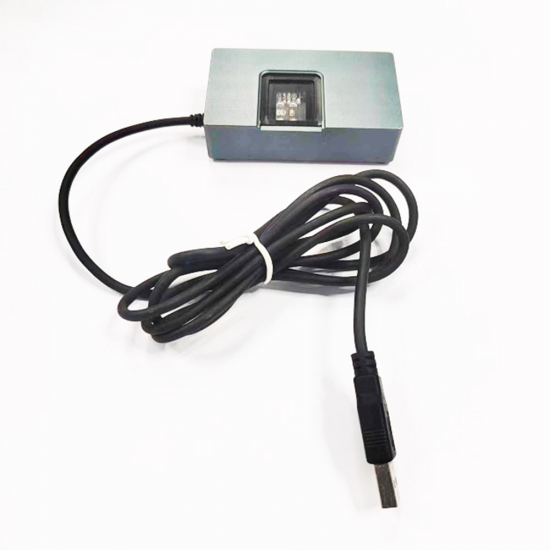

U.S. FBI PIV Mobile ID FAP20 Fingerprint Reader is with USB2.0 for fast data transfer

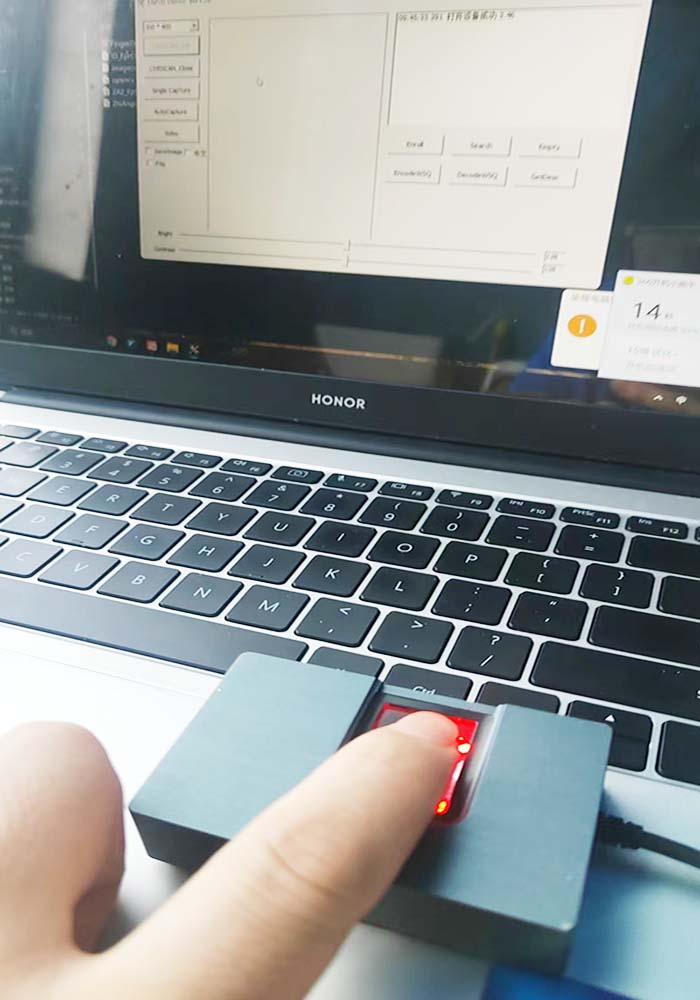

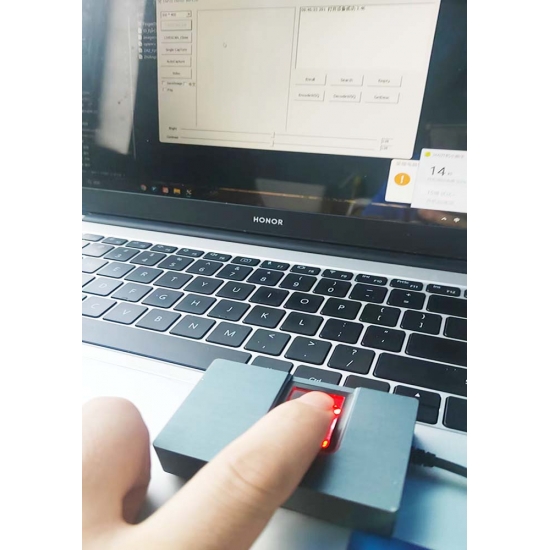

FR505 Fingerprint scanner could be used as Enrollment as well as windows login

Technical Specification:

Communication Interface+C5:E22 USB1.1/2.0

Supply Voltage: 5V (typical value), with a range of 4.2V to 5.5V

Operating Current: 40mA (typical value), peak current: 80mA.

Sensor Types: Optical Sensor  FAP20 standard; scatch resistant;

Live Detection: Support live fingerprint detection

Connectivity/Communication: Wired, USB-A

Dimension : 59.1x32x16.6mm

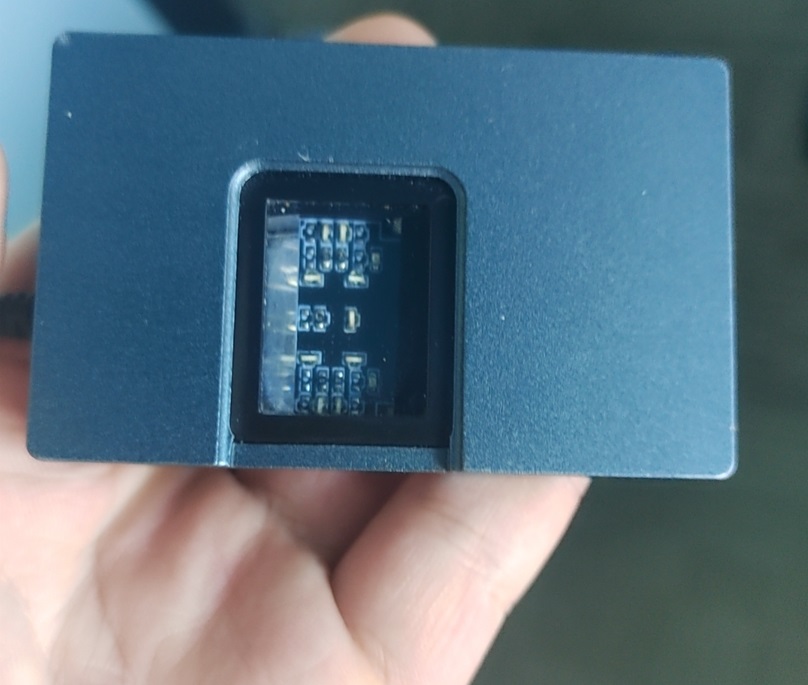

Acquisition Window: 16.5 x 21.0mm

Image Size: 300*400 pixel

Image Resolution: 500DPI

Distortion: < 0.1 %

Gray Level: 8-bit 256 levels

Gray Level Dynamic Range 150

Acquisition Time: 15 frames per second

Matching Method: matching mode (1:1)Search Mode（1：N）

Response Time:  1:N match  < 1s

FAR:  < 0.01 %

FRR:  < 0.5 %

Electrostatic Discharge (ESD) Rating: Contact discharge: ±8KV, Air discharge: ±15KV

Communication : Windows; Android; Linux；Embedded

SDK: Android SDK(Java/Kotlin) compatiable with android OS versions from 10 onward,windows7 and above. Net framework 4.0+, and Linux with complete English documentation and sample integration guide.

International Standards: Compliant with ISO19794-2, ISO19794-4, ANSI378, WSQ,

Compliance/Certificates: ISO19794-2; FBI PIV,CE

Environment Durability: IP65(Dust and water resistant)

Operating Temperature: -10℃－+60℃

Storage: -40℃－+60℃

Operating Humidity: 90%R.H（Non-Condensing）

Storage Humidity: 0～95% R.H

Accessories: USB fingerprint scanner; USB-A(Female)to USB-C(Male)Otg Adapter as option

Brand: SFT or Customized, free SDK for secondary development
