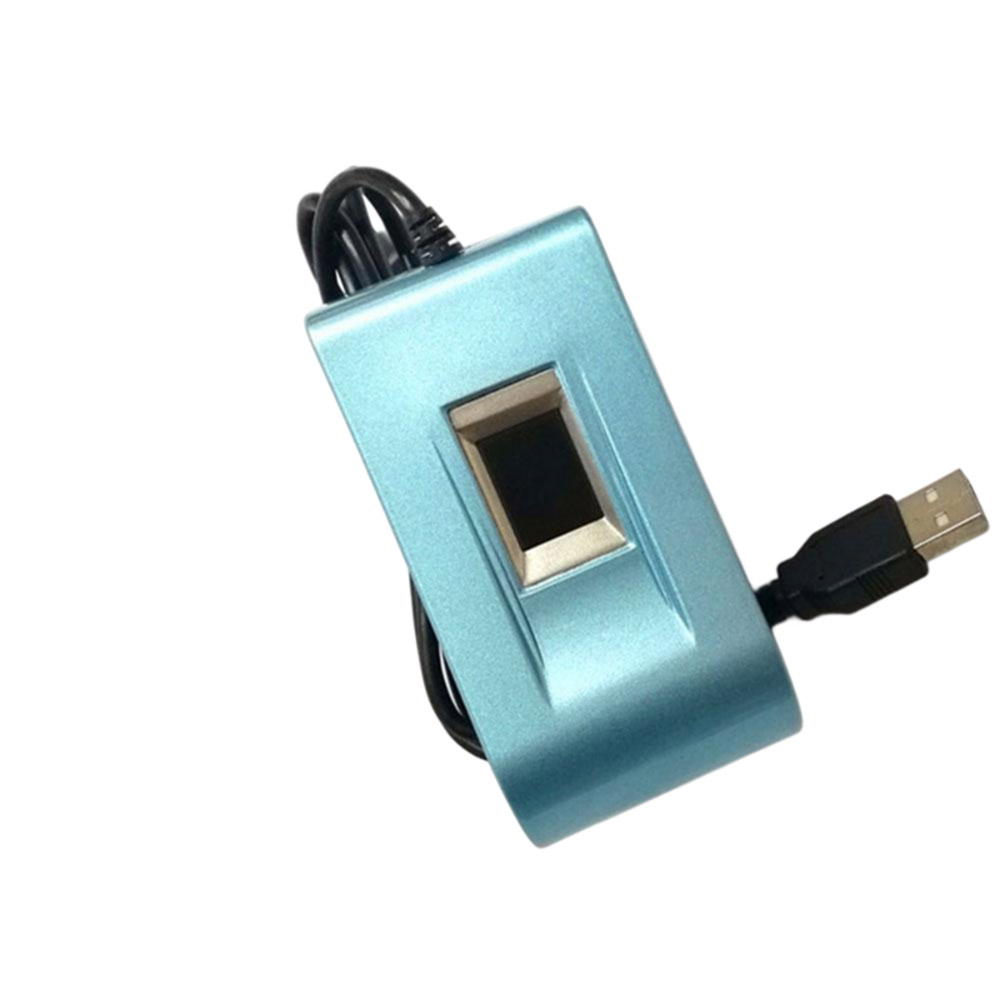

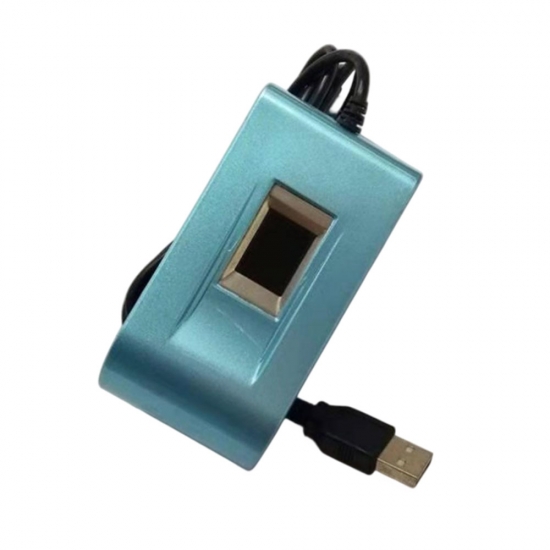

500DPI FAP20 WSQ ANSI USB Biometric Fingerprint Reader for Authentication

Product Name: 500DPI WSQ ANSI ISO19794-2 USB Biometric Fingerprint Reader for Authentication model FR503

Main Features:

Exquisite structure: 75x32x21.6mm ultra-thin structural design；

Clear images: Equipped with residual fingerprint suppression function, capable of capturing high-definition fingerprint images；

Efficient capture: Utilizing TFT distortion-free fingerprint imaging technology for fast capture speed；

Authoritative certification: Compliant with the U.S. FBI PIV Mobile ID FAP20；

International standards: Compliant with ISO19794-2, ISO19794-4, ANSI378, WSQ,

and other international standards ；

Simple development: Standard USB interface, providing SDK source code

Technical Specification:

Communication Interface+C5:E22:  USB1.1/2.0

Supply Voltage:  5V (typical value), with a range of 4.2V to 5.5V

Operating Current: 40mA (typical value), peak current: 90mA.

Sensor Types: LTPS TFT  FAP20 standard; DLC coating providing 20N @ 9H per ASTM D3363-00scatch resistant;

Connectivity/Communication: Wired, USB-A

Live detection: Support live finger detection

Dimension : 59.1x32x16.6mm

Acquisition Window: 15.24 x 20.32mm

Image Size: 300*400 pixel

Image Resolution: 500DPI

Distortion: < 0.1 %

Gray Level : 8-bit 256 levels

Gray Level Dynamic Range: 150

Acquisition Time: 15 frames per second

Matching Method:  support matching mode (1:1)Search Mode（1:N)

On-chip fingerprint template matching: support on-chip fingerprint template matching for 1:1 and 1:N verification

Response Time: 1:N match  < 1s

FAR:  < 0.01 %

FRR:  < 0.5 %

Electrostatic Discharge (ESD) Rating: Contact discharge: ±8KV, Air discharge: ±15KV

Communication: Windows: Android; Linux;Embedded

SDK: Android SDK(Java/Kotlin) compatiable with android OS versions from 10 onward,windows7 and above. Net framework 4.0+, and Linux with complete English documentation and sample integration guide.

International Standards: Compliant with ISO19794-2, ISO19794-4, ANSI378, WSQ,

Compliance/Certificates: ISO19794-2; FBI PIV,CE

Environment Durability: IP65(Dust and water resistant)

Operating Temperature: -10℃－+60℃

Storage: -40℃－+60℃

Operating Humidity: 90%R.H（Non-Condensing）

Storage Humidity: 0～95% R.H

Accessories: USB fingerprint scanner; USB-A(Female)to USB-C(Male)Otg Adapter as option

Brand: SFT or Customized, free SDK for secondary development

Packing way: 1pcs *USB fingerprint reader 1pcs* user manual

Dimension: 98*20*49cm；

Weight: 0.1KGS/pcs；

Packing info/carton: 50pcs/carton 7KGS

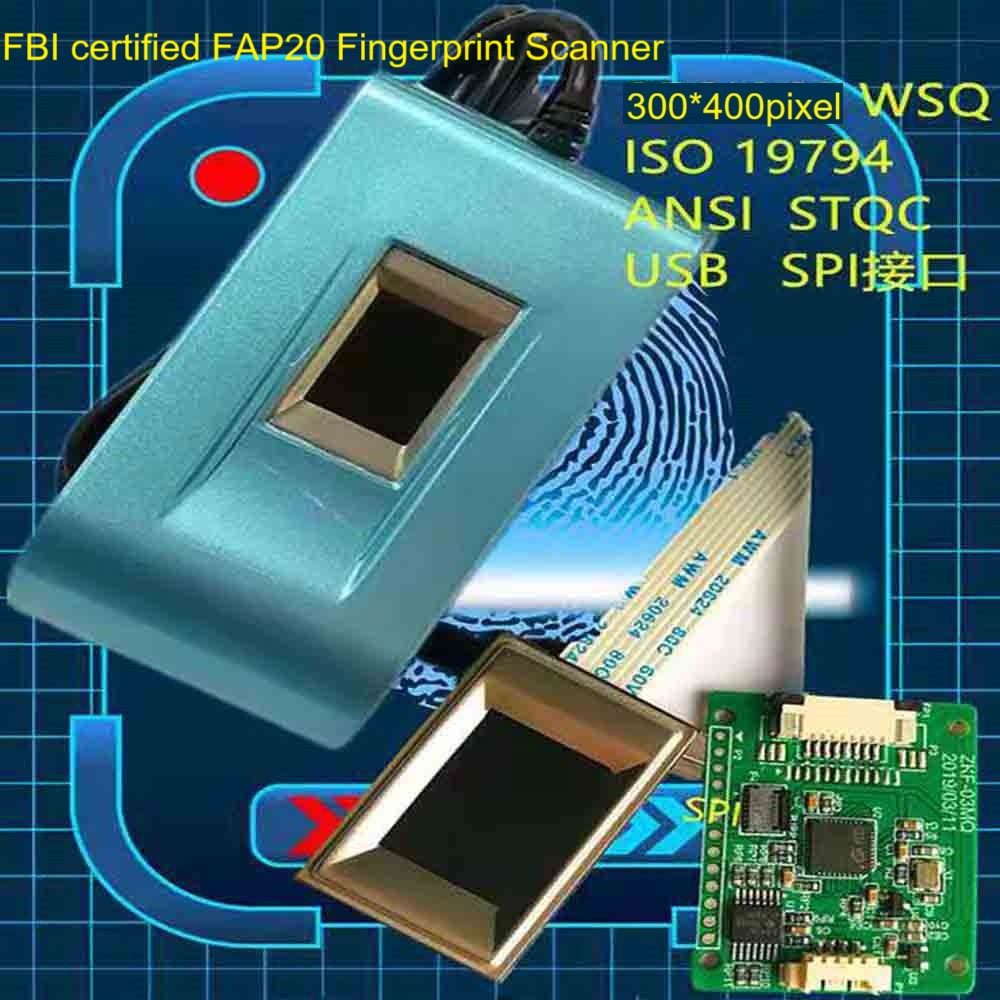

FR503 could sell in sperated fingerprint module alone for vending machine integration

Free Demo for easy Secondary Software Integration

FR503 Big Scanning Size FAP20  Fingerprint Reader could be used widely for various Government Project like Customs or ID card Registration with cheap cost....
