FBI Certified TCS1 Biometric Fingerprint Sensor Module

Product Name: FBI Certified TCS1 Biometric Fingerprint Sensor Module model TLK1NC02

Features:

Supply Voltage: 3V~6V
Effective Pixel: 256*360
>15KV ESD protection
>1 million rubs (Wear-resistance)
Built-in hardware watchdog
Capacitive fingerprint module

APPLICATIONS
Attendance Management
Financial Field
Security Field
Public Security
IoT

BLOCK DIAGRAMS

 Communication Interface

TL256S-1 sensor communicates with MCU through a high-speed, full duplex and synchronous SPI interface.
TLK1NC02 module provides UART/USB interface for external devices.

Bezel Design

TLK1NC02 module is designed with metal bezel connected to the sensor. When sensor outputs RING signal to collect fingerprint image, it requires user’s finger press on sensor and the bezel simultaneously, otherwise the collection will fail.
In structure, the bezel could not connect DGND or GND, plastic casing is generally used to fix the fingerprint module.

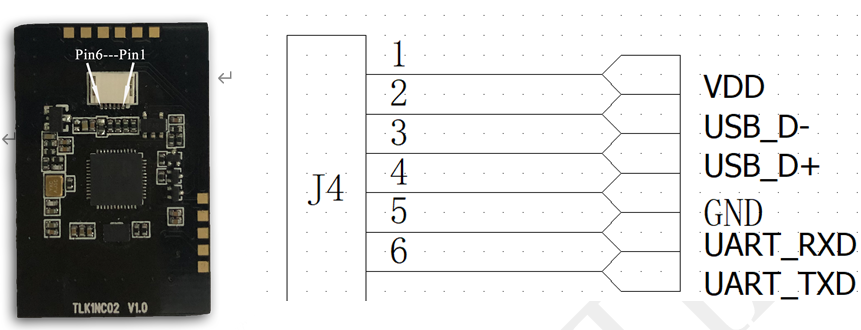

PIN CONFIGURATION

PIN CONFIGURATION

ESD OPTIMIZATION

The module conforms IEC61000-4-2 standard, passes ESD test of air +/- 15KV, touch +/-8KV. Users can further improve antistatic capability to apply to multiple applications by 2 optimizing schemes:

1. Host computer optimizing: connect an inductance (100uH) in series to power supply and a resistance(100Ω) in series to signal line.

2. Software optimizing: add watchdog (software/hardware) to the software.

Reference diagram:

STRUCTURE DIMENSIONS
