micro usb fingerprint reader
USB Fingerprinter Reader for Movable payment and Authorization USB Fingerprinter Reader for Movable payment and Authorization USB Fingerprinter Reader for Movable payment and Authorization

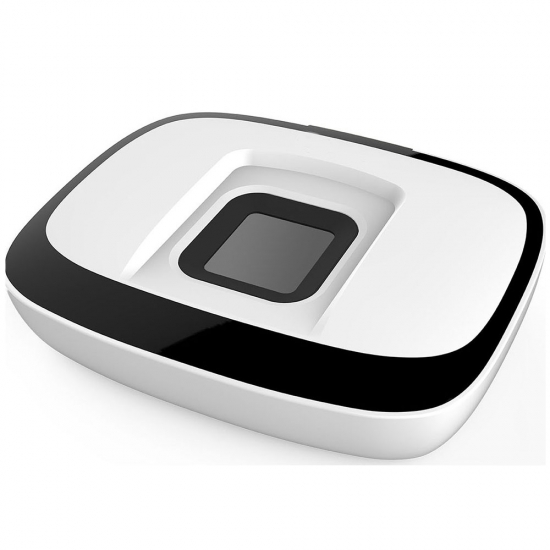

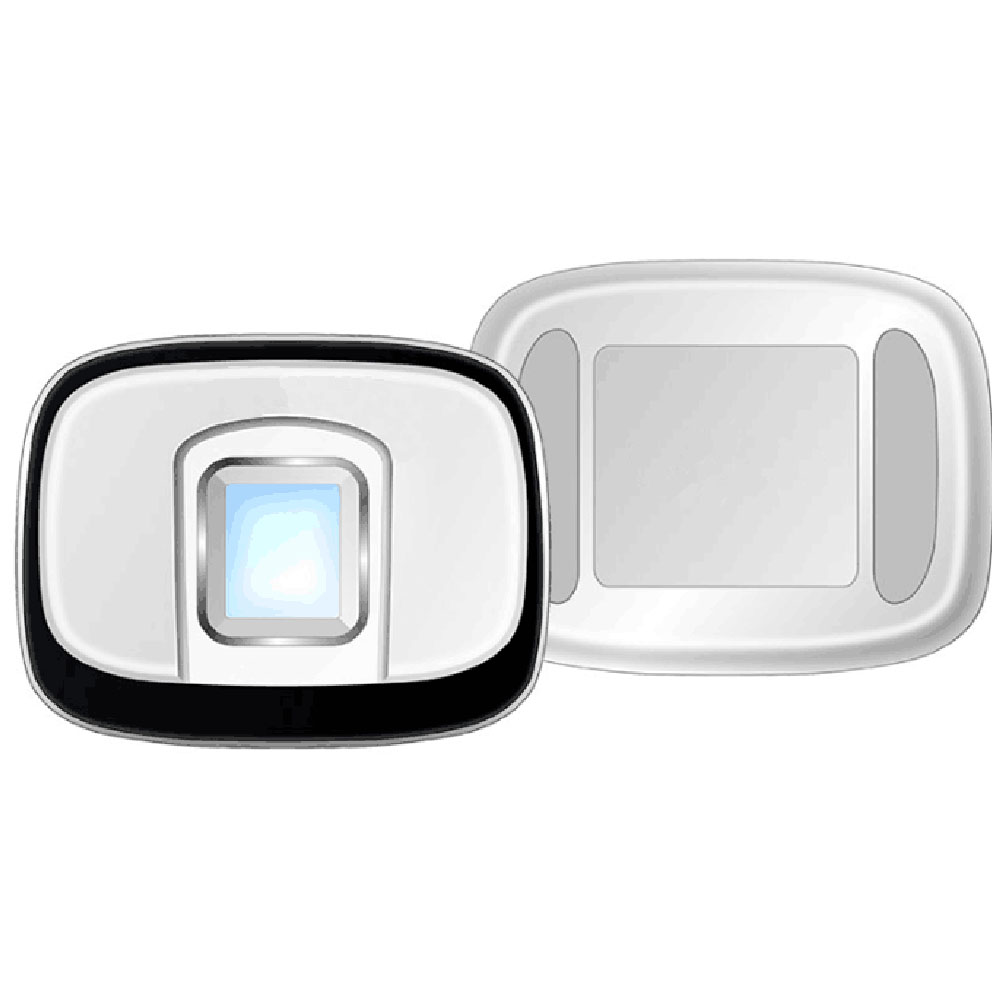

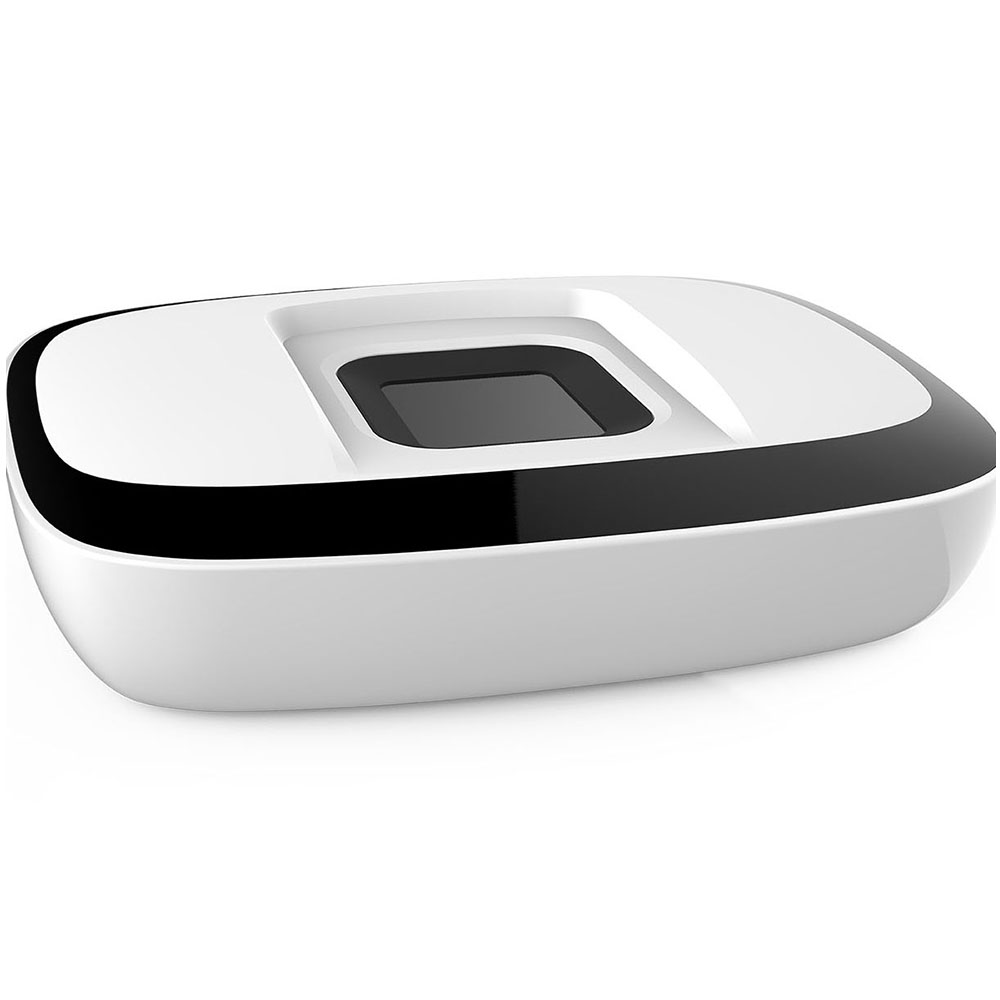

USB Fingerprinter Reader for Movable payment and Authorization

  • Model No. :

    SF102
  • Original Region :

    china
  • Mini Portable Biometric Micro Usb Fingerprint identification Reader model SF102 is with PHP SDK and APK design Supporting ,Support Andriod and Windows Device

contact now
Description

Product Name: USB Fingerprinter Reader for Movable payment and Authorization Model SF102

Technical Specification:


*FP capacity: 1,000Sensor size: 21mm x 19mm
Imaging area: 256*360 pixel
Array: 500 DPI
CPU: 120MHz、1M Bits Flash Memory、128KB SRAM
SENSOR    CMOS IMAGE,optical type
Big fingerprint capacity: 500-1000 fingerprints(3000pcs standard)
FAR: < 0.001 %(Security Level:3 )
FRR: < 0.1 %(Security Level:3
Match mode: 1:N identification and 1:1 verification
Fingerprint template: 600  Byte
Security level    Level 1 to Level 5 ,Factroy Default:3
Time of Response: Fingerprint pretreatment < 0.45 s
1:N match (full 3000 fingerprints)< 1.5s
Interface: USB2.0
USB connection    Connect with Other Device Directly
Power Supply Voltage: DC5V±10%
Current    Current: <120ma
Working Environment:
Working temperature :-20  ℃+ 70 ℃
Working Humidity:20%– 80%

Bank usb fingerprint reader



Good Handheld Feeling Material


Presidential fingerprint reader



Packing Information:

Acessories:

1pcs*USB fingerprint reader  1pcs* user manual

Box dimension: 11.5*16.5*5.5cm

Weight:0.2KGS/pcs

Packing info/carton: 50pcs/carton 11KGS

49.1*35.1*41.3cm



SF102 could be used widely for various industrials for security authentication.........


Presidential election biometric reader
