Android Binocular Palm Vein Payment Solution

Product Name:  Android Binocular Palm Vein Payment Solution model SF255

Main Features:

Built-in Wechat Palm Vein Scanner

5-inch IPS fully laminated touch screen, LCD display

Android OS

Working Distance for Palm: 5-20cm

RK3568, quad-core, main frequency 2.0GHz

NFC,Binocular facial recognition and Palm vein supported together

Output format support MJPEG and YUV2

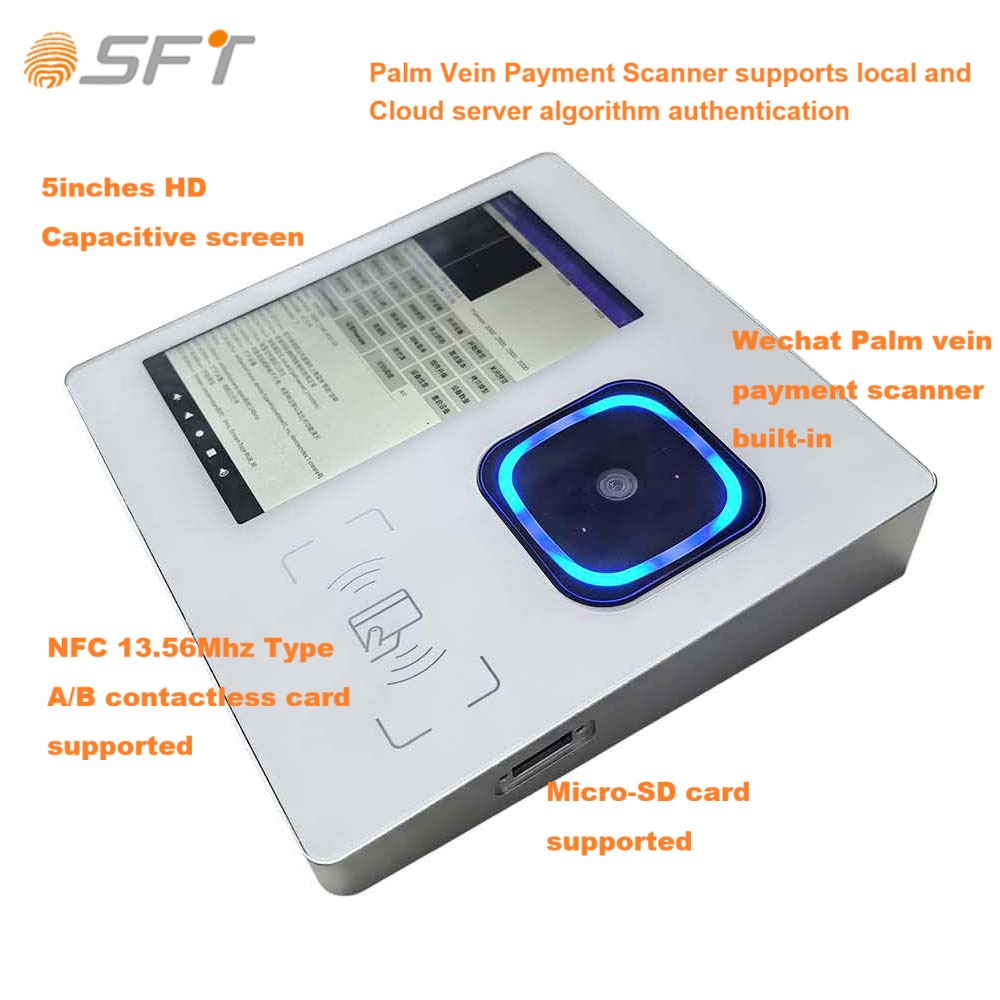

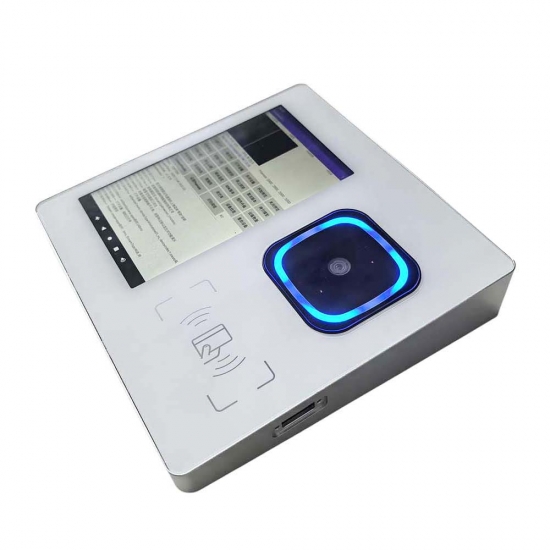

Binocular Palm Vein Payment Scanner  model SF255 full functional Display

SF255 is built in with Wechat Palm Vein payment Reader and contactless smart card Reader supports cloud server algorithm authentication which is widely used in retailing shops,restaurants etc

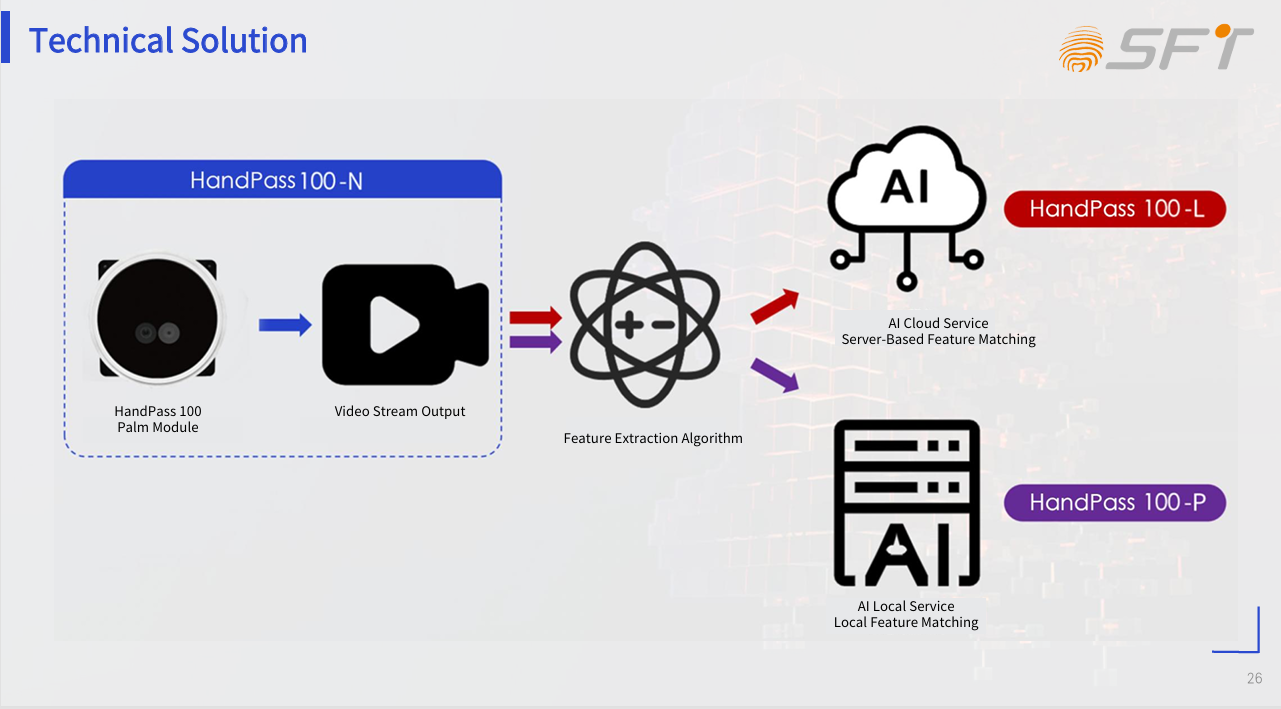

SF255  is prefectly working with  palm vein cloud server algorithm platform

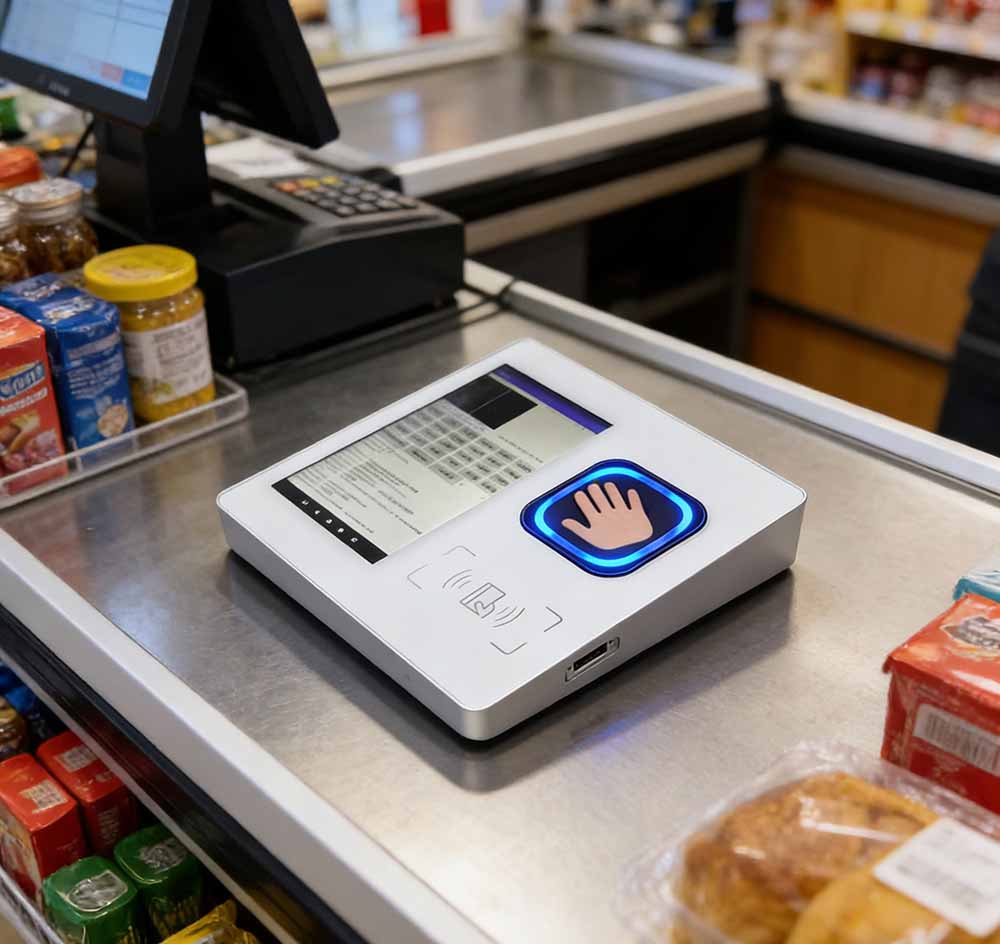

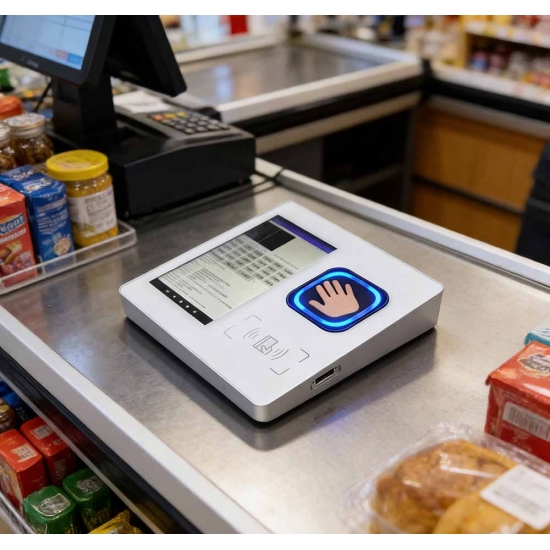

Palm Vein Payment Scanner is widely used in banks, retailing shops etc

Technical Specification:

Screen：IPS 5.0-inch LCD display screen; 720*1280pixels

CPU: RK3568, Quad core, main frequency 2.0GHz

OS: Android 11 OS upgradable

Internal storage: 2GB+16GB or 3GB+32GB for option

Camera: Bionuclar 2M pixels

Palm vein Algorithm: Support palm vein password verification

Facial recognition algorithm:Built-in or server based

Communication: WiFi 2.4G/Bluetooth 5.0/Ethernet/(optional 4G);

Interface USB Type C interface (USB 2.0 protocol); RS485

Working distance for palm: 5~20cm.

Module Parameters: Working distance for scanning code 3~20cm, support payment code and refund code.

Output format: MJPEG,YUV2

Operating voltage: 5V~12V

Supply current:  ≥1A

ID: Glass panel+aluminum alloy

Dimension: 183.4 * 88.4 * 19.2mm

Weight: 0.45KGS

Installation methods: Wall mounted installation/86 box installation/desktop; installation/embedded gate

Working Environment: Temperature －10℃～55℃

Humidity Relative humidity: 0% ~ 95%, no condensation.

Intensity of illumination: 0-50,000lux

Storage Environment: Temperature －40℃～85℃

Humidity Relative humidity: 10% ~ 95%, no condensation.

Normal working temperature rise Temperature rise of shell < 10℃ [on 3s and off 3s]

ESD level Contact discharge: 6 kV, air discharge ±10KV.

RE grade: Comply with GB 9254 CLASS B specification.

Working Life More than 3 years

Environmental Certification RoHS
