Handheld Cheap Android 12 Passive Barcode Scanner UHF Long Range RFID Data collector PDA

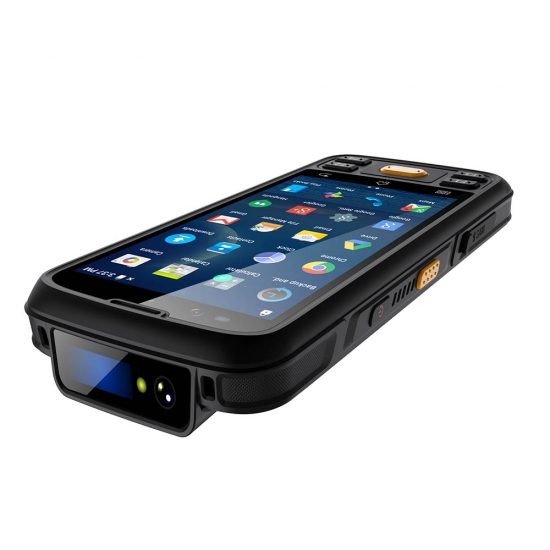

Product Name:Handheld Cheap Android 12 Passive Barcode Scanner UHF Long Range RFID Data collector PDA Model SF506S

Main Description:

 Newest Android 12 version

3GB+32GB or 4GB+64GB as option

NFC 13.56MHz Type A/B

UHF 865-868MHz; 920-925MHz or 902-928MHZ

National ID reading built-in for option

Fingerprint sensor for option

Big Battery Compacity up to 4000mAh

1.5m drop testing and IP65 sealing standard for industrial use

5.0Inches compact Gorilla handheld size IPS Touch Screen

SF506S Full functional Display

SF506 Android Rugged Water Meter Reading PDA is with  RFID sensor module performance

Air interface protocol: EPC global Gen2 / ISO18000-6C
Working frequency: 860~960MHz
Output power: 26dBm
Output power flatness: ±0.2dBm
Receiving sensitivity: <70dBm
Tag RSSI: Support
Working mode: single/group reading label
Working area: (The working frequency can be set as follows)
FCC 902 ~ 928MHz
ETSI 865 ~ 868MHz
China 920 ~ 925MHz
Custom frequency band (865 ~ 868MHz, 902 ~ 928MHz)

With 5.0inches compact screen size for easier hand holding

SF506 is with high 1D/2D Barcode scanning capacity

 SF506S UHF scanning smart mobile terminal adopts high-performance RFID UHF sensor module, which has fast scanning speed and identification
High discrimination rate, fast, accurate and effective identification of RFID tags.
The system is equipped with an eight-core high-performance Qualcomm Snapdragon processor, 3GB+32GB or 4GB RAM + 64GB ROM memory and storage,
Android 12 system, equipped with 5.0-inch high-definition, high-brightness, strong light visible Gorilla PS full-view HD+ screen,
It has powerful specifications and can handle a large amount of data collection and processing. Designed for harsh working environment with fully rugged
Three-proof process design, with IP65 protection level. Supports normal work under the environment of -20℃~60℃, while guaranteeing
It is not damaged when dropped from a height of 1.8 meters.
The rugged smart mobile terminal that adapts to the complex and harsh working environment and excellent system performance is both indoor and outdoor
An indispensable work partner for workers. This smart mobile terminal is suitable for logistics management, warehousing management (in and out of warehouse / inventory),
Material/drug management, clothing/steel factory management, cold chain system management, animal husbandry/pet management and other related industries.

5.0Inches cheap Handheld  4G Android RFID UHF inventory data collector PDA SF506S Features:

CPU:  Octa  Core ,2.0GHz,4G-LTE
OS: Android 12
RAM/ ROM: 3GB+32GB or 4GB+64GB optional
Dimension: 178*83*17mm(mm)
Touch Panel: 5.0Inches;  1280*720pixel,or 1440*720pixel  Multitouch Screen
Camera: Front: 5.0M front camera; 13M rear Camera for option
Battery: DC 3.7V/4000mAh up to 8hours continuous usage
Network:
CDMA 800
GSM 850/900/1800/1900
WCDMA B1/2/4/5/6/8/19
TD-SCDMA B34/39
TD-LTE B34/B38/39/40/41
FDD-LTE B1/2/3/4/5/7/8/9/12/17/18/19/20/26"
UHF module:
RFID sensor module performance
Air interface protocol: EPC global Gen2 / ISO18000-6C
Working frequency: 860~960MHz
Output power: 26dBm
Output power flatness: ±0.2dBm
Receiving sensitivity: <70dBm
Tag RSSI: Support
Working mode: single/group reading label
Working area: (The working frequency can be set as follows)
FCC 902 ~ 928MHz
ETSI 865 ~ 868MHz
China 920 ~ 925MHz
Custom frequency band (865 ~ 868MHz, 902 ~ 928MHz)
Application: Suitable for logistics management, warehousing management (in and out of warehouse / inventory),
Material/drug management, clothing/steel factory management, cold chain system management, animal husbandry/pet management and other related industries.
Wifi: 802.11b/g/n/ac
Bluetooth: Bluetooth5.0
GPS: Support
G-sensor: G sensor 3 axis
BEIDOU: Support
Compass: Support
MIC: Built-in microphone
Speaker: Built-in stereo speakers 8Ω/1.5W*2
USIM Card: Dual NANO USIM
TF: 1x miniSD scard  up to 128G
Working Temperature: -20℃~60℃
Storage Temperature: -30℃~70℃
Working Humidity: 5%~95%
USB: Type C; Support OTG
