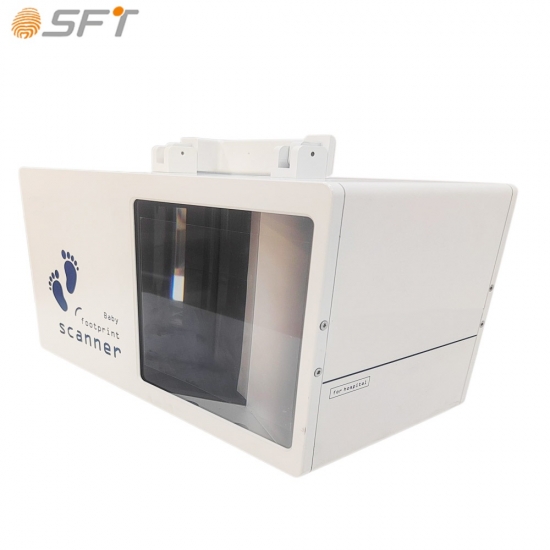

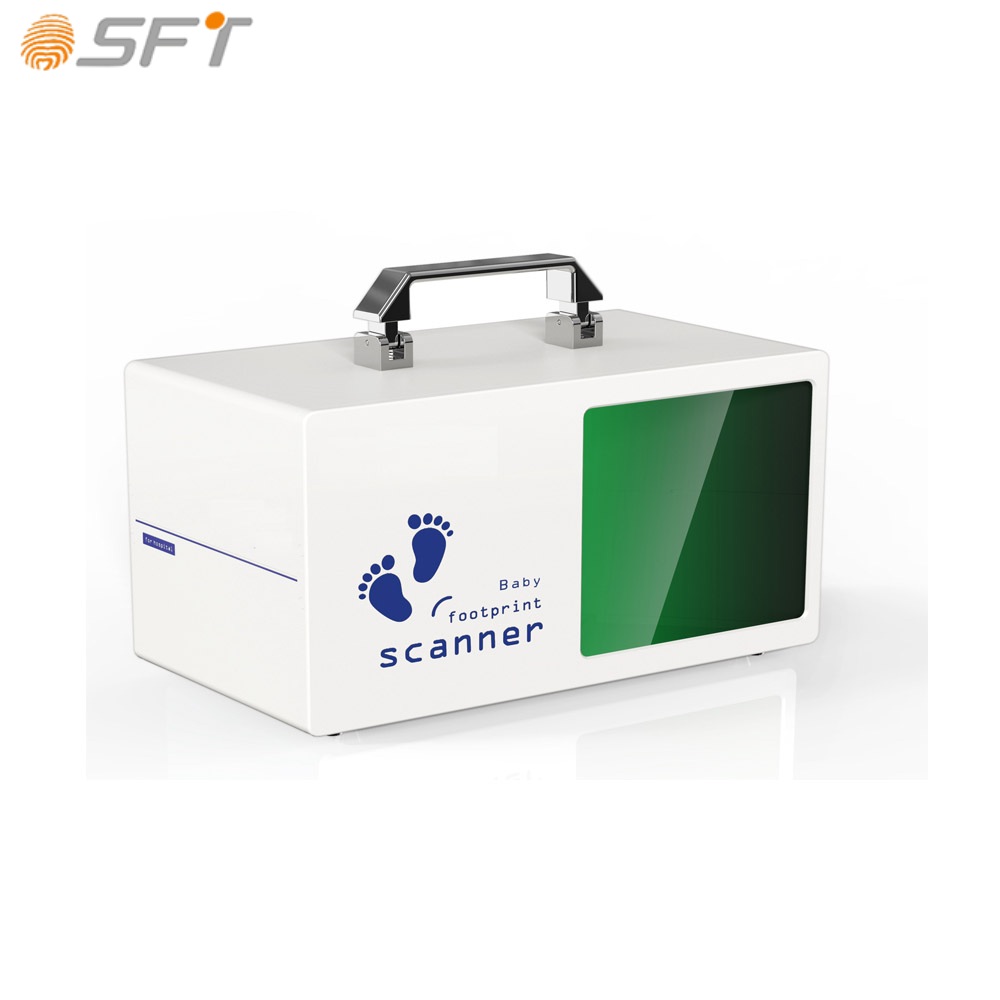

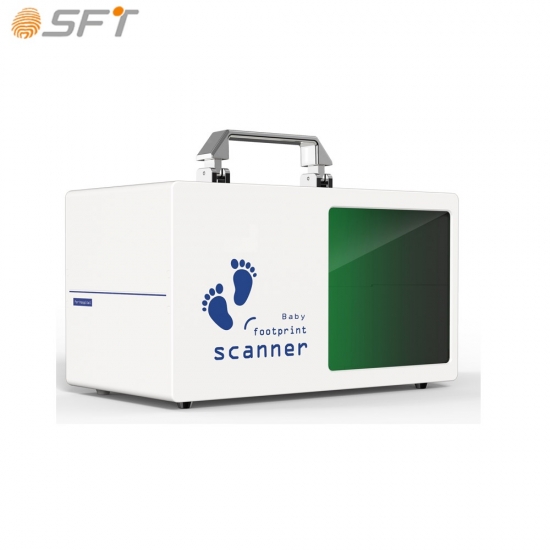

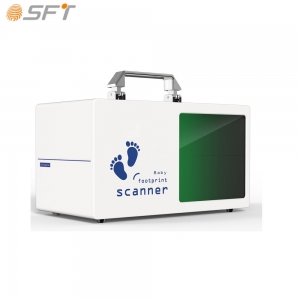

Handheld Biometric Baby ID Footprints Recognition Scanner

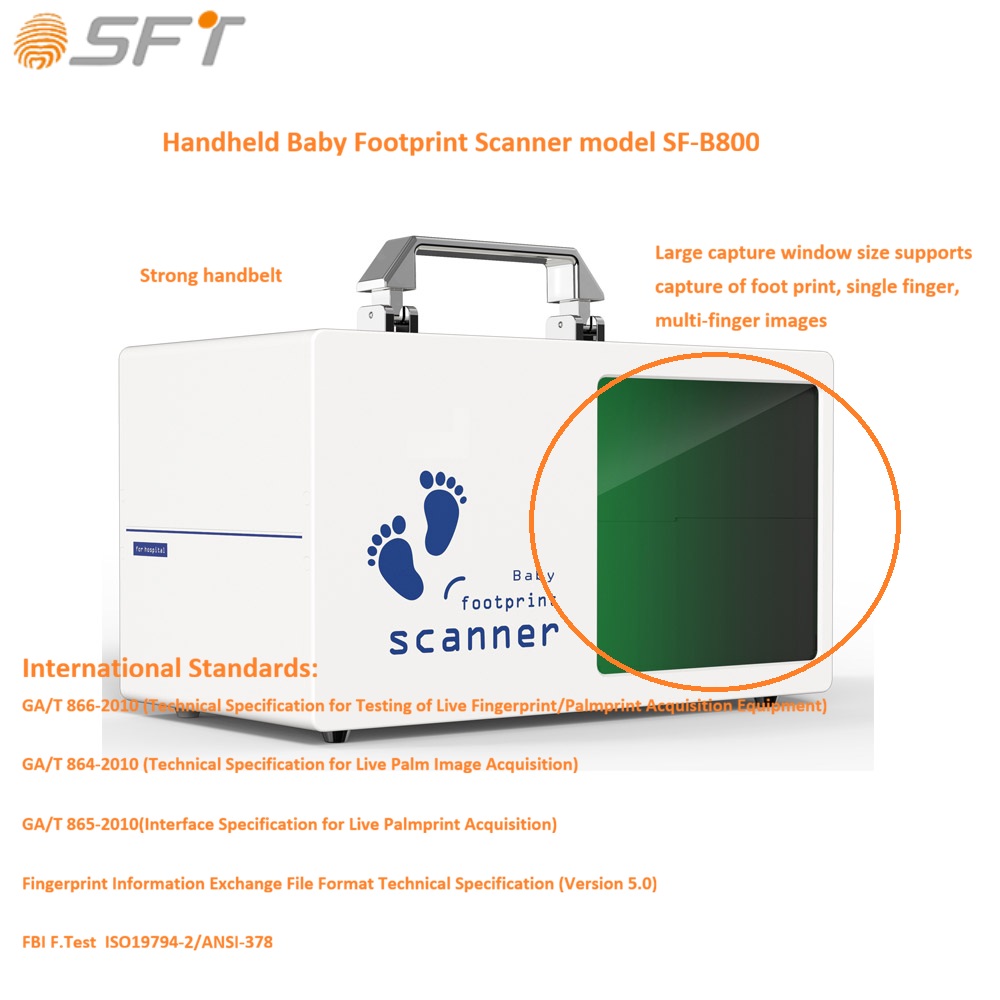

Product Name: Handheld Biometric Baby ID Footprints Recognition Scanner model SF-B800

Main Feature:

GA/T 866-2010 (Technical Specification for Testing of Live Fingerprint/Palmprint Acquisition Equipment)

GA/T 864-2010 (Technical Specification for Live Palm Image Acquisition)

GA/T 865-2010(Interface Specification for Live Palmprint Acquisition)

Fingerprint Information Exchange File Format Technical Specification (Version 5.0)

FBI F.Test  ISO19794-2/ANSI-378

Ultra-high image quality: Optical distortion-free imaging system that captures images with high fidelity for easy extraction

Capture function is powerful: capture window size is large, support the capture of foot print, single finger, multi-finger image

Fast acquisition speed: acquisition speed of at least 7 frames per second, support real-time pattern detection

Footprint and fingerprint processing algorithms: support for generating and comparing footprint and fingerprint features.

Adaptable: Applicable to various types of grain, automatically removes residual grain marks and halo effects, higher imaging quality

Durable and shock-resistant: sturdy shape, wear-resistant, shock-resistant and anti-vandalism, anti-static interference, long service life

Secondary development is simple: provide Windows and Android platform SDK development kit

Digital Intelligent Baby ID footprints Collection Scanner Functional Display

The Infant Recognition Scanner is built in with a high footprint Collection: using a 12.3-megapixel CMOS image sensor, the image collection can support 2750x2750 pixels, high resolution 500 dpi, clear images. Compared with traditional ink pad collection of footprints, it has the advantages of clear picture, simple operation, cleaner, ect

After footprints scanning, it would automatically upload to system

Baby's Right Footprints scanning

After Babys' two footprints scanning images upload successfully, the system would require a biometric bind with mother

 Mother's fingerprint would be scanned by a FBI certified fingerprint scanner

After mother's fingerprint template are captured, it would connect to system for the hospital system

Technical Specification:

International Standard:

GA/T 866-2010 (Technical Specification for Testing of Live Fingerprint/Palmprint Acquisition Equipment)

GA/T 864-2010 (Technical Specification for Live Palm Image Acquisition)

GA/T 865-2010(Interface Specification for Live Palmprint Acquisition)

Fingerprint Information Exchange File Format Technical Specification (Version 5.0)

FBI F.Test  ISO19794-2/ANSI-378

Electrical parameters:

Supply Voltage: 5.0V±5% USB provided

Operating Current: Typical <500mA

USB Connector: USB2.0

ESD: Contact: ±8KV; Air: ±15KV

Environmental parameters

operating temperature: -40℃-70℃

Storage temperature: -40℃-60℃

Operating humidity: <90% R.H (non-condensing)

Storage humidity: 20-93% R.H

Image parameter

Image resolution: 500 dpi

Capture window size: 150mmx150mm

Effective image size

Foot print: ≥139.7mm*139.7mm

polytope: ≥81.2mm*76.2mm

single finger: ≥32.5mm*32.5mm

Number of image pixels

foot print: ≥2750*2750pixels

polytope: ≥1600*1500pixels

single finger: ≥640*640 pixels

Acquisition time:

Foot print: ≥7 frames/sec (≤143ms)

single finger: ≥25 frames/sec (≤66ms)

Polytope: ≥10 frames/sec (≤100ms)

Image distortion: ≤1%

Image background gray unevenness: ≤10%

Grayscale: 8-bit, 256 levels

Gray-scale dynamic range: ≥180 class

Image background gray value: 225~255

Image blemish: No more than 10 pixels with a diameter of 2 in any 600*600 area

Image center deviation

Image center deviation from the center of the acquisition window: ≤15 pixels in both X and Y directions.
