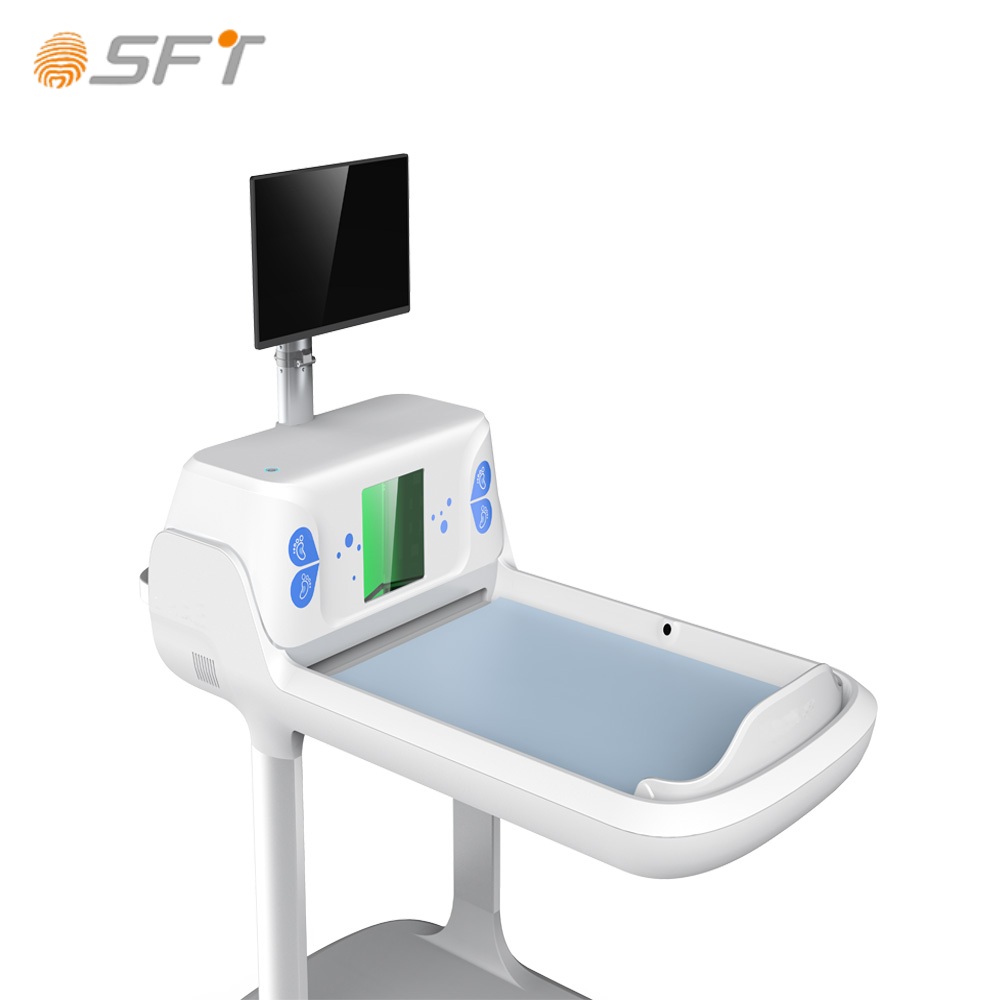

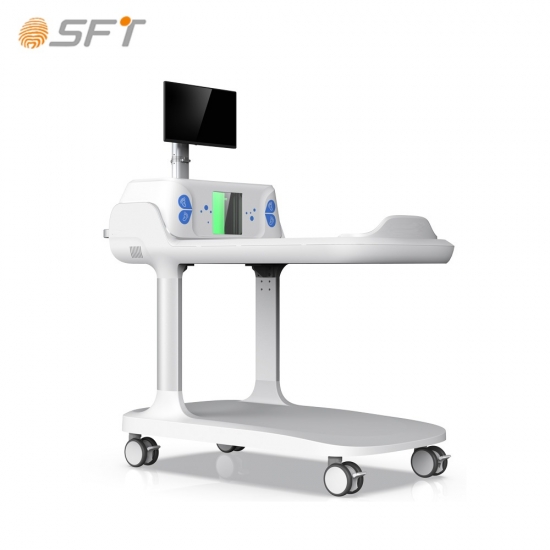

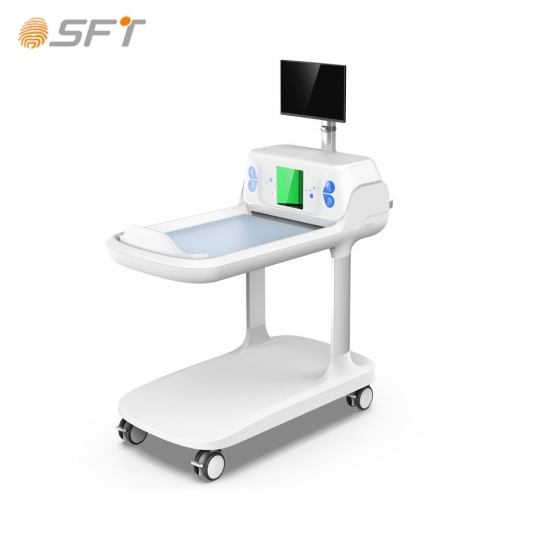

Product Name: Biometric Infant Newborn Babies ID Footprint Recognition System model SF-B900

Main Feature:

All in one, integrates the collection of infants' footprints, height, weight and body temperature

Windows Operating System: bringing efficient, stable and reliable experience

HD 1080p with Touch Screen: clear display and easy to operate

Footprint Collection: using a 12.3-megapixel CMOS image sensor, the image collection can support 2750x2750 pixels, high resolution 500 dpi, clear images. Compared with traditional ink pad collection of footprints, it has the advantages of clear picture, simple operation, cleaner, ect.

Mother’s Fingerprint Collection: 256x360pixels, high resolution 500 dpi, supports mother’s fingerprint comparison, safe, reliable and efficient

Height Collection: using single-point laser ranging, accuracy ±(2mm+D*0.05‰), resolution 1mm, hidden design, safe and  reliable

Temperature Measurement: infrared high-precision temperature sensor and non-contact temperature measurement module with advanced software algorithm, the error is within 0.3℃

Weight Measurement: strong anti-interference, high accuracy and stable performance

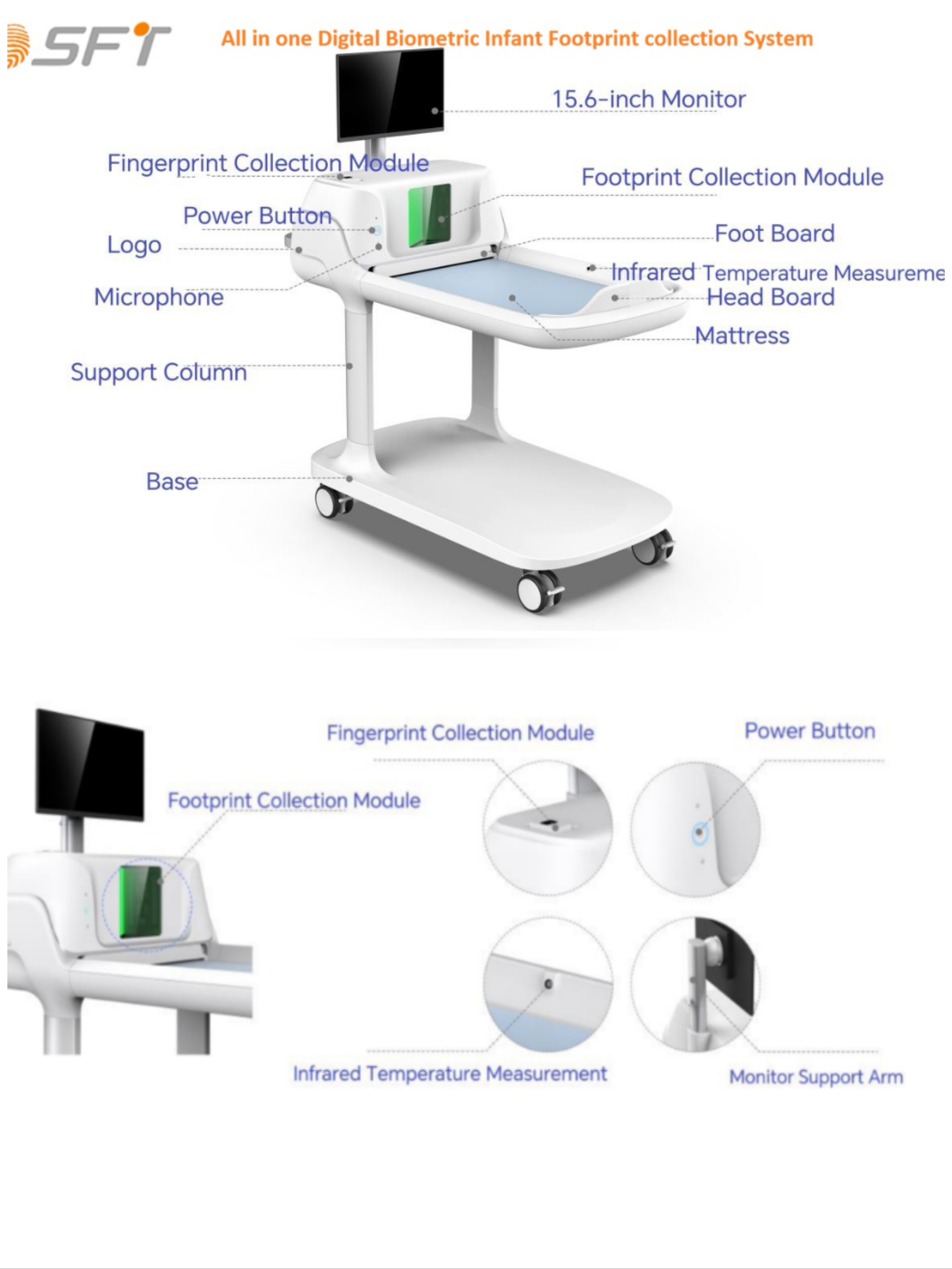

Digital Intelligent Baby ID footprints Collection Stroller System Functional Display

The Baby Footprints Recognition Collection Stroller is built in with a high footprint Collection: using a 12.3-megapixel CMOS image sensor, the image collection can support 2750x2750 pixels, high resolution 500 dpi, clear images. Compared with traditional ink pad collection of footprints, it has the advantages of clear picture, simple operation, cleaner, ect

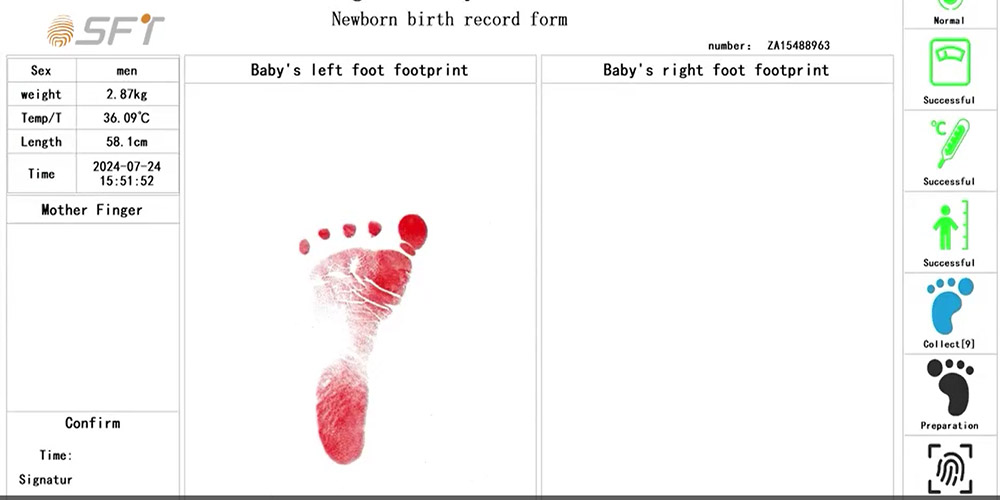

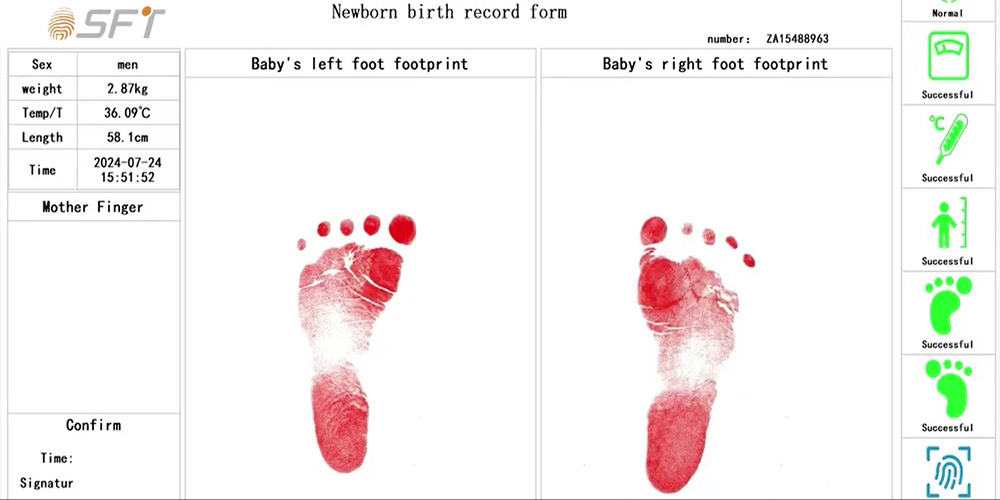

After footprints scanning, it would automatically upload to system

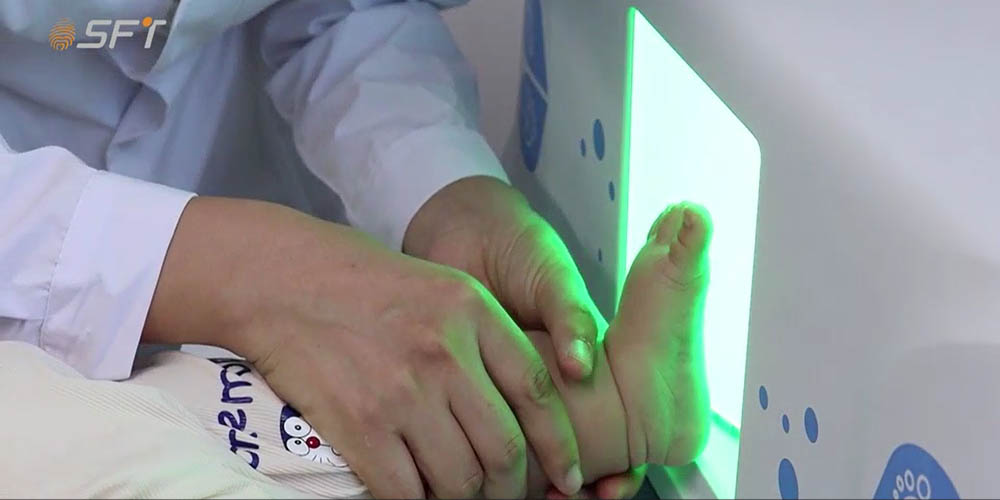

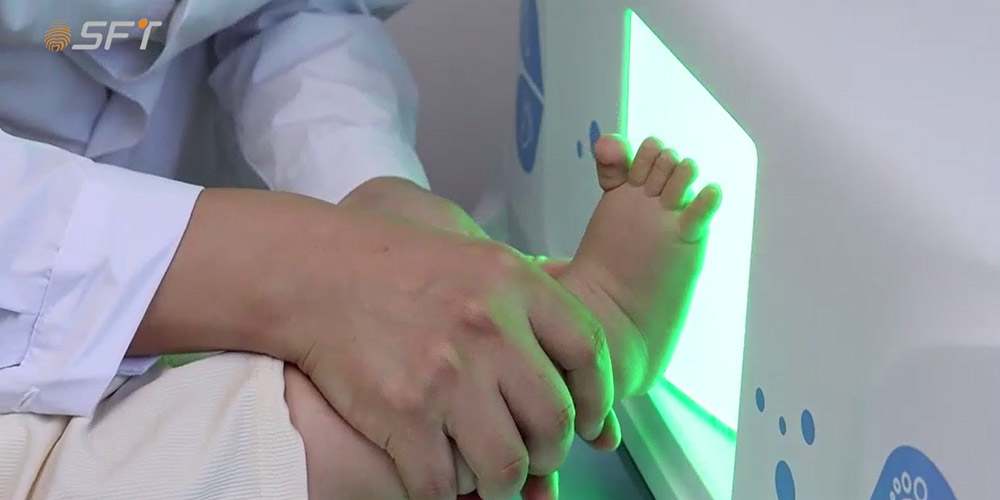

Baby's Right Footprints scanning

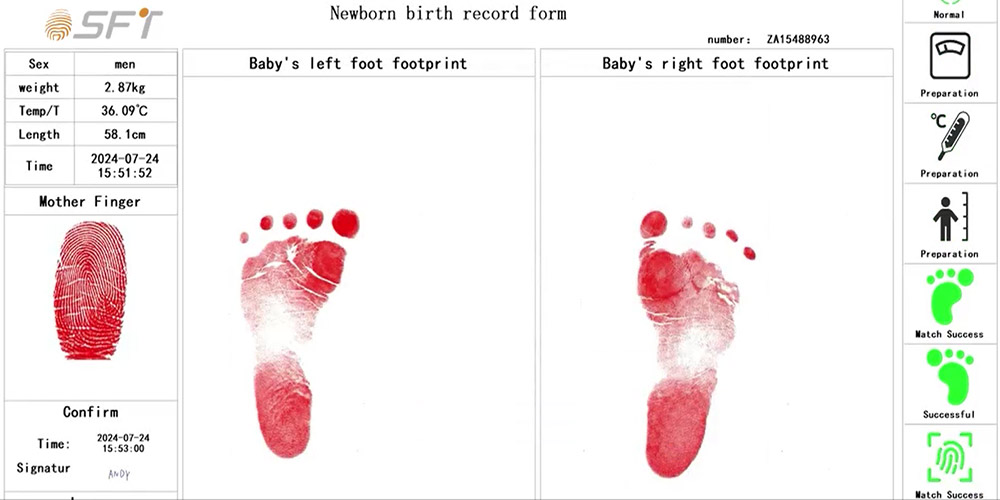

After Babys' two footprints scanning images upload successfully, the system would require a biometric bind with mother

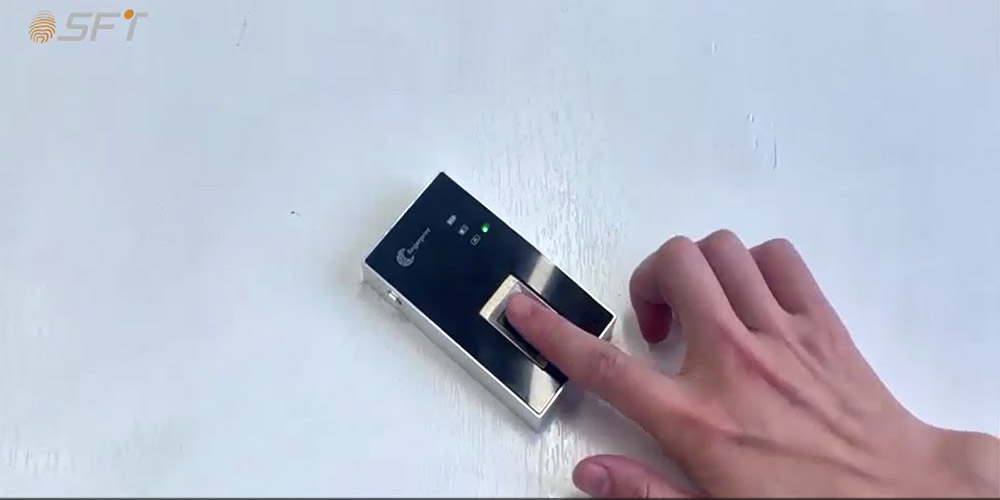

 Mother's fingerprint would be scanned by a FBI certified fingerprint scanner

After mother's fingerprint template are captured, it would connect to system for the hospital system

Technical Specification:

Main Engine

CPU: Intel Core i5

Internal Storage: RAM 8G DDR3+Hard Drive 128G SSD

Display: 15.6-inches 1920*1080P  50-60Hz

Button: 3Botton  （Power, Add, Subtract）

Menu: Touch Control

Brightness Adjustment

20-400cd/㎡PWM

Contrast Adjustment: Support

Context Mode Switch: 6 Modes ;Dynamic Contrast; Changes according to the display content scene

Touch Nature; Capacitive; Multi-touch; Support ten-point touch

Footprint Collection: Image Resolution: 500dpi

Image Pixels: ≥2750*2750pixels

Image Distortion: ≤1%

Gray Scale: 8-bit,256 Class

Grayscale Range: ≥180 Class

Mother's Fingerprint Collection Sensor: Semiconductor capacitive

Collection Method: Plane suppression

Image Pixels: 256*360pixel

Image Resolution: 500dpi

Gray Scale: 8-bit，256 level

FAR: <0.001%

FRR:<0.5%

Fingerprint Feature value: 512 Bytes

Fingerprint Qualification: Meet GA/T 1011-2012

Infrared Temperature Measurement Pixel: 32*32pixels

Sensor Refresh Rate: 8HZ

Accuracy: ±0.3℃

Range: 0~-40℃

Environment Temperature: -20~85℃

Height :Range 0.03-1M

Accuracy: ±(2mm+D*0.05‰)

Application Environment: In-door

Work Temperature: -10~40℃

Weight Measurement: 0-20kG Deviation; ±20g, within 10KG

Work Temperature: -10~40℃

Voice Control:  Dual Mic; Array noise reduction

Voice Recognition: Offline voice recognition

Infrared Temperature Measurement:   32*32pixels

Sensor Refresh Rate: 8HZ
