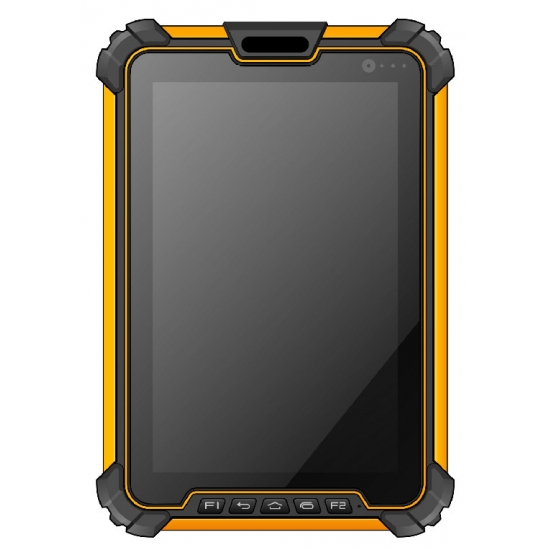

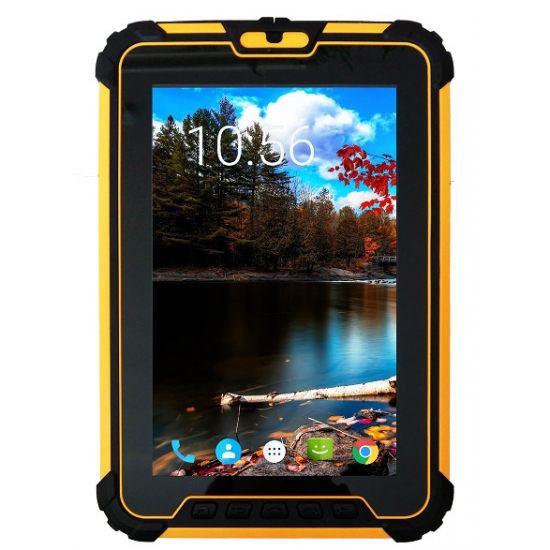

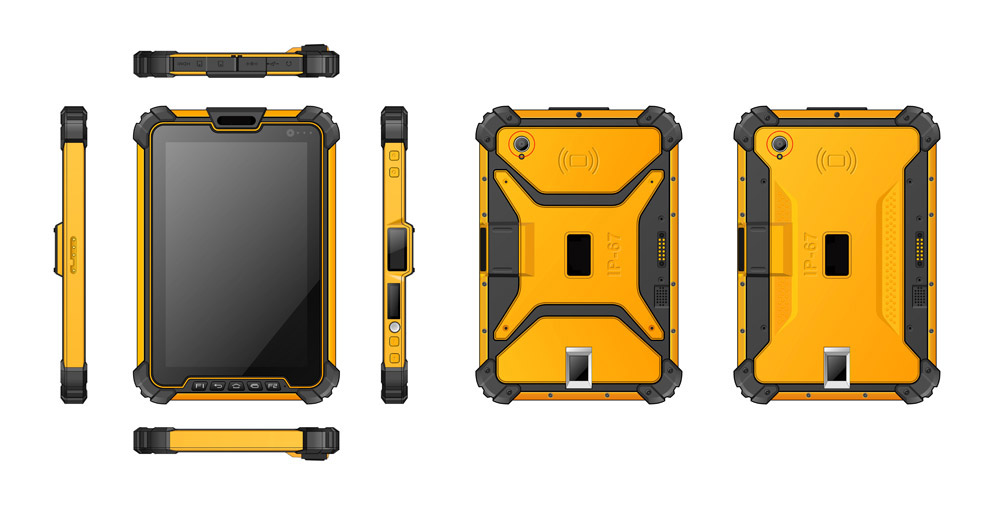

IP67 Rugged 8Inches FBI Certified NFC Biometric Fingerprint Tablet

  • Model No. :

  • IP67 Rugged  8Inches FBI Certified NFC Biometric Fingerprint Tablet PC model ST80 is operating on newest android 7.1 OS, IP67 Standard, Crossmatch FBI Certified Fingerprint module,GPS Accurancy less than 3M; 1D&2D barcode scanner optional
contact now

Product Name: IP67 Rugged  8Inches FBI Certified NFC Biometric Fingerprint Tablet Model ST80
4G Rugged NFC Biometric Tablet PC

Main Description:

Rugged IP67 standard
Lastest Android 7.1 OS
FBI Certified Fingerprint Reader
MSM8953, 8 core CPU, 1.6GHz
4GB+64GB Internal Memory
1D&2D laser Barcode Scanner
Strong 8000mAh Battery

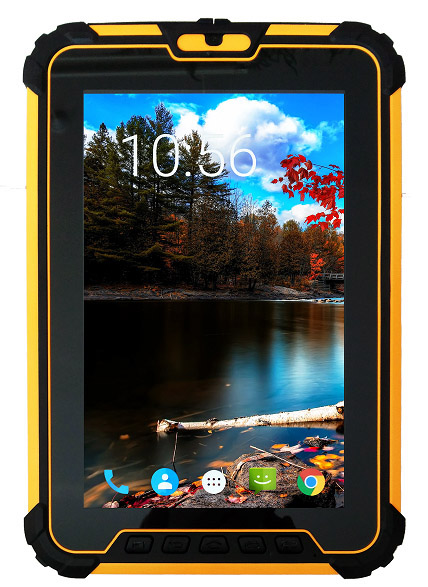

8 inch LCD screen, 1920x1200 IPS capacitive touch screenVisible under strong lightIP67 rugged fingerprint tablet

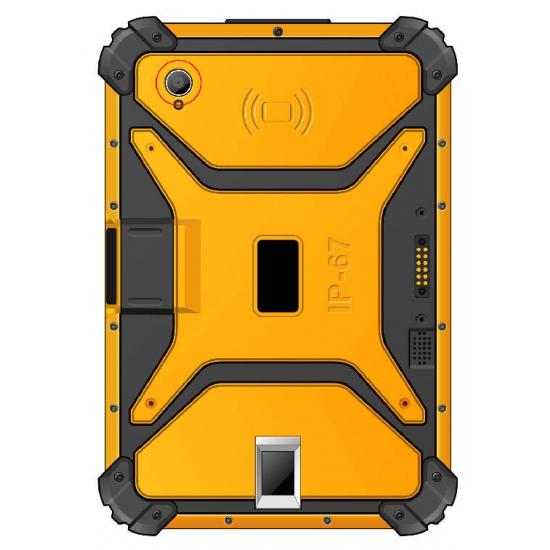

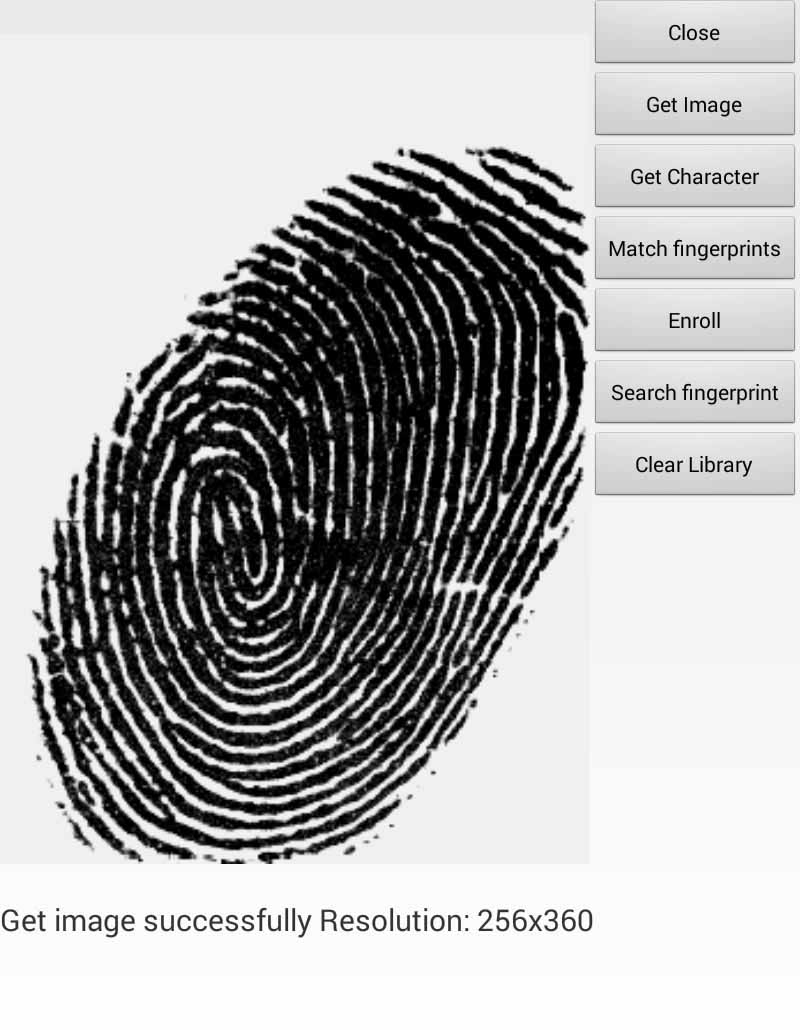

FBI Certified AuthenTec TCSIST Semiconductor Sensor

4G Biometix Finger Reader

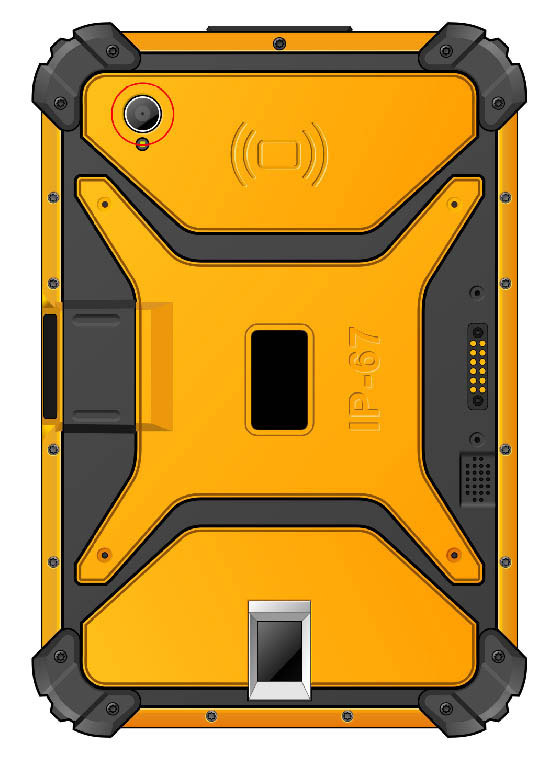

FBI certified fingerprint reader

FBI certified TABLET

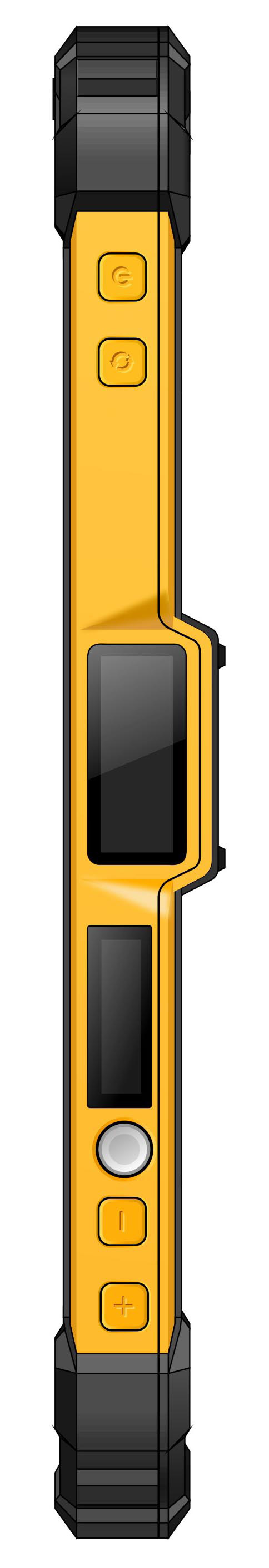

Multiply Ports Available for Wide Applications

4G fingeprint MID

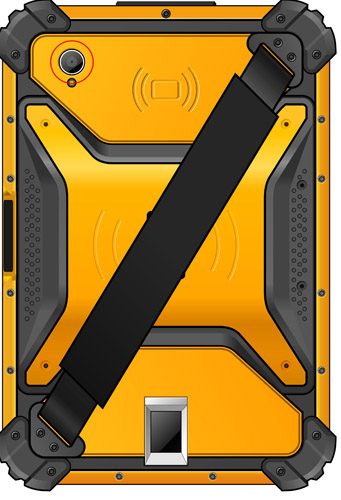

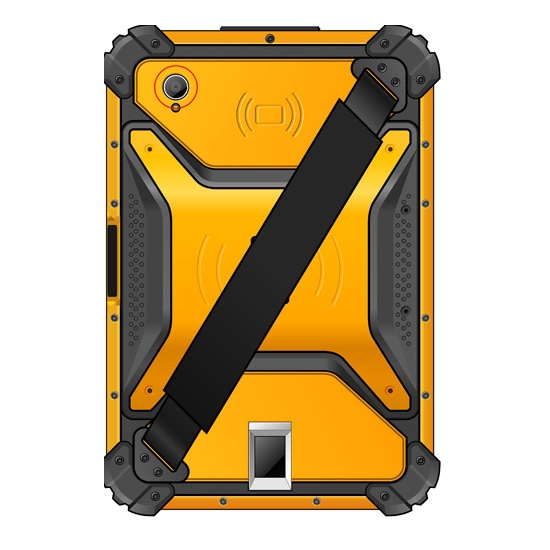

Dual Leather Belt for Easy Carrying

Rugged biometric tablet

User Friendly Designed 1D&2D Barcode Scanner for Data Collecting

Biometric fingerprint tablet pos


Operating System: Android 7.1
CPU: MSM8953, 8 core CPU, 1.6GHz
Internal Memory: 4GB+64GB
Extended Storage:Micro SD, Maximum 128G
USB port:5 pin MicroUSB; Support to connect U-disk/Mouse/Keyboard/OTG line
OTG:Through OTG can meet 100M network port, network card setup, PPPoE dial-up, web browsing. Support OTG extend RS232 serial port/485 serial port/RJ45 Serial port
External port: Charge port, headphone port
Protection Grade: Industrial Protection Grade    IP67
Drop Grade: Drop resistance from 1.2m
Wireless Communication
Bluetooth    Support 4.0
    High precise GPS: NE0-6M
    GPS+GOLNESS: NEO-M8N Accuracy 4m
WIFI: Support IEEE 802.11a/b/g/n/ac

Network:2G/3G/4G;CDMA 1X/EV BC0
GSM 850/900/1800
LTE B1/B3  B38/B39/B40/B41

Physical Parameters
Display Screen: 8 inch LCD screen, 1920x1200  IPS screen, capacitive touch screen
Keyboard:Android menu, Homepage, Return, Volume, Barcode, ON/OFF, Reset
Camera: 5 million pixels front camera, 13 million pixels rear camera with automatic focus and lighting function
Headset:3.5mm audio Interface, has MIC and Single loudspeaker
LED indicator light: Support (ordinary flicker, Call fast flicker, missed calls, charge indicator)
Flashlight Function: Support, can be used for emergency lighting
Googleplay store: Support
Gravity sensor: Support
Compass    Support
Gyroscopes Support
Acceleration sensors Support
Light and distance sensor Support
Vibrating motor Support
FM Support
Rechargeable Lithium Battery: 3.8V, 8000mAh
Standby: Standby current less than 10mA

Environmental Characteristics
Working Temperature: -10℃ ~ +50℃
Storage Temperature: -40℃ ~ +60℃
Humidity: 5%-95% relative humidity; no condensation
Optional function

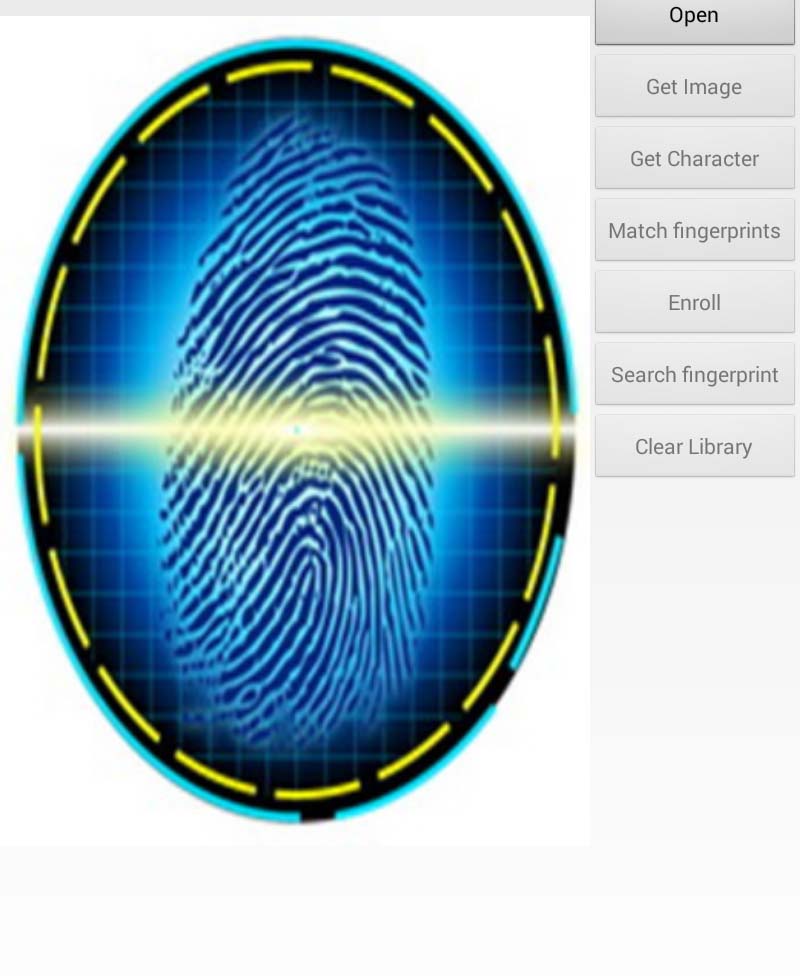

Fingerprint identification:Supports fingerprint entry, image collection, fingerprint recognition, fingerprint deletion etc.
Type: AuthenTec TCSIST semiconductor sensor
Acquisition window size: 24.5*19mm
Effective image size:15.5*18.5mm
Sensor type: capacitive
Image size: 256*360 pixel
Resolution: 500 DPI
Matching mode: contrast mode(1:1); search mode(1:N)
Far infrared meter reading     Working frequency 37.9K

Barcode Scanning    1D Laser Scanner Index(Internal):
Honeywell N4313 or Zebra EM1350
Scanning speed: 104 times/second+12 times/second (two way scanning)
Scanning distance: 2.5cm-114.3cm
Scanning angle: 47±3°(default) /35±3°(reduced code)
    2D Barcode Scanner Index(Internal):
Newlands EM3096
Honeywell N3680
Motorola SE4710
Motorola SE4750
Honeywell N6603
Identification ability: 1D, 2D, OCR
Scanning angle: rotate 360°, incline±50°, deflection ±50°
Field of View: Horizontal 36°, vertical 23°
Depth of field: 4cm-23.5cm
Environmental luminance: 0~100,000 LUX
RFID    HF RFID(Internal):
Support NFC/NXP, 13.56MHZ ISO14443A,B and ISO15693 protocol, reading distance 0-3cm
LF RFID: 134.2KHZ LF RFID, support ISO11784/5 protocol, support to read IC card(FDX/HDX)
        125KHZ LF RFID, support to read ID card
UHF RFID Internal
Ray links RLM060 or ThingMagic M6E-NANO
Reading distance: 0.2~0.3 m
Ceramic antenna: 0.3db(25*25*4mm)External
Supports EPC C1 GEN2/ ISO 18000-6C and ISO 18000-6B/6C protocol
Reading distance:1.8m/3.5m
Frenquency:865-868Mhz or 920-925Mhz
Ceramic antenna: 0.3db(25*25*4mm)
