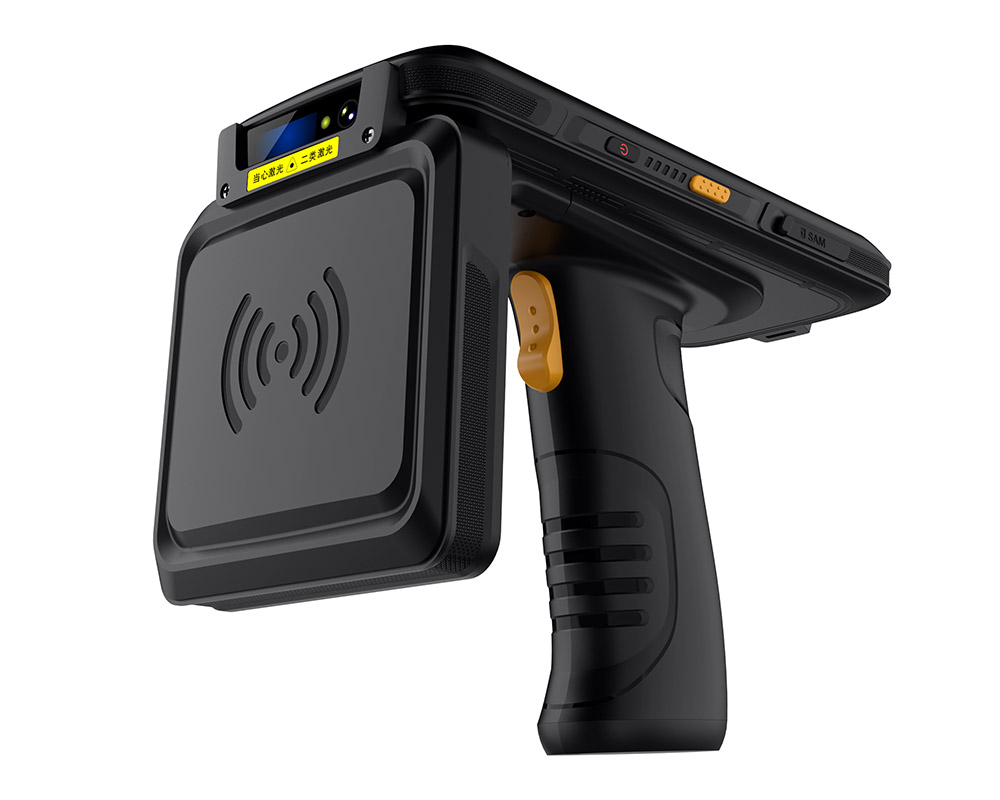

Handheld Long Distance Reading RFID Reader 6 meter 865-928mhz EPC Gen2 Infrared Meter Reading PDA

Product Name: Handheld Long Distance Reading RFID Reader 6 meter 865-928mhz EPC Gen2  Infrared Meter Reading PDA Model SF507

Main Description:

 Newest Android 12 version

3GB+32GB or 4GB+64GB as option

NFC 13.56MHz Type A/B

UHF 865-868MHz; 920-925MHz or 902-928MHZ

National ID reading built-in for option

Fingerprint sensor for option

Big Battery Compacity up to 4300mAh

1.5m drop testing and IP65 sealing standard for industrial use

5.0Inches or 5.72inches compact Touch Screen

SF507 Full functional Display

SF507 Android Rugged Water Meter Reading PDA is with  RFID sensor module performance

Air interface protocol: EPC global Gen2 / ISO18000-6C
Working frequency: 860~960MHz
Output power: 26dBm
Output power flatness: ±0.2dBm
Receiving sensitivity: <70dBm
Tag RSSI: Support
Working mode: single/group reading label
Working area: (The working frequency can be set as follows)
FCC 902 ~ 928MHz
ETSI 865 ~ 868MHz
China 920 ~ 925MHz
Custom frequency band (865 ~ 868MHz, 902 ~ 928MHz)

With 5.0inches compact screen size and fixed handle for easier hand holding

SF507 is with built in high sensitive 1D/2D laser barcode scanner for option

SF507 android all in one UHF reader PDA is built in with FBI certified fingerprint scanner to be used in Census etc

 SF507 Handheld Long Distance Reading RFID Reader 6 meter 865-928mhz EPC Gen2 Infrared Meter Reading PDA adopts high-performance RFID UHF sensor module, which has fast scanning speed and identification and also FBI certified fingerprint module to ensure high security.High discrimination rate, fast, accurate and effective identification of RFID tags.
The system is equipped with an eight-core high-performance Qualcomm Snapdragon processor, 3GB+32GB or 4GB RAM + 64GB ROM memory and storage,
Android 12 system, equipped with 5.0-inch high-definition, high-brightness, strong light visible Gorilla PS full-view HD+ screen,
It has powerful specifications and can handle a large amount of data collection and processing. Designed for harsh working environment with fully rugged
Three-proof process design, with IP65 protection level. Supports normal work under the environment of -20℃~60℃, while guaranteeing
It is not damaged when dropped from a height of 1.5 meters.
The rugged smart mobile terminal that adapts to the complex and harsh working environment and excellent system performance is both indoor and outdoor
An indispensable work partner for workers. This smart mobile terminal is suitable for logistics management, warehousing management (in and out of warehouse / inventory),
Material/drug management, clothing/steel factory management, cold chain system management, animal husbandry/pet management and other related industries.

Handheld Long Distance Reading RFID Reader 6 meter 865-928mhz EPC Gen2  Infrared Meter Reading PDA SF507 Features:

 CPU:  Octa  Core ,2.0GHz,4G-LTE
OS: Android 12
RAM/ ROM: 3GB+32GB or 4GB+64GB optional
Dimension: 178*83*17mm(mm)
Touch Panel: 5.0Inches;  1280*720pixel,or 1440*720pixel  Multitouch Screen
Camera: Front: 5.0M front camera; 13M rear Camera for option
Battery: DC 3.7V/4300mAh up to 8hours continuous usage
Network:
CDMA 800
GSM 850/900/1800/1900
WCDMA B1/2/4/5/6/8/19
TD-SCDMA B34/39
TD-LTE B34/B38/39/40/41
FDD-LTE B1/2/3/4/5/7/8/9/12/17/18/19/20/26"
UHF module:
RFID sensor module performance
Air interface protocol: EPC global Gen2 / ISO18000-6C
Working frequency: 860~960MHz
Output power: 26dBm
Output power flatness: ±0.2dBm
Receiving sensitivity: <70dBm
Tag RSSI: Support
Working mode: single/group reading label
Working area: (The working frequency can be set as follows)
FCC 902 ~ 928MHz
ETSI 865 ~ 868MHz
China 920 ~ 925MHz
Custom frequency band (865 ~ 868MHz, 902 ~ 928MHz)

Electric infrared meter reading function:Comply with DLT 645-2007（DLT 645-1997）communication technical specifications

Baud rate:1800 b/S（DLT645 is 1200 b/S）

Application: Suitable for logistics management, warehousing management (in and out of warehouse / inventory),
Material/drug management, clothing/steel factory management, cold chain system management, animal husbandry/pet management and other related industries.
Wifi: 802.11b/g/n/ac
Bluetooth: Bluetooth5.0
GPS: Support
G-sensor: G sensor 3 axis
BEIDOU: Support
Compass: Support
MIC: Built-in microphone
Speaker: Built-in stereo speakers 8Ω/1.5W*2
USIM Card: Dual NANO USIM
TF: 1x miniSD scard  up to 128G
Working Temperature: -20℃~60℃
Storage Temperature: -30℃~70℃
Working Humidity: 5%~95%
USB: Type C; Support OTG
