Handheld IP67 4G Android 2D Barcode Scanner RFID UHF Mobile computer Reader

Product Name:  Handheld IP67 4G Android 2D Barcode Scanner RFID UHF Mobile computer Reader Model SF509

Main Description:

 Newest Android 11 version

3GB+32GB or 4GB+64GB as option

NFC 13.56MHz Type A/B

UHF 865-868MHz; 920-925MHz or 902-928MHZ

 National ID reading built-in for option

Removable Big Battery Compacity up to 4420mAh; or quick charging 5200mAh battery

1.8m drop testing and IP65 or IP67 sealing standard for industrial use

5.5Inches IPS Touch Screen

SF509 Full functional Display

SF509 Android UHF mobile computer is with three different UHF configurations to choose from.

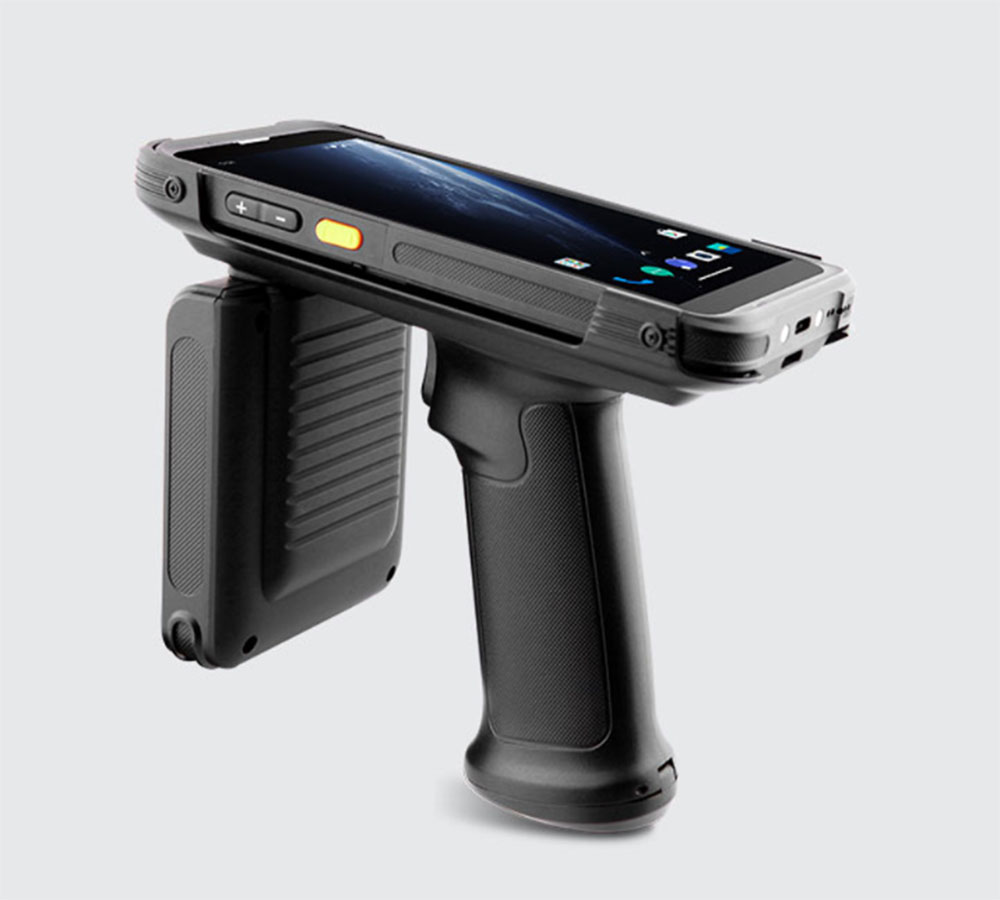

UHF1

Engine: CM710-1 module based on Impinj E710 or CM2000-1 module based on Impinj Indy R2000

Frequency: 865-868 MHz / 920-925 MHz / 902-928 MHz；

Protocol: EPC C1 GEN2 / ISO18000-6C

Antenna: Circular Polarized Antenna (4dBi)

Power: 1W (30dBm, +5 dBm to +30 dBm adjustable);2W Optional (33dBm, for Latin America, etc.)

Max Read Range: Impinj E710 chip:

28m (Impinj MR6 tag, size 70 x 15mm)

28m (Impinj M750 tag, size 70 x 15mm)

32m (Alien H3 Anti-Metal tag, size 130 x 42mm)

Impinj R2000 chip:

22m (Impinj MR6 tag, size 70 x 15mm)

24m (Impinj M750 tag, size 70 x 15mm)

30m (Alian H3 Anti-Metal tag, size 130 x 42mm)

Fastest Read Rate: 1150+ tags/sec

Communication Mode: Pin Connector

Ranges are measured in the open outdoors and low interference environment, and rate is measured in a laboratory low interference environment, they are affected by tags and environment.(This function is optional)

UHF 2

Engine: CM710-1 module based on Impinj E710 or CM2000-1 module based on Impinj Indy R2000

Frequency:865-868 MHz / 920-925 MHz / 902-928 MHz

Protocol:EPC C1 GEN2 / ISO18000-6C

Antenna:Circular Polarized Antenna (3 dBi)

Power:1W (30 dBm, support +5~+30 dBm adjustable);2W Optional (33 dBm, for Latin America, etc.)

Max Read Range Impinj E710 chip:

30m (Impinj MR6 tag, size 70 x 15mm)

28m (Impinj M750 tag, size 70 x 15mm)

31m (Alien H3 Anti-Metal tag, size 130 x 42mm)

Impinj R2000 chip:

25m (Impinj MR6 tag, size 70 x 15mm)

26m (Impinj M750 tag, size 70 x 15mm)

25m (Alian H3 Anti-Metal tag, size 130 x 42mm)

Fastest Read Rate 1150+ tags/sec

Communication Mode Pin Connector / Bluetooth

SF509 add R6 UHF Sled

Ranges are measured in the open outdoors and low interference environment, and rate is measured in a laboratory low interference environment, they are affected by tags and environment.(This function is optional)

UHF 3 (UHF built in)

Engine:CM-5N module based on Impinj E510

Frequency:865-868 MHz / 920-925 MHz / 902-928 MHz

Protocol:EPC C1 GEN2 / ISO18000-6C

Antenna:Circular polarization (-5 dBi)

Power: 1 W (+5 dBm to +30 dBm adjustable)

Max Read Range: 2.4m (Impinj MR6 tag, size 70 x 15mm)

2.6m (Impinj M750 tag, size 70 x 15mm)

2.7m (Alien H3 Anti-Metal tag, size 130 x 42mm)

Ranges are measured in the open outdoors and low interference environment, and rate is measured in a laboratory low interference environment, they are affected by tags and environment.Optional function only on Android 11; This version does not support pistol

SF509 is optional to be built in with Barcode Scanning

2D Scanner:Zebra: SE4710 / SE2100; Honeywell: N6603; E3200; IA166S; CM60

1D Symbologies:UPC/EAN, Code128, Code39, Code93, Code11, Interleaved 2 of 5, Discrete 2 of 5, Chinese 2 of 5, Codabar, MSI, RSS, etc.

2D Symbologies:PDF417, MicroPDF417, Composite, RSS, TLC-39, Datamatrix, QR code, Micro QR code, Aztec, MaxiCode; Postal Codes: US PostNet, US Planet, UK Postal, Australian Postal, Japan Postal, Dutch Postal (KIX),etc.

SF509 UHF scanning smart mobile terminal adopts high-performance RFID UHF sensor module, which has fast scanning speed and identification
High discrimination rate, fast, accurate and effective identification of RFID tags.
The system is equipped with an eight-core high-performance Qualcomm Snapdragon processor, 3GB+32GB or 4GB RAM + 64GB ROM memory and storage,
Android 11 system, equipped with 5.5-inch high-definition touch screen,
It has powerful specifications and can handle a large amount of data collection and processing. Designed for harsh working environment with fully rugged
Three-proof process design, with IP67 protection level. Supports normal work under the environment of -20℃~60℃, while guaranteeing
It is not damaged when dropped from a height of 1.8 meters.
The rugged smart mobile terminal that adapts to the complex and harsh working environment and excellent system performance is both indoor and outdoor
An indispensable work partner for workers. This smart mobile terminal is suitable for logistics management, warehousing management (in and out of warehouse / inventory),
Material/drug management, clothing/steel factory management, cold chain system management, animal husbandry/pet management and other related industries.

5.5Inches Handheld Rugged 4G Android RFID UHF  Mobile Computer Model SF509 Features:

CPU:  Octa  Core ,2.0GHz,4G-LTE
OS: Android 11
RAM/ ROM: 3GB+32GB or 4GB+64GB optional
Dimension: 160.0*76.0*15.5mm
Touch Panel: 5.5Inches;  720*1440pixel,IPS touch screen
Camera: Front: 5.0M front camera; 13M rear Camera
Battery: DC 3.7V/4420mAh/5300mAh up to 12hours continuous usage
Network:
CDMA 800
GSM 850/900/1800/1900
WCDMA B1/2/4/5/6/8/19
TD-SCDMA B34/39
TD-LTE B34/B38/39/40/41
FDD-LTE B1/2/3/4/5/7/8/9/12/17/18/19/20/26"
UHF module:
RFID sensor module performance
Air interface protocol: EPC global Gen2 / ISO18000-6C
Working frequency: 860~960MHz
Output power: 26dBm
Output power flatness: ±0.2dBm
Receiving sensitivity: <70dBm
Tag RSSI: Support
Working mode: single/group reading label
Working area: (The working frequency can be set as follows)
FCC 902 ~ 928MHz
ETSI 865 ~ 868MHz
China 920 ~ 925MHz
Custom frequency band (865 ~ 868MHz, 902 ~ 928MHz)
Application: Suitable for logistics management, warehousing management (in and out of warehouse / inventory),
Material/drug management, clothing/steel factory management, cold chain system management, animal husbandry/pet management and other related industries.
Wifi: 802.11b/g/n/ac
Bluetooth: Bluetooth5.0
GPS: Support
G-sensor: G sensor 3 axis
BEIDOU: Support
Compass: Support
MIC: Built-in microphone
Speaker: Built-in stereo speakers 8Ω/1.5W*2
USIM Card: Dual NANO USIM
TF: 1x miniSD scard  up to 128G
Working Temperature: -20℃~60℃
Storage Temperature: -30℃~70℃
Working Humidity: 5%~95%
USB: Type C; Support OTG and quick charging
