UHF GEN2 RFID Reader
Wearable Bluetooth UHF RFID GEN2 Reader Wristband Wearable Bluetooth UHF RFID GEN2 Reader Wristband Wearable Bluetooth UHF RFID GEN2 Reader Wristband

Wearable Bluetooth UHF RFID GEN2 Reader Wristband

  • Model No. :

    SF-U6
  • Wearable Bluetooth UHF RFID GEN2 Reader Wristband Model SF-U6 widely used in logistics,warehouse etc

contact now
Description

Product Name: Wearable Bluetooth UHF RFID GEN2 Reader Wristband model SF-U6



Main Features:

Wristband design for higher comfort;

Connection by Bluetooth

Built-in APP client application software

Fast reading and writing speed, easy to operate

Fast communication speed and strong anti-interference ability;



 Large-capacity battery support long working time

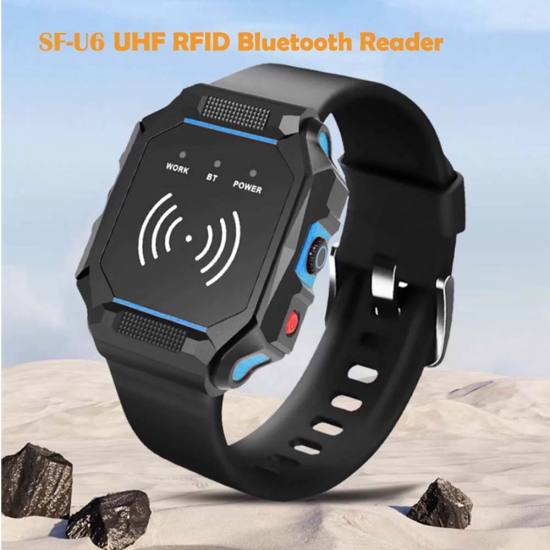

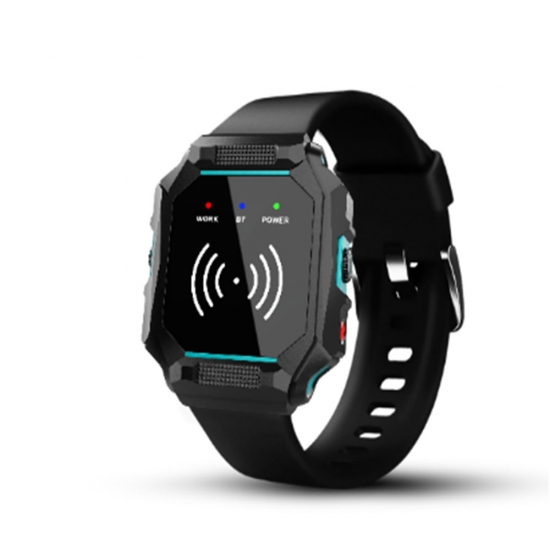

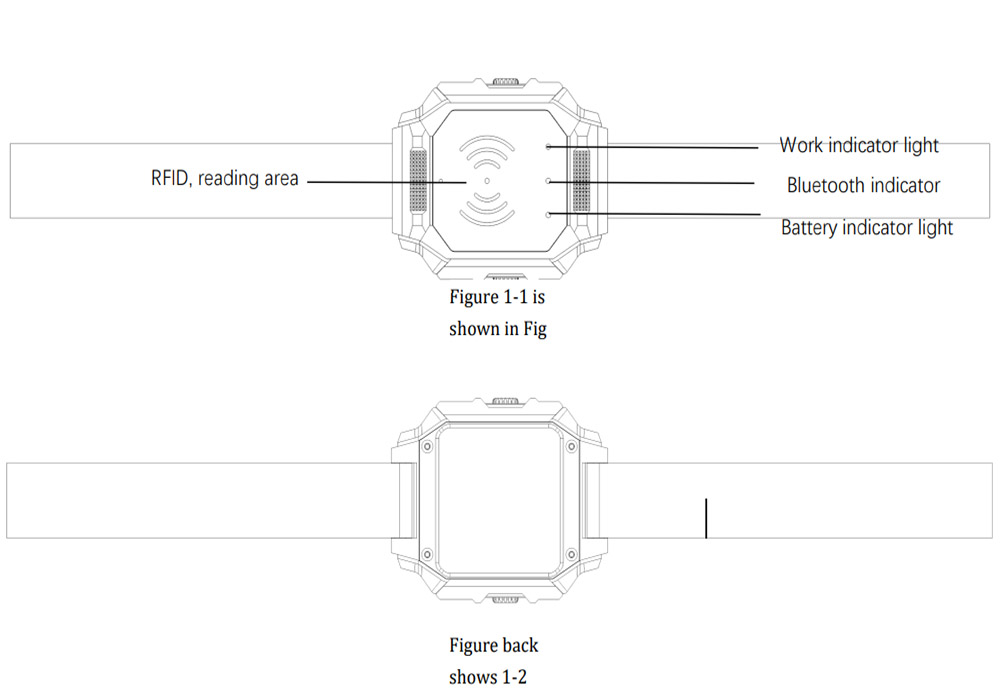

SF-U6 Gen2 RFID UHF Reader full functional display

Bluetooth UHF Reader



iOS UHF Scanner

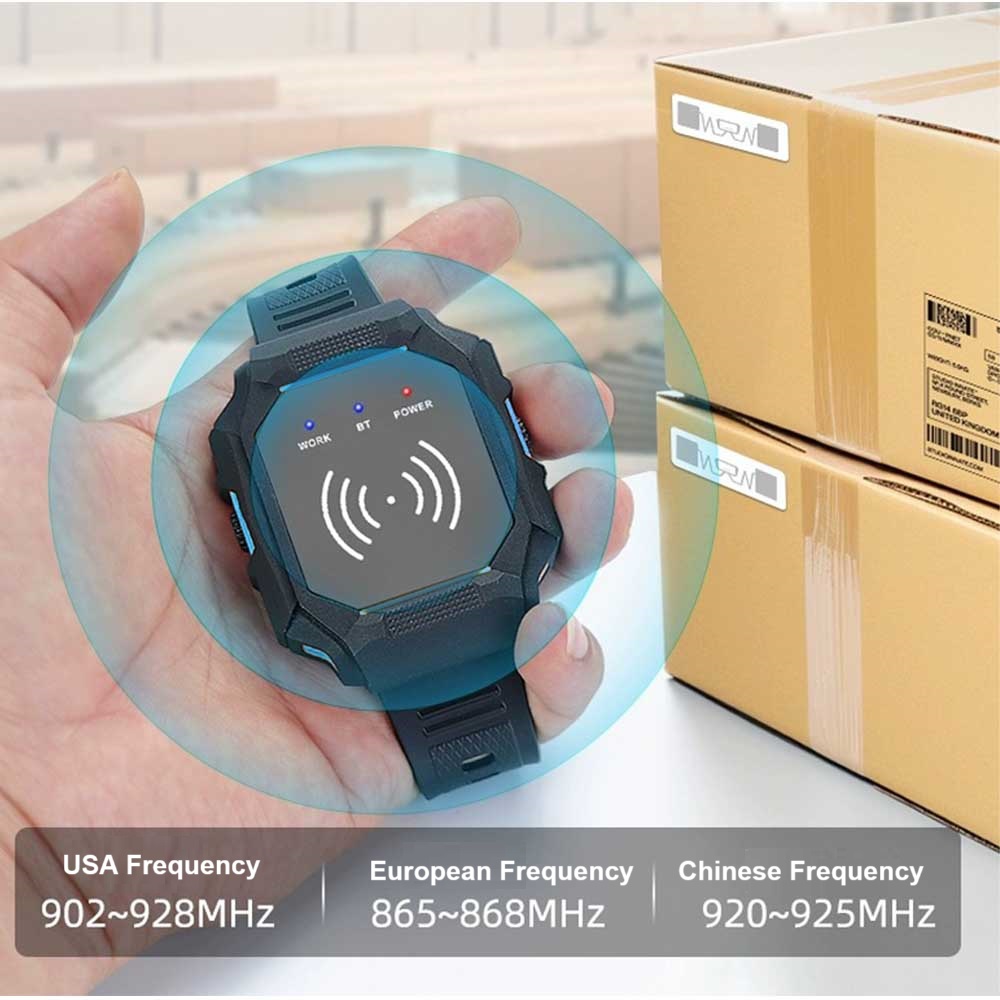

SF-U6 supports RF frequency ranging from 902MHz-928MHz (US) or 865MHz-868MHz (EU)



902MHZ-928MHZ UHF Reader

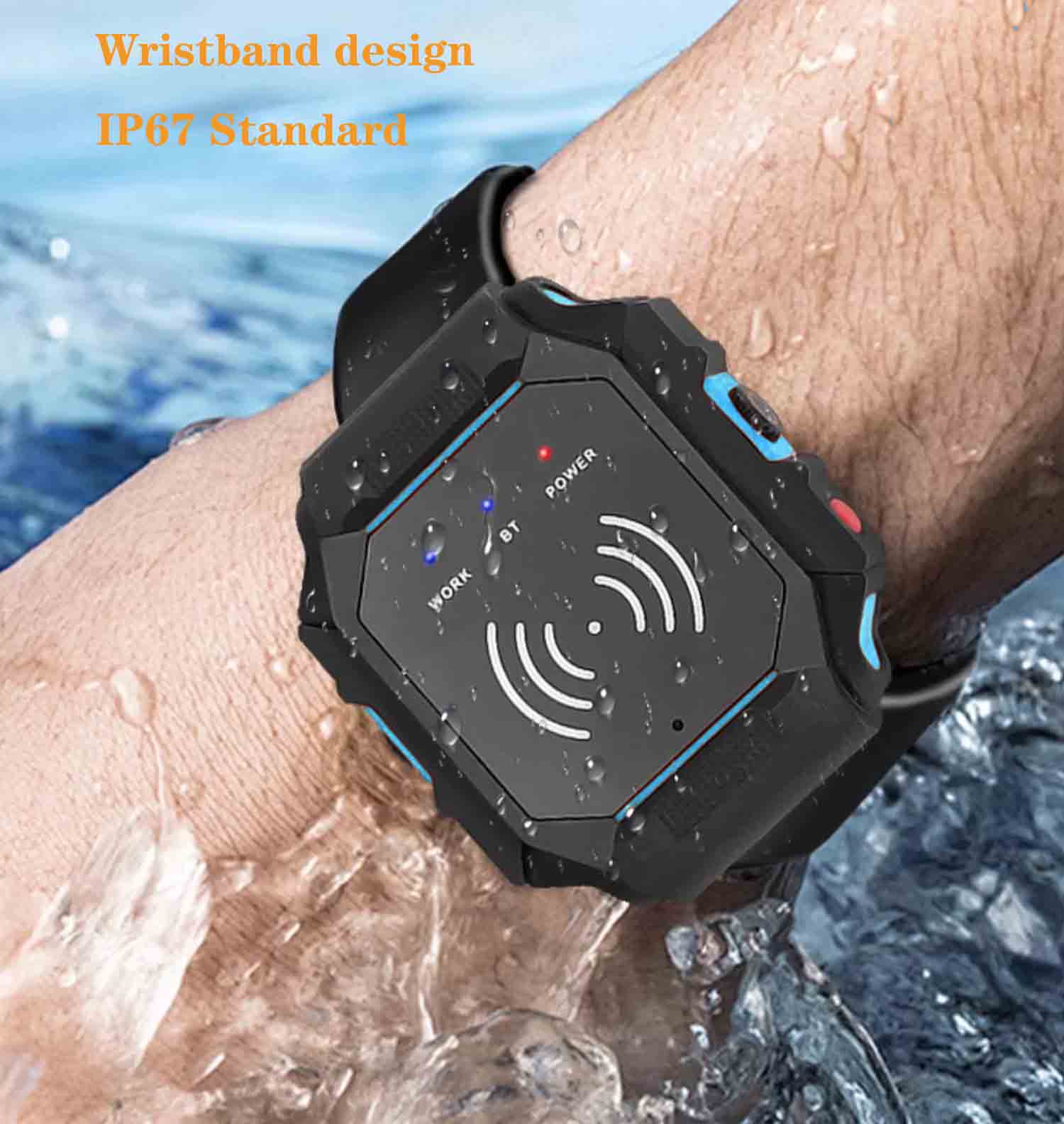

SF-U6 is IP67 designed for outdoor industrial usage



Industrial Wireless RFID Reader

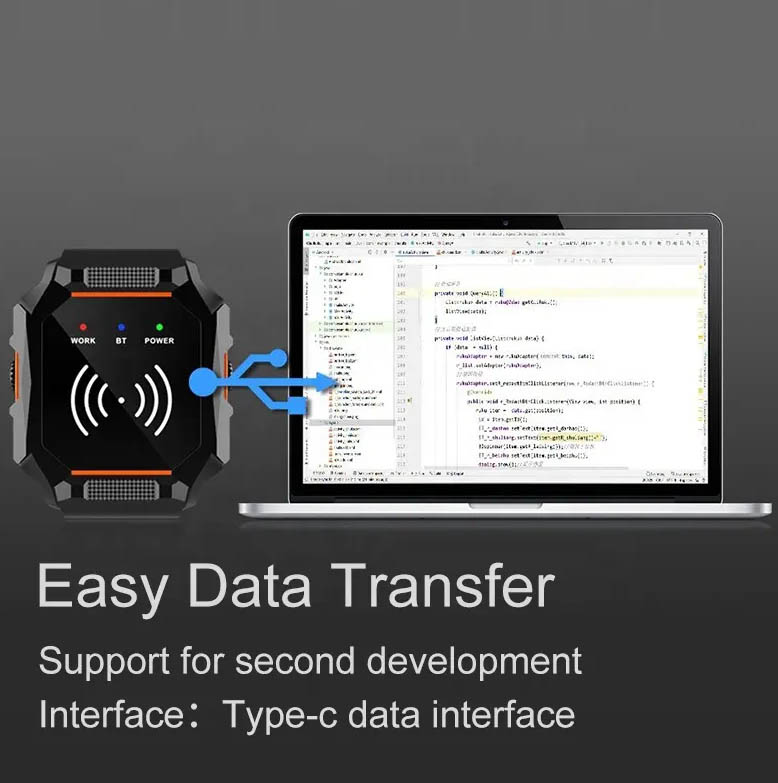

SF-U6 is using type C port for fast data transferring and easy software integration



How Bluetooth RFID Scanner data transfer

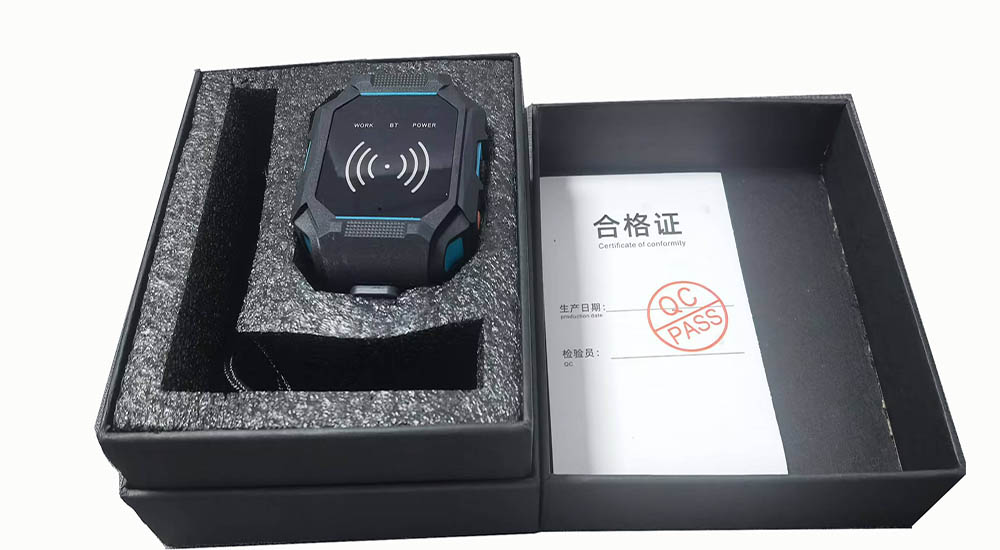

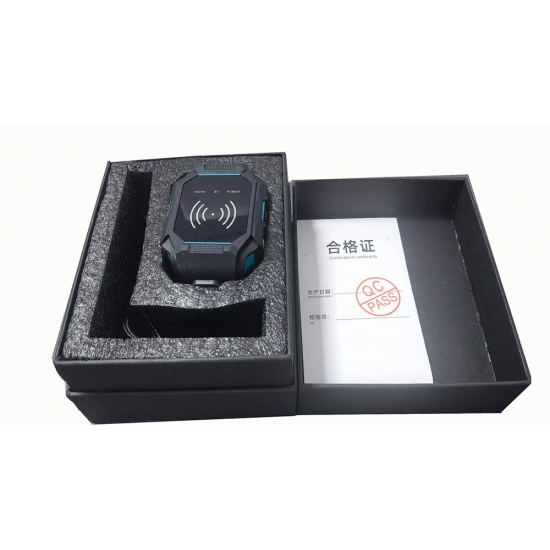

Accessories

iOS RFID Reader



Technical Specification

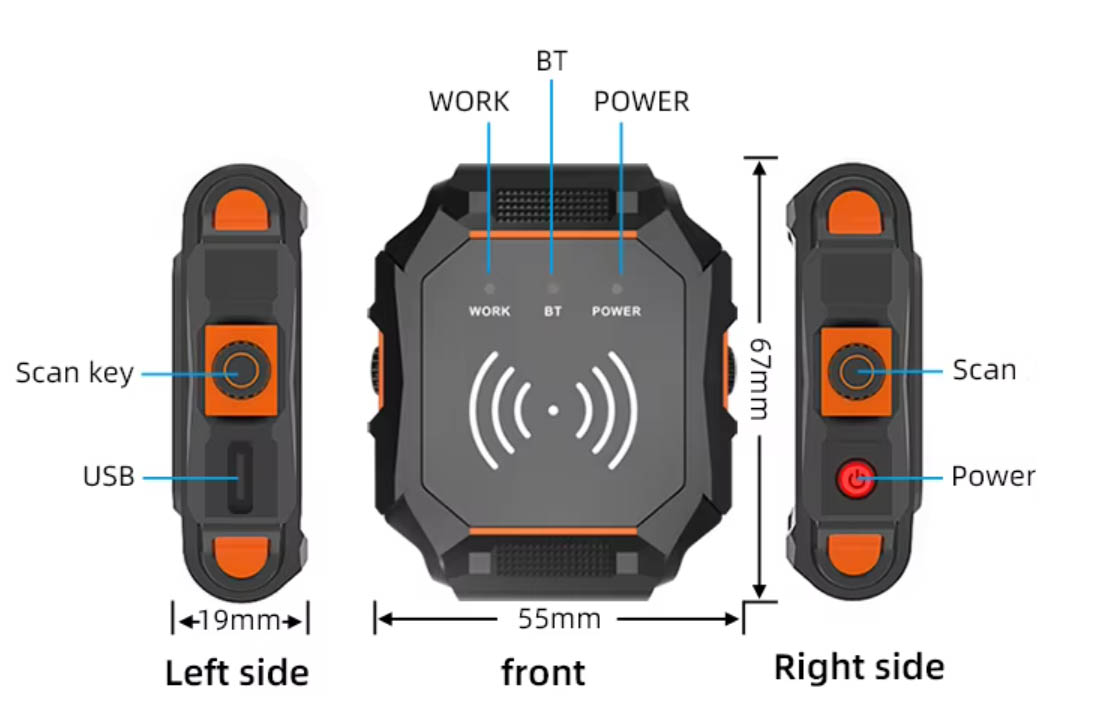

Dimension:55*67*19mm(±2mm)

Net Weight:≤70g (Wrist strap not included)

Shell Material: ABS+PC

Color: Black + Lake blue

Buzzer: Configurated by software

Interface: Type-C

Indicator Power: Bluetooth, Working status

Bluetooth Module: Bluetooth 5.1

Keys Keyboard:  scanning key (left and right), power key

Protocol(RFID): EPC global UHF Class 1 Gen2/ISO 18000-6C

Frequency: 902MHz-928MHz (US) / 865MHz-868MHz (EU)

Output Power: 15dBm~26dBm(Adjustable step by software 1.0dBm)

Read and Write Distance: 0.5-1meter (Depend on tag performance, reader power and environment)

Charging Method: Type-C, Output:5V 0.5A~3A

Battery Capacity : 1250 Mah Rechargeable lithium battery

Working time: 8 hours/ equalization mode

Storage Temperature: -20℃~70℃

Operating Humidity: 5%~95% Non condensing

Operating Temperature: -20℃~45℃

Certification: IP67,CE,FCC

Application: Logistic; supply chain; apparel; warehousing
