IP67 5.5inches Industrial 4G Android Barcode Gun Scanner

Product Name: IP67 5.5inches Industrial 4G Android Barcode Gun Scanner model SF508

Main Features:

Android 12 upgradable

High quality Qualcomm Oct-core CPU up to 2.0GHz

 4GB+64GB or 6GB+128GB internal memory for option

 Laser barcode scanner for batch scanning and OCR scan

IP67 standard withstand 1.5m drop testing

Big removable battery up to 5000mAh

4G Network and dual WIFI 5G

IP67 Android Data collection Barcode scaner model SF508S Full functional Display

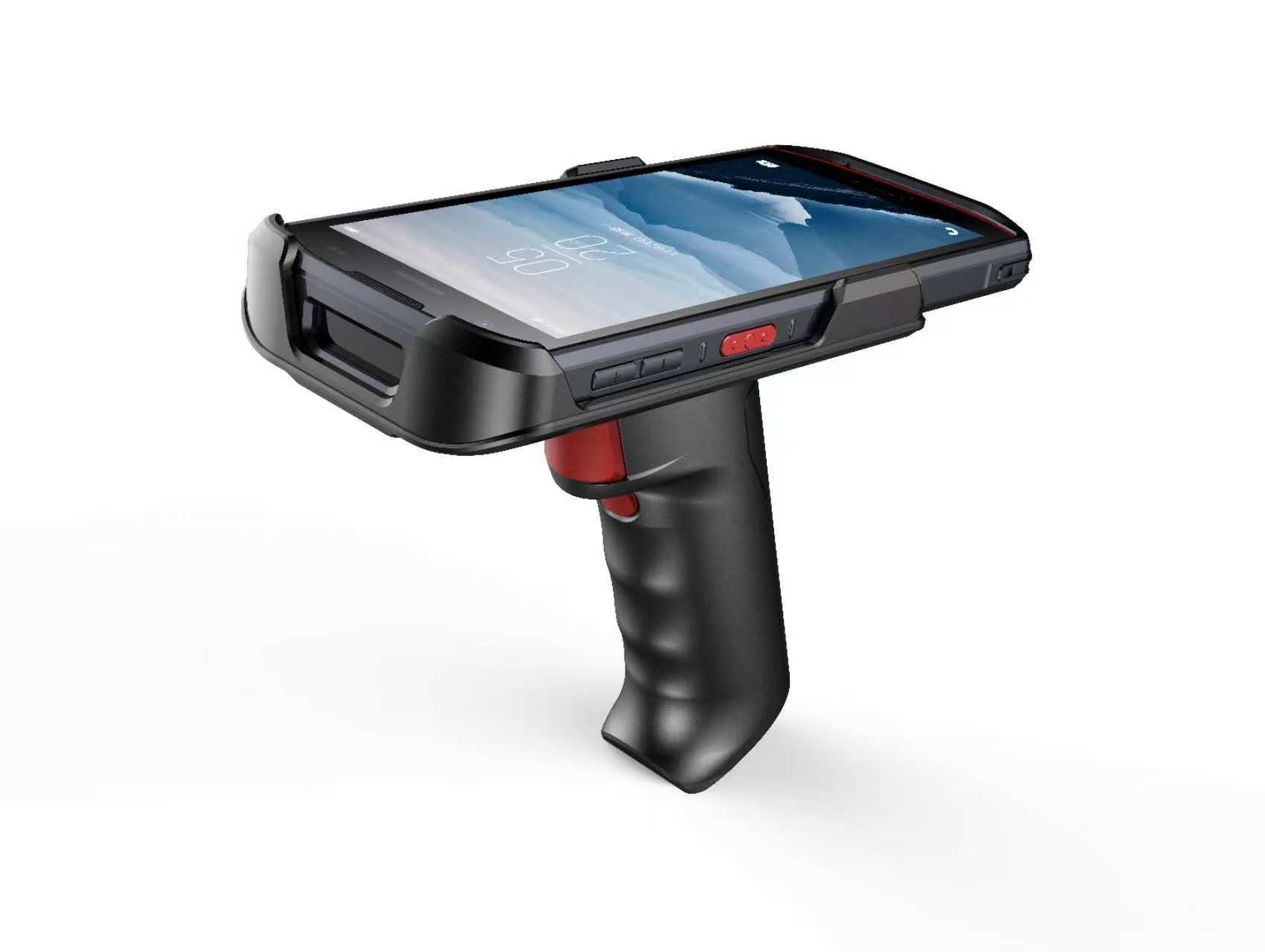

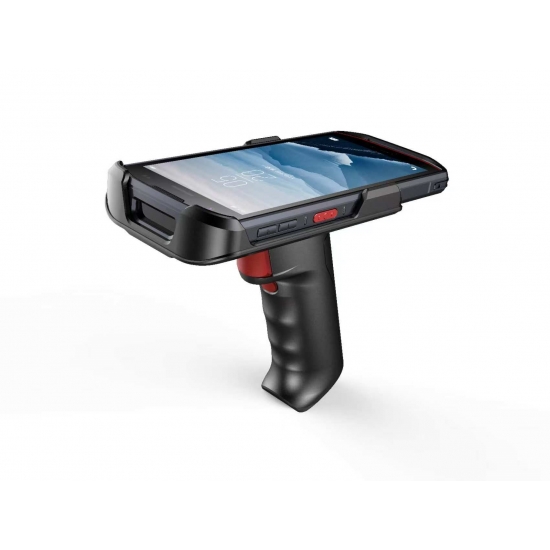

Android Barcode Gun Reader model SF508 is equiped with gun for easier outside use.

SF508 hot selling points

4G Android Batch barcode scanner SF508 is with 5.5inches High Definition Touch screen

SF508 is widely used in express,logistics,inventory, ticketing etc

Technical Specifications

Performance parameter

CPU: Qualcomm platform, Snapdragon up to 2.0GHZ

RAM+ROM:4GB+64GB or 6GB+128GB for option

Expansion slot: Micro SD card, minimum support to 256GB

Development environment

OS：Android 12

Development：tools Eclipse/Android Studio

SDK：Terminal Software Development Kit

Physical parameter

Device dimension: 160mm (L) *74mm (W) *14mm (D)

Device weight: 262 g

Standard accessories: Adapter, USB cable, wristband, hand strap

Battery:3.8V/5000mAh，Li-polyment, Removable battery

Display screen: 5.5inches 1280*720pixels

Touch screen: Industrial capacitive screen, support wet/gloved finger input

Interface: Micro USB 2.0 x 1, SIM Card x 1, TF Card x 1, 6 POGO PIN x 1,

Power: Require support 2A fast charging, support bottom 6 Pogo Pin charging port

Charge LED notification: Red means charging, green means full charge

Scan LED notification: Scanning notification(red, green) / audio notification

Scan engine:S20,

Vibration: Built-in motor

G-sensor: Support 3 axes

Speaker:1.8W high-power speaker with enhanced drive circuit

Data communication & Operation environment

WIFI: WiFi802.11 a/b/g/n/r/ac (Dual-band Wi-Fi: 2.4G+5G)

WWAN

GSM: 900,850,1800,1900MHz;

WCDMA: B1/B2/B4/B5/B6/B8/B9/B19

TDD-LTE: B38/B39/B40/B41

FDD-LTE: B1/B2/B3/B4/B5/B7/B8/B9/B12/B13/B17/B19/B20/B25/B26/B28AB/B30/B66

Intra-band Contiguous CA:1/2/3/4/5/7/8/9/12/38/39/40/41

Bluetooth: BT5.0 BLE

GPS Support: GPS/AGPS/Glonass/ Beidou, Target SNR≥39dB (Singal level-130dBm)

Drop Multiple 1.5 meters drops to cement floor

IP level：IP67

ESD：±15kv air discharge ,±8kv direct discharge

Data capture

Camera (optional)

Rear Camera:13.0MP, auto focus, support PDAF

NFC (optional)

Frequency:13.56 MHZ

Reading distance: Within 3cm

Protocol standard: ISO/IEC 14443A/B, ISO/IEC 15693

Anti-condensation heating indicator( optional)

Component: Temperature and humidity sensor, heating film attached to the scanning window, anti-condensation fogging

Indicator: Different colors on light strip show different status

2D Image Scanning Engine & Accessories

Laser Safety Level: Class Ⅱ

Sacn speed:20 scans/ s

Standard accessories: USB cable,adapter,user manual, Handbelt

Optional accessories: Battery charger
