MOSIP Certified Biometric Binocular IRIS Recognition Scanner

Product Name: MOSIP Certified Biometric Binocular IRIS Recognition Scanner model SF322

Product Features:

Mosip Certified

ISO 19794-6 standard compatiable

Dual telescope design can be used both indoors and outdoors

Supports both iris capture and identification functions within 1 second

SFT IRIS Recognition Collector with APIs  which support the integration of images captured by iris devices that meet the regulation Technical Requirements for Iris Capture Device for Criminal Investigation and ISO19794-6 Standard; Iris data collection and deduplication; Iris identification and verification and user permission management

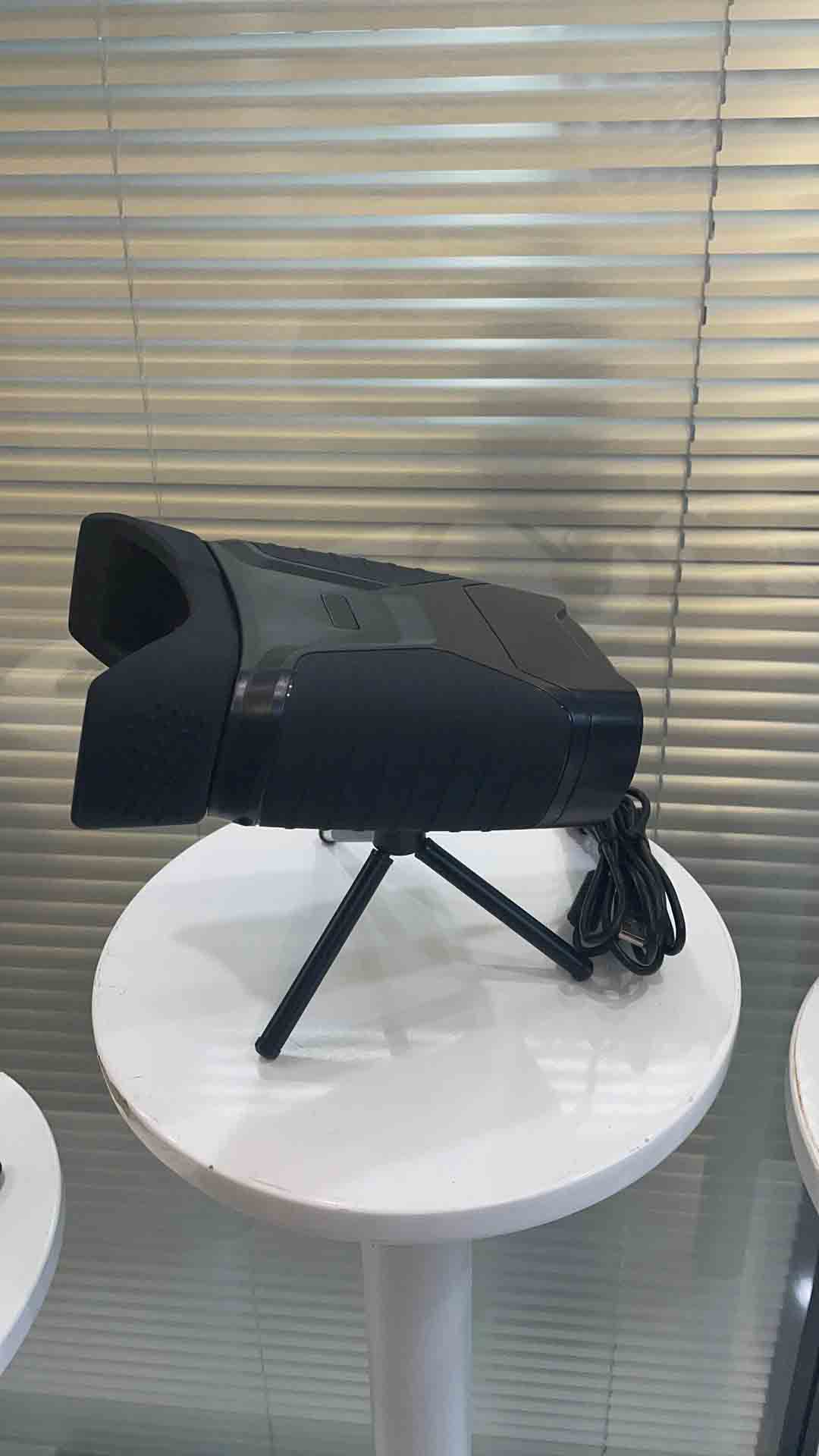

SF322 could be installed on the tripod for EKYC enrollments or Census

SF322 Technical Specification:

 Basic Parameters:

Boot Time: <2s

Dual Optical Camera: 5 Mega Pixel

Working Voltage: DC5V(±5%)

Power Waste Standby: 0.2W, working 2.25w

IPD: 38-80mm

Size: 220mm×160mm×65mm (length×width×height)

Installation Mode: Drive free

Weight: About 450g

USB Cable Length: 1.5 Meters (can be customized)

Product Functions

Working Mode: Handheld Binocular iris Scanner

Basic Function: Iris capture, iris auto capture, iris split, iris image quality check, anti-dilation, image finding and stabilization

Housing: Fixed distance between iris and camera

Visor: Protect eye from sunlight

Capture Distance: 118mm

Work Distance: 0cm-1cm (distance from eyes to eye mask)

Product Performance Metrics

Capture Time :<1s

Images Per Second: 5fps

Device Resolving Power: 4lp/mm

Iris Capture Resolution :≥20pixel/mm(508ppi)

Spatial Resolution:  >60% @ 4.0Lp/mm

Gray Level: 256 grades

Gray Level Utilization Rate ≥ 6 bits

Contrast between Iris and Pupil ≥30 Contrast between Iris and Sclera ≥10

Specification Parameters

Proportion of Iris Effective Area :≥60%

Capture Volume: ≥28mm x 20mm x 12mm

Illumination: 850nm

Near IR Security for Eyes Comply with IEC62471, GB/T 20145-2006

Communication Interface Interface USB 2.0 Compatibility

Operating System: SDK for 32 / 64bit Windows, Linux, Android

Work Temperature: -10°C ~ -55°C

Relative Humidity: 10%～90%

Data Standard ISO/IEC 19794-6; JPEG2000 K1, K2, K3, K7

IP Rating: IP64 Handling ISTA 2A Shipping and Handling Specification

Certifications CE, RoHS, FCC

Electrostatic Discharge Immunity: Gb/t 17626.2-2006 grade 2

Radio Frequency Electromagnetic Field Radiation Immunity: Gb/t 17626.3-2006 grade 2
