Rugged 4G Android Biometric Palm Vein Scanner Access Control Tablet PC

Product Name: Rugged 4G Android Biometric Palm Vein Scanner Access Control Tablet PC model SF107P

Main Features:

Octa core CPU up to 2.3GHz

Android newest System

Rugged IP65 Biometric tablet

Palm Vein scanner built-in

Facial recognition available

FBI fingerprint scanner

Big battery up to 10000mAh

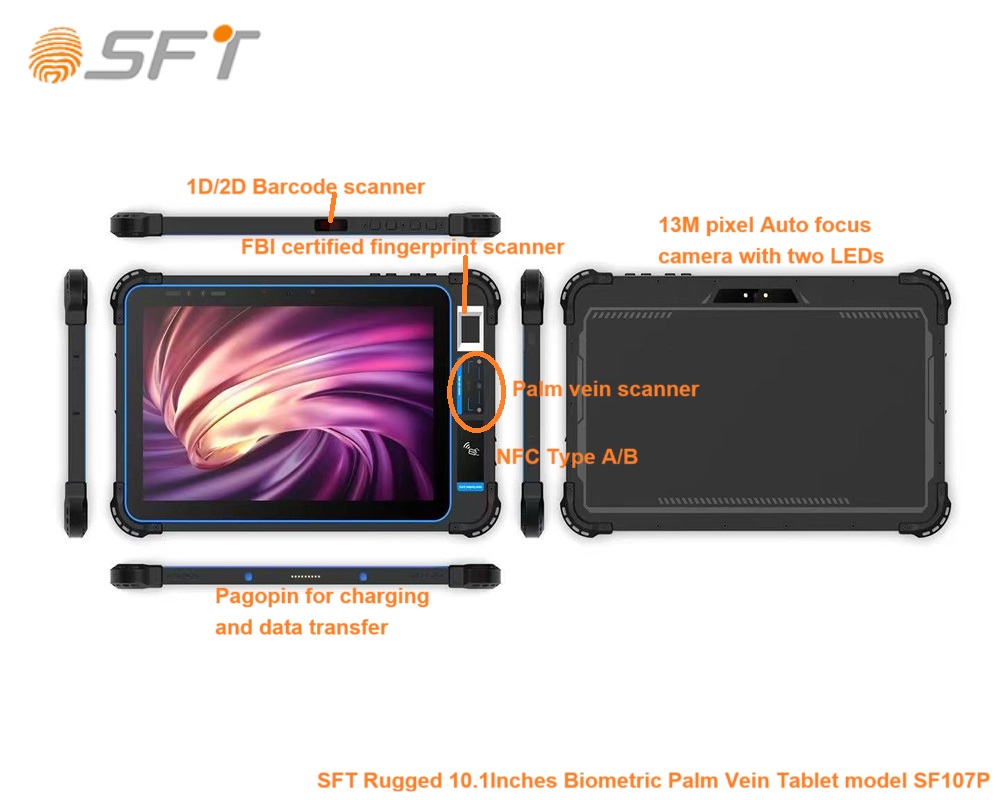

SF107P biometric tablet full functional display

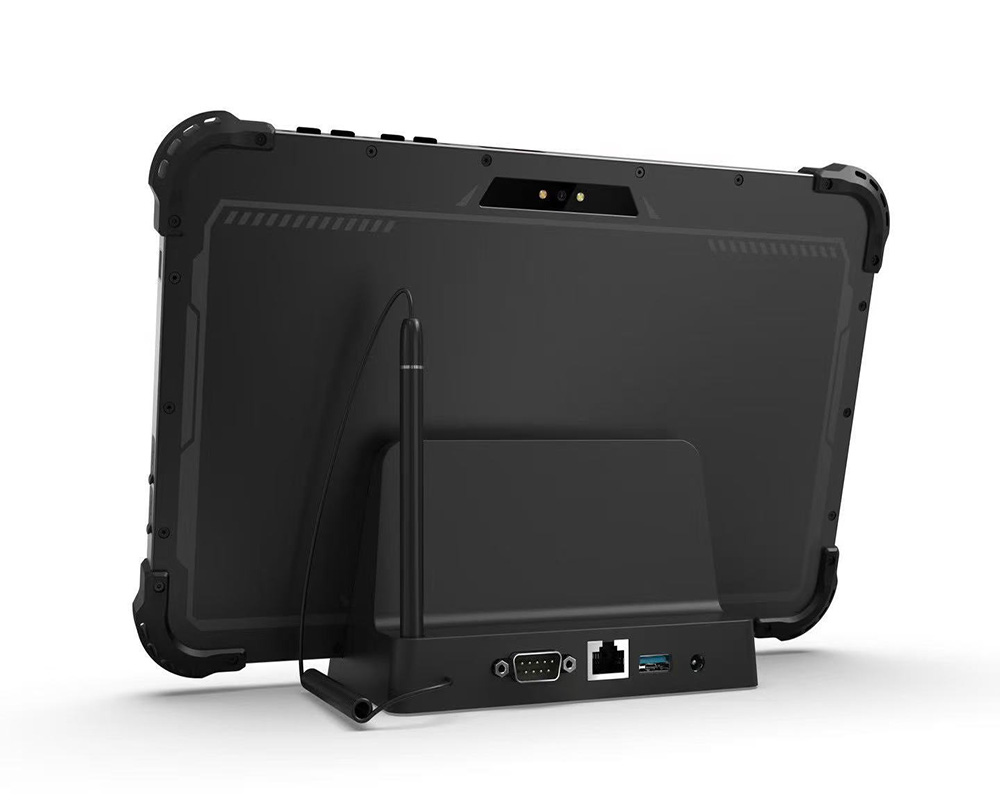

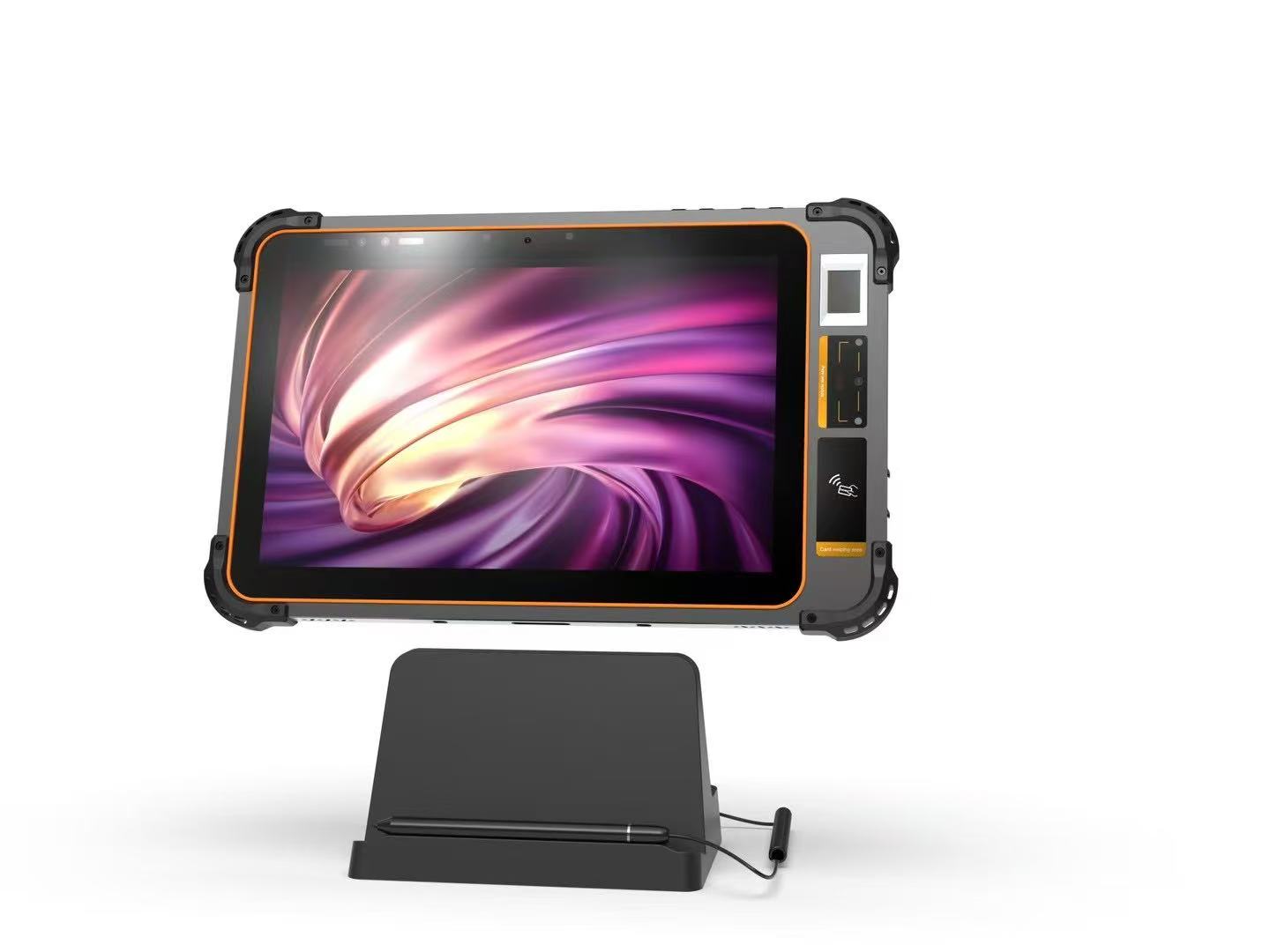

The SF107P 4G palm vein access control tablet has docking for both charging,HDMI RJ45 network function

4G Biometric Palm vein Tablet PC SF107P could be configurated with Electromagnetic screen for real name signature

 Technical Specifications:

10.1inches Rugged biometric tablet

Keys: Barcode scanner, power, volume+, volume-

Size: 300*183*18mm

Weight: 860g (including battery)

Color: Black/white

OS: Android 13 upgradable

CPU: Octa core Processor up to 2.3GHz

Storage: 4GB RAM+64GB Flash, (Option: Customizable 4GB RAM+32GB or 6GB RAM+64GB Flash)

Display: 10.1 inch IPS, resolution: 1280*800pixel(Optional :FHD 1920*1200pixels）

Cameras: Front: 5.0M pixels ;Rear:13.0M, PDAF, flashlight

Charge/communication interface:Type C interface, support USB2.0, high speed transmission, support OTG

Memory extension:Support Micro SD card, up to 128GB

SIM slot: SIM1 slot and SIM2 slot Or (SIM card and T-Flash card)

Battery: Built-in non-detachable lithium battery, 3.85V, 10000mAh,6 hours full of electricity(Option:16000mAh)

Battery Life: Continuous working: ＞8H; Screen bright standby: ＞12H;Sleep standby: ＞500H

Sensor: Support G-sensor, L-sensor, Proximity sensor, Compass, (Option:Gyroscope )

Speaker: Support, built-in  double horn

Microphone: Support, built-in double SMT mic

Vibrating Alert Support, built-in SMT vibration motor

Communication : WIFI Built-in wifi antenna, dual frequency 2.4G (2402-2482 MHz), 5.8G (5180-5825 MHz), IEEE 802.11a/b/g/n

Bluetooth Built-in Bluetooth antenna, CLASS 2 power, BT5.0 LE standard,z

WAN: LTE-FDD:B1/B3/B5/B7/B8/B20

LTE-TDD:B38/B39/B40/B41;

WCDMA:B1/B2/B5/B8;

GMS: 850/900/1800/1900

GPS: Integrated GPS, GLONASS, accuracy 8m, built-in antenna

Optional Functions

NFC Basic configuration, built-in antenna; NXP  chip, support ISO/IEC 14443 A, ISO/IEC 14443 B, MiFare S50, S70, reading distance 0-5cm, depending on tag types

Bar code Scanner (Honeywell N3680 )  2D, Support bar code type: UPC/EAN/JAN, GS1 DataBar, Code 39, Code 128, Code 32, Code 93, Codabar/NW7, Interleaved 2 of 5, Code 2 of 5, Matrix 2 of 5, MSI, Telepen, Trioptic, China Post 2D Stacked: PDF417, MicroPDF417, GS1 Composite 2D Matrix: Aztec Code, Data Matrix, QR Code, Micro QR Code, MaxiCode, Han Xin Code;Postal: Intelligent Mail Barcode, Postal-4i, Australian Post, British Post, Canadian Post, Japanese Post, Netherlands (KIX) Post, Postnet, Planet Code;OCR Option: OCR-A, OCR-B, E13B (MICR)

Fingerprint reader:Optional Type：FAP10 Integrated Fingerprint Modules,FAP20 optical  sensor,FAP30 optical  sensor; Sensing Area: 14*22mm/300*400 pixels /resolution 500dpi,256 greylevel;FIPS PIV IQS/ISO 19794-4, meet the FBI’s FIPS-201 image quality criteria

Working Environment

Working temperature: -10℃～+50℃

Storage temperature -20℃～+60℃

Working humidity: <90％RH

Storage humidity: 20％ ～93％RH(40℃)

Accessories: Packing box. Charger. DC charging line.  Type-c cable.

Charge: Chinese standard, European standard, American standard, British standard (optional)
