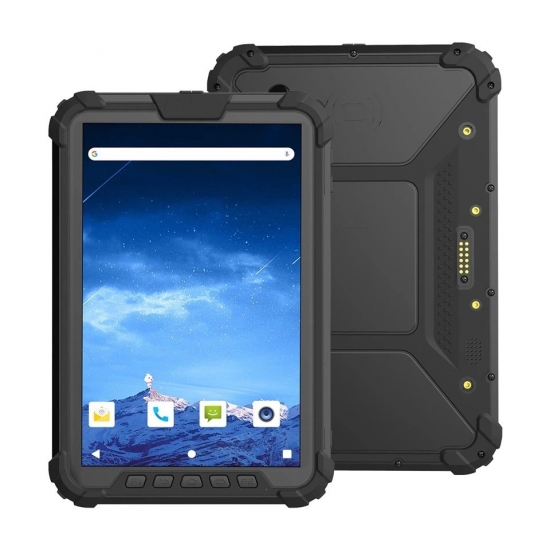

4G Android 14 IP67 Industrial Identity Verification Biometric IRIS Tablet PC

Product Name: 4G Android 14 IP67 Industrial Identity Verification Biometric IRIS Tablet PC model SF818

Main Features:

Qualcomm Octa core CPU up to 2.4GHz

Newest android 14 version

6GB+128GB internal memory

1920*1200 FHD 8inches Sun readable Screen

Barcode scanner,IRIS scanner, fingerprint scanner and facial authentication available

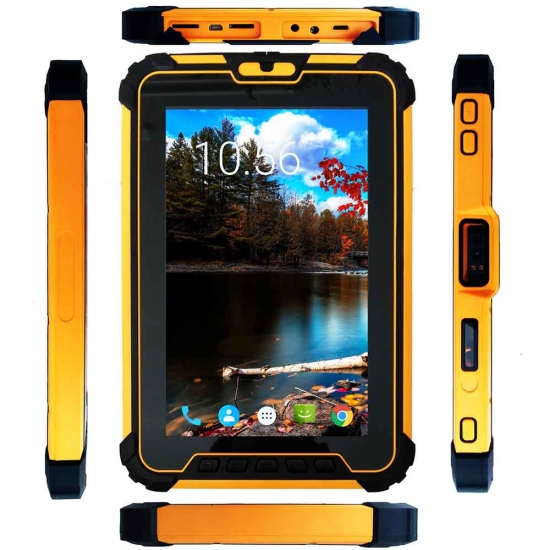

SF818 Full functional Display

Enterprise Biometric Enrollment Kit SF818 is adapting high peformance Octa core Qualcomm CPU and with newest Android 14 version and big battery up to 10000mAh

Top Seller 2024 biometric tablets SF818 is with internal storage up to 8GB+256GB without storage worries

SF818 is with 1920*1200 FHD IPS screen, 500nits and readable under bright sunshine and wet fingers

Industrial IP67 standard routing inspection biometric Tablet PC could withstand water and 1.2m falling

Biometric IRIS tablet SF818 is with 16M pixel rear camera and 8M pixel front camera for clear capture and ideally for surveying and drawing,routing inspection, asset management and industrial manufacturing etc

IP67 Industrial LF UHF Tablet supports LF RFID 134.2KHZ FDX LF RFID, 125KHZ LF RFID;UHF RFID, Ray links RLM060 OR ThingMagic M6E-NANO, EPC C1 GEN2/iso18000-6C

SF818 is with long distance UHF Back clip reading function up to 25meters reading distance

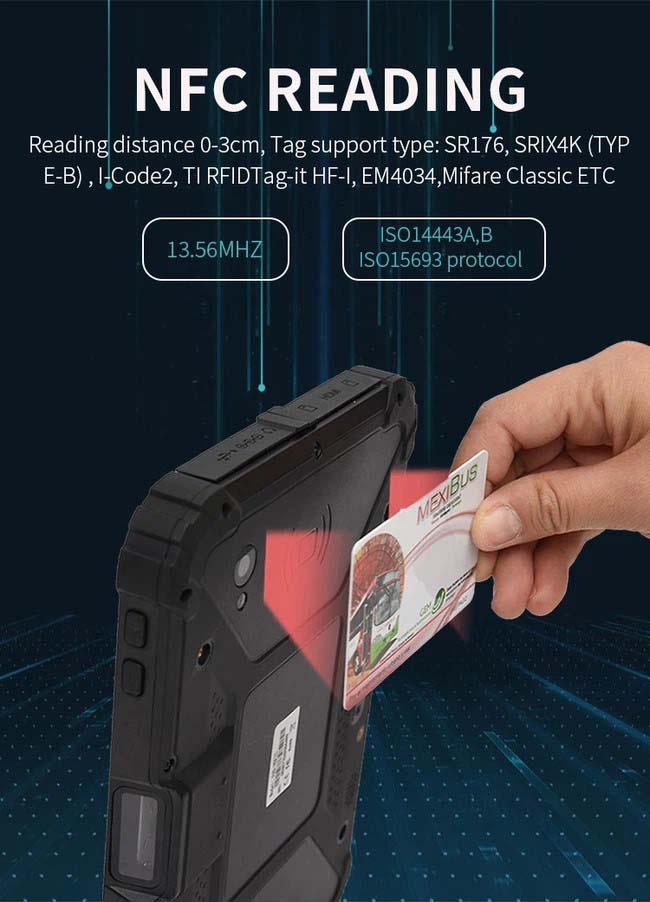

Rugged Tablet also supports contactless NFC  SR176，SRIX4K(Type E-B),I-Code2, TI RFIDTag-it F-I, EM4034 and Mifare Classic etc

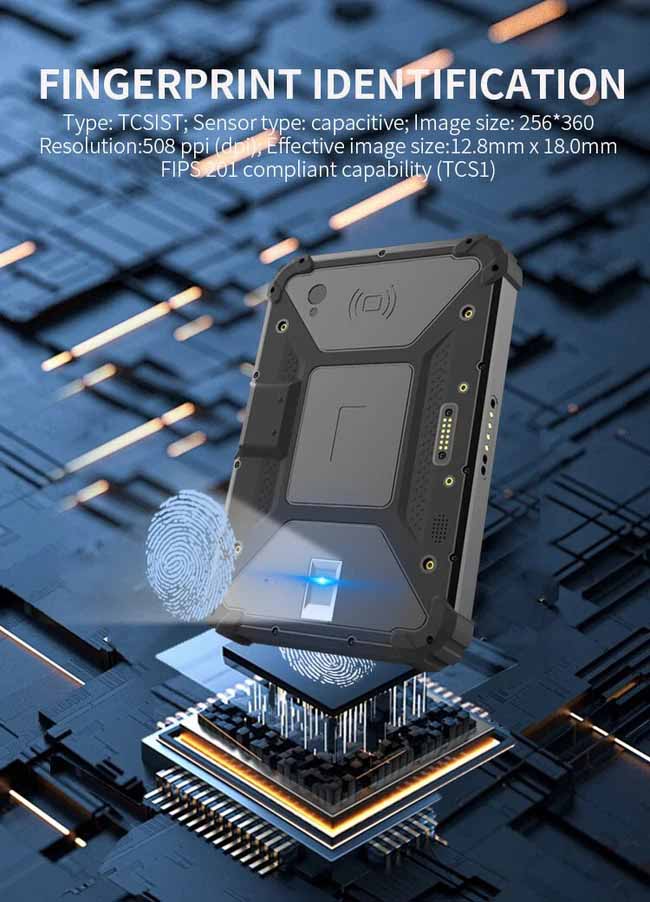

Identity Verification Biometric Facial Tablet SF818 supports FBI certified Fingerprint scanner with 256*360pixel scanning Size

SF818 supports Honeywell, Zebra or Motorola 1D or 2D fast reading barcode scanners

Mobile Security Biometric Tablet SF818 Technical Specification:

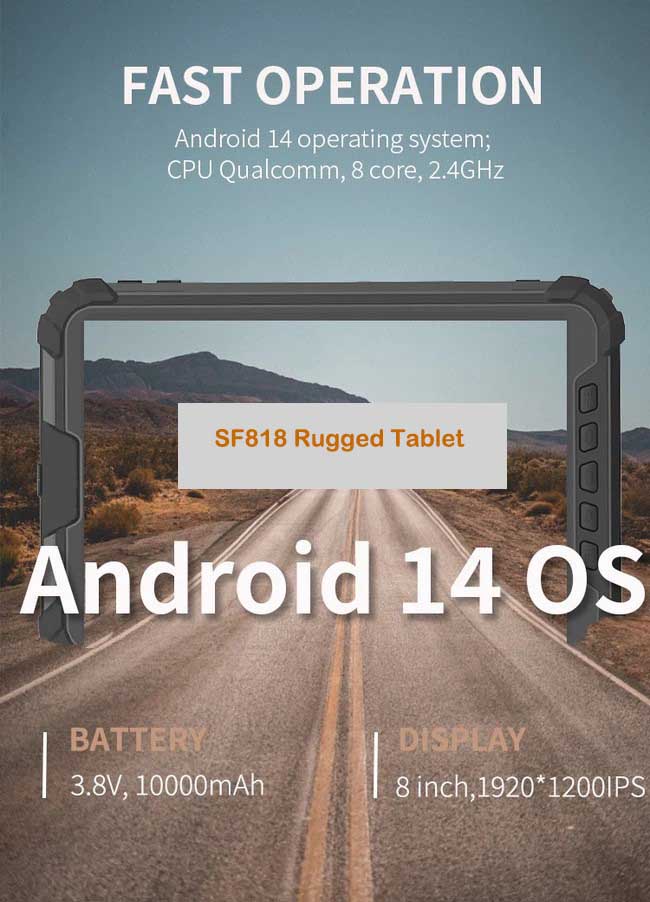

Qualcomm Octor-Core CPU up to 2.4GHz

Android 14 OS

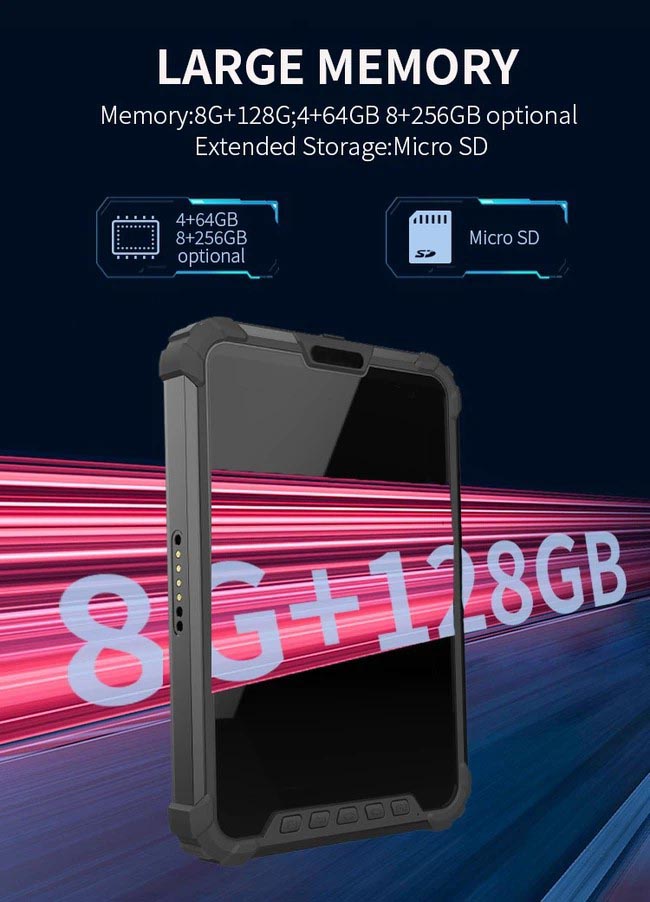

Memory: RAM: 6GB+4GB or 8GB+256GB

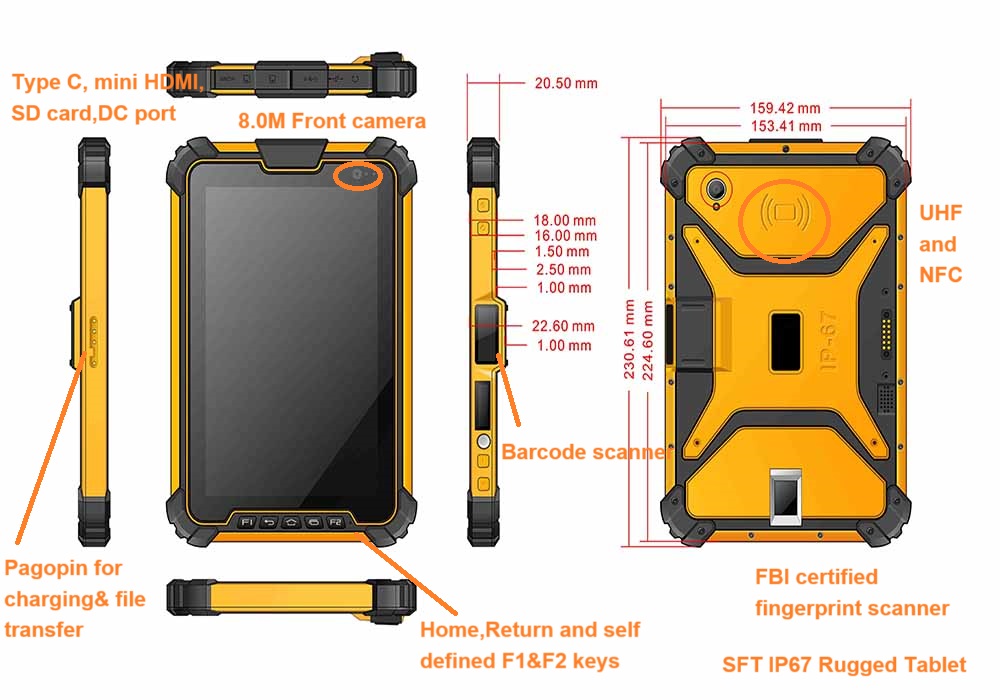

Dimensions: 232*158*22mm

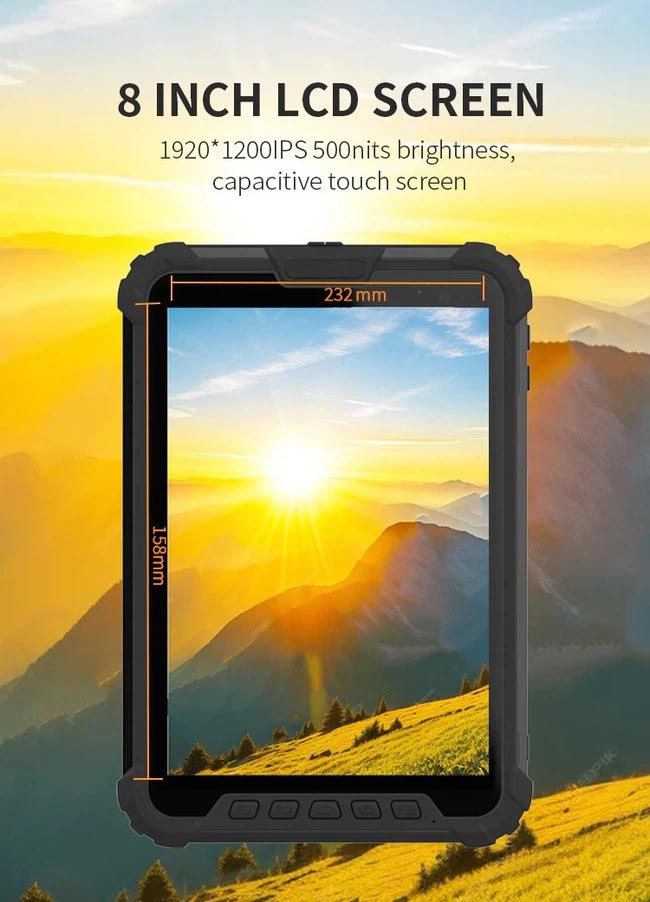

Display: 8 inch LCD screen, 1920*1200IPS 500nits brightness, capacitive touch screen

Keyboard: Android menu, homepage, return, volume, scan, on/off, reset (long press on/off key),function keys

Power: 3.8V, 10000mAh temperature wide battery supporting working 8-10hours

External Ports: Type C, Support USB OTG function, USB flash drive, mouse, network card,

HDMI port(optional),Charge port, headphone port

Sensors: Support Gravity sensor,compass ,gyroscopes, Light and distance sensor,Vibrating motor,Acceleration

Camera: 16M pixel rear camera, 8M pixel front camera, rear camera with LED light and flashlight

OTG: Through OTG can meet 100M network port,network card setup, MAC address supports

dynamic and fixed, default fixed mode, PPPoE dial-up, web browsing. Support OTG extend

RS232 serial port/485 serial port/RJ45 Serial port

Other support:  LED indicator light (ordinary flicker, Call fast flicker, missed calls, charge indicator)

Flashlight Function (can be used for emergency lighting)

Googleplay store

Headset: 3.5 mm audio Interface, has MIC and Single loudspeaker

External Memory: Micro SD, Maximum 512G

Communication: WIFI Support IEEE802.11a/b/g/n/ac,2.4G and 5G dual band

Network: 2G/3G/4G LTE; Supports 4G frequency band:

LTE FDD B1/B2/B3/B4/B5/B7/B8/B12/B13/B14/B17/

B18/B19/B20/B25/B26/B28/B66/B71LTE TDD B34/B38/B39/B40/B41

WCDMA B1/B2/B3/B4/B5/B6/B8/B9/B19

GSM 850/900/1800/1900

WWAN (America)

3G: WCDMA B2/B4/B5

4G:FDD-LTE: B2/B4/B5/B7/B12/B13/B14/B17/B25/B26

Bluetooth: BT5.0 with BLE

GPS: AGPS; GPS, Beidou+GLONESS, supports A-GPS

GPS+Beidou: Ublox F9P/M8N, N303 Optional

Certification: 3C/FCC/CE/ROHS/UN38.3(Batterv)/MIL-STD-810G/1m-1.2 m drop certification

Optional Function:

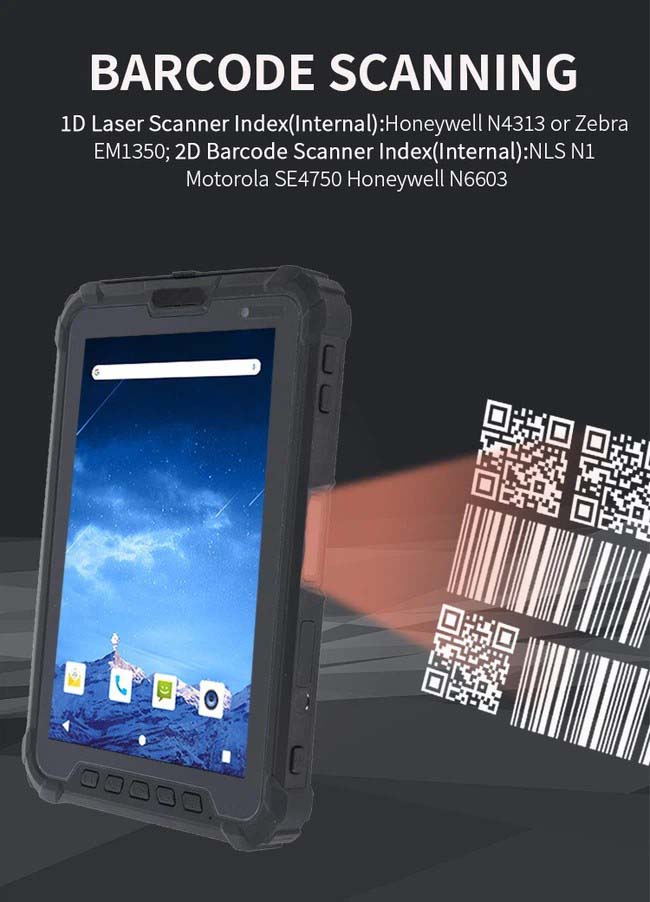

Barcode

1D Laser Scanner Index(Internal):

Honeywell N4313 or Zebra EM1350

Scanning speed: 104 times/second+12times/second(two way scanning)

Scanning distance: 2.5cm-114.3cm

Scanning angle: 47±3°(default) /35±3°(reduced code)

2D Barcode Scanner Index(Internal):

NLS N1;Motorola SE4750;Honeywell N6603

Identification ability: 1D, 2D, OCR

Scanning angle: rotate 360°,incline±50°,deflection ±50°

Field of View: Horizontal 36°, vertical 23°

Depth of field: 4cm-23.5cm

Environmental luminance: 0~100,000 LUX

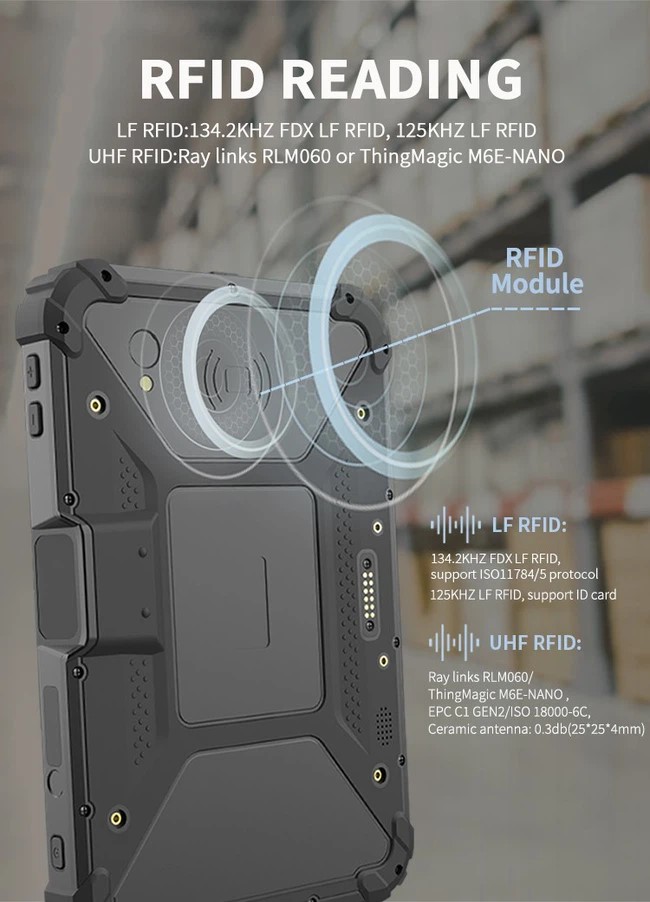

RFID: LF RFID:134.2KHZ FDX LF RFID, support ISO11784/5 protocol,

125KHZ LF RFID, support to read ID card

IRIS

UHF RFID: Internal：

Ray links RLM060 or ThingMagic M6E-NANO, EPC

C1 GEN2/ISO 18000-6C, output power 10dBm-30dBm

Reading distance: 1 m

Ceramic antenna: 0.3db(25*25*4mm)

Fingerprin Read module(Optional):Supports fingerprint entry, image collection,

fingerprint recognition, fingerprint deletion etc.

Size: 256*360Resolution: 508 ppi (dpi)

contrast mode(1:1); search mode(1:N) FIPS 201

User Environment: Working Temperature: -20°C~+60°C

Storage Temperature: -40°C~+60°C

Humidity: 5%-95% relative humidity(no condensation)

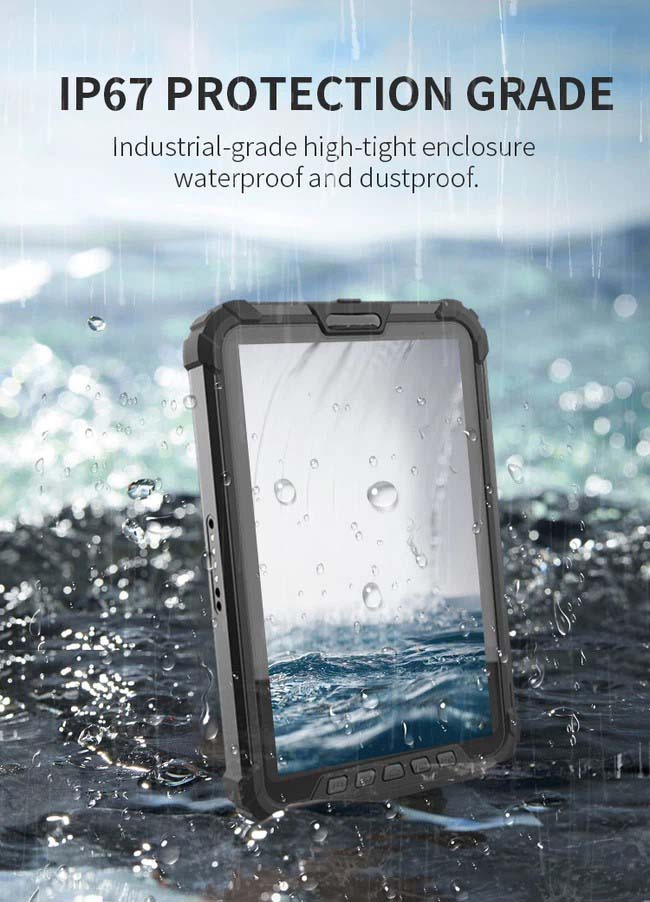

IP Level: IP67

Drop Grade: Drop resistance from 1.2m
