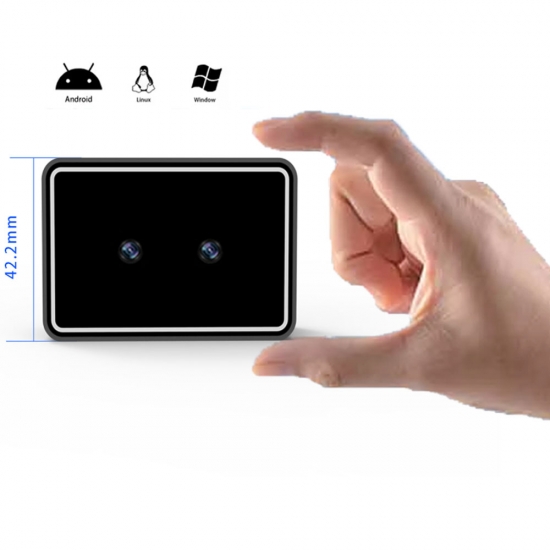

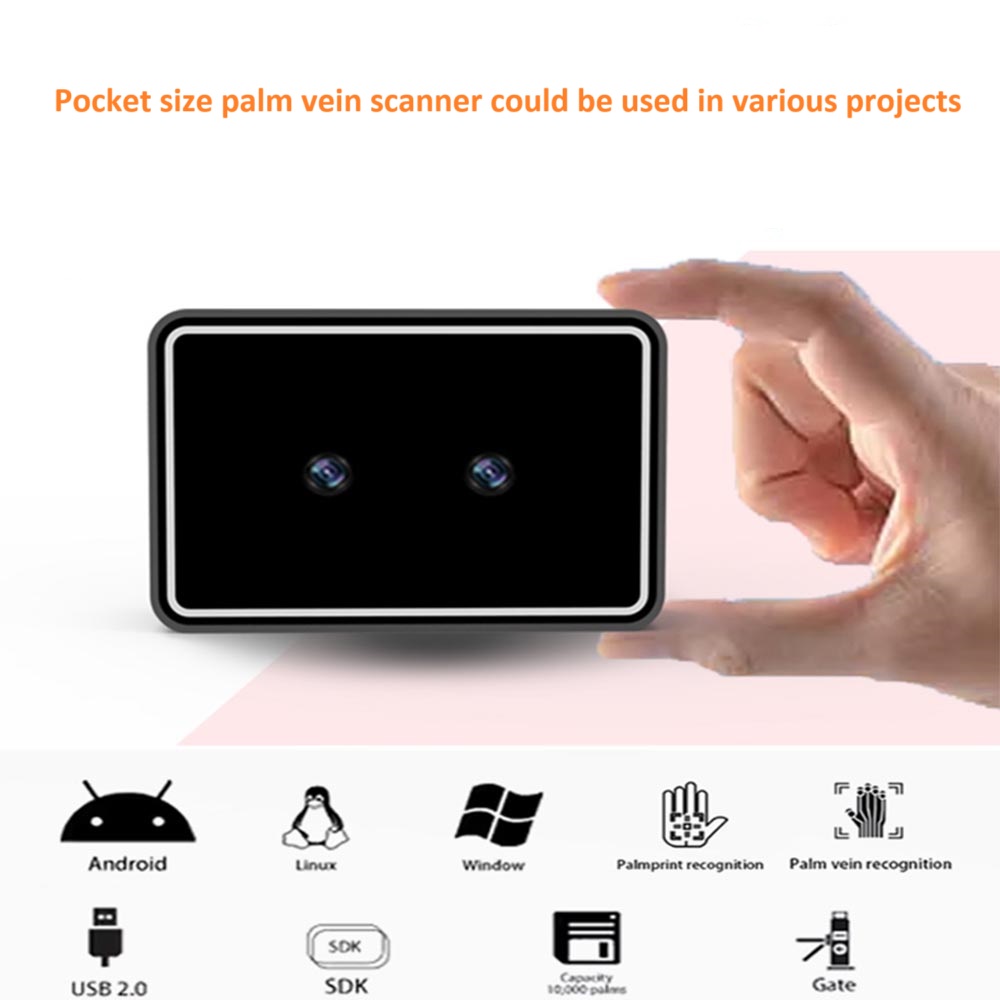

Binocular Palm Vein Payment Module Scanner

Product Name:  Binocular Palm Vein Payment Module Scanner model SF203

Main Features:

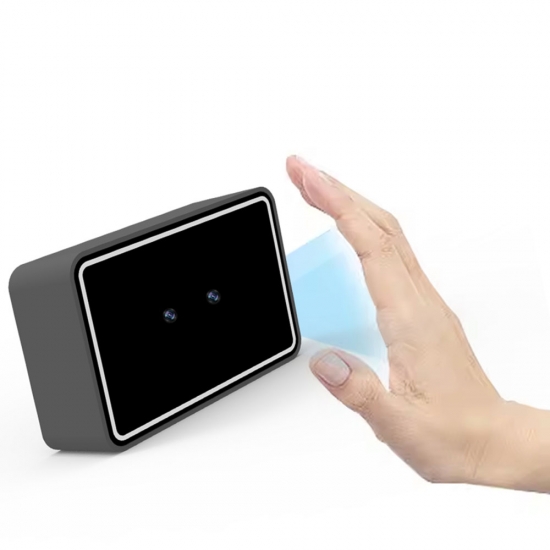

Working Distance for Palm: 5-20cm

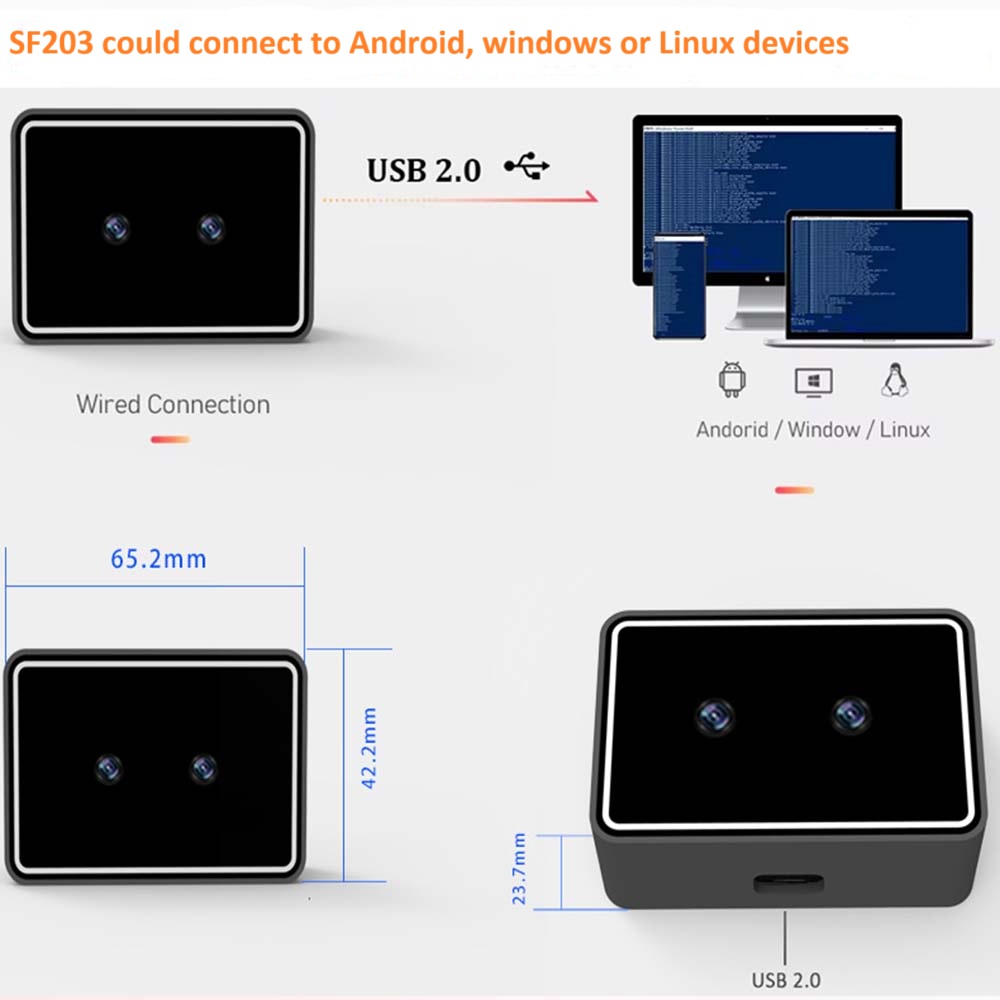

Works with Windows, Android and Linux

Reading Distance up to 3~20cm for payment code and refund code

Output format support MJPEG and YUV2

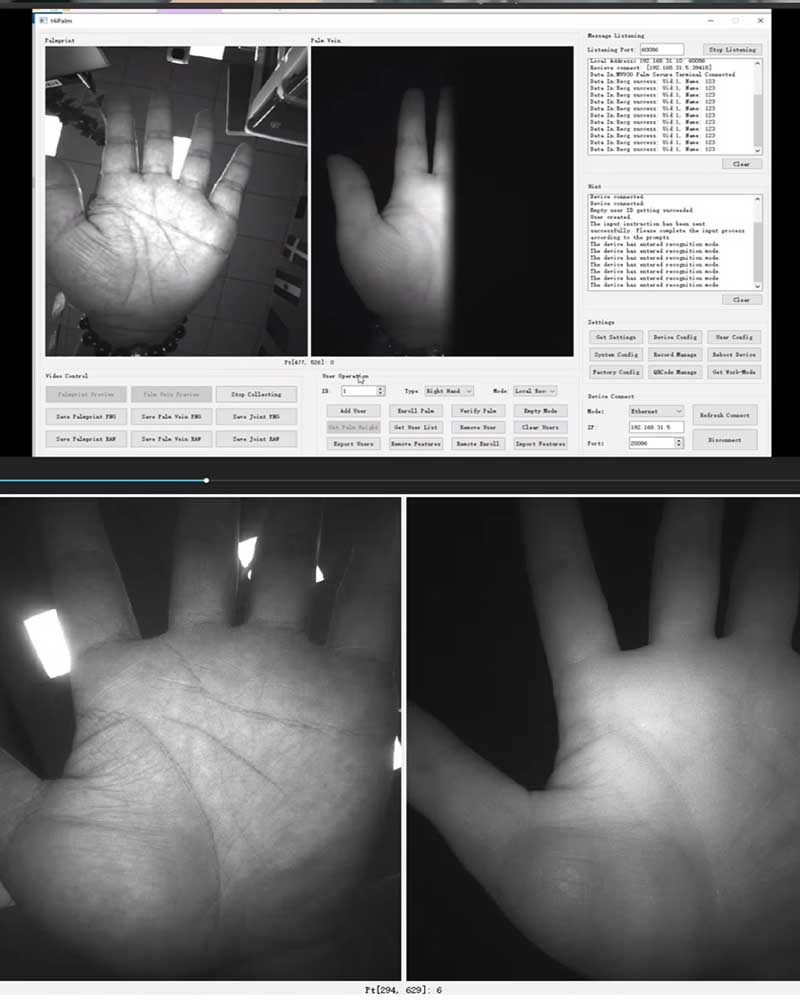

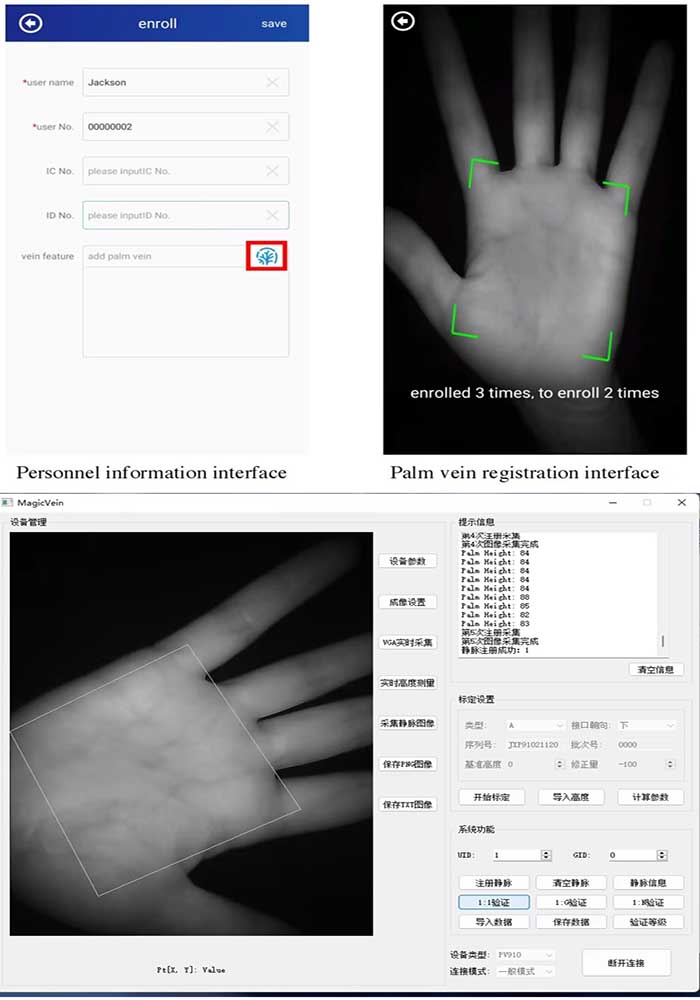

Palm Vein scanner full functional Display

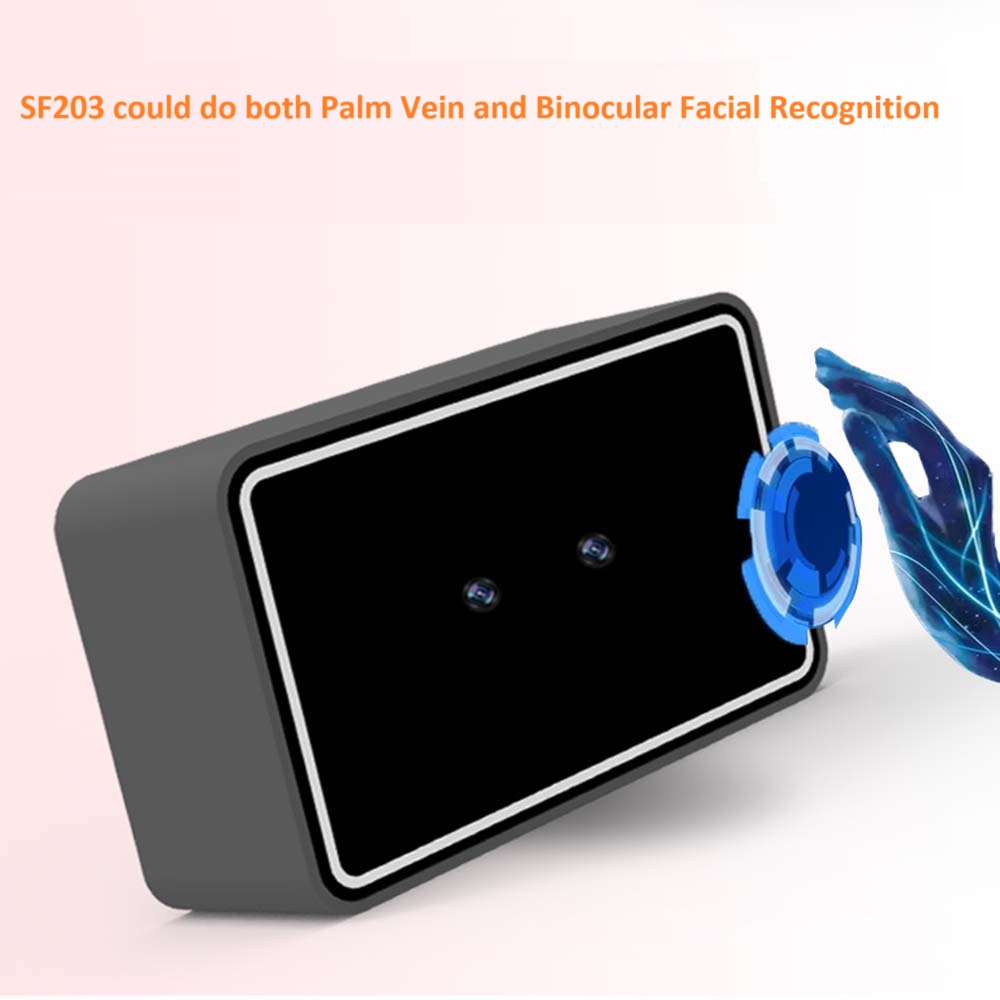

SF203 could do both binocular palm vein and facial recognition

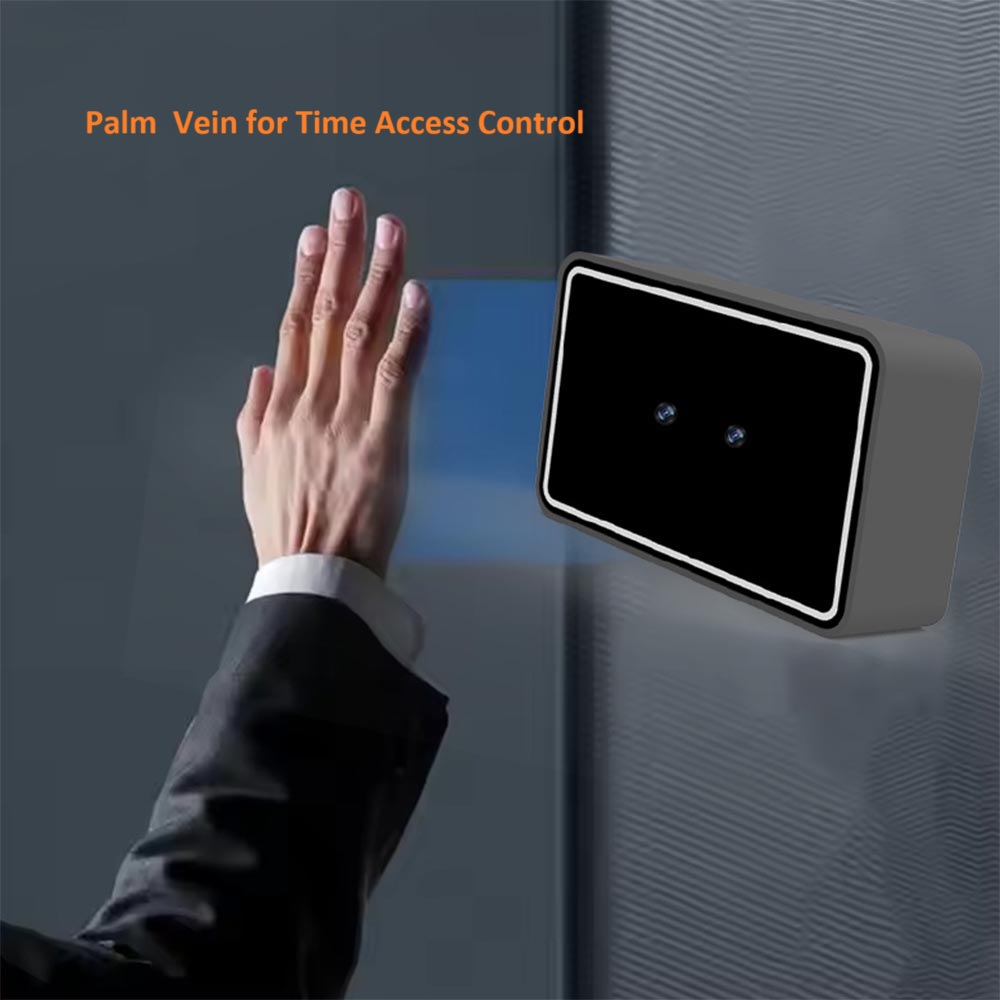

SF203 is prefectly working with access control and time attendance system

SF203 output format supports  MJPEG and YUV2

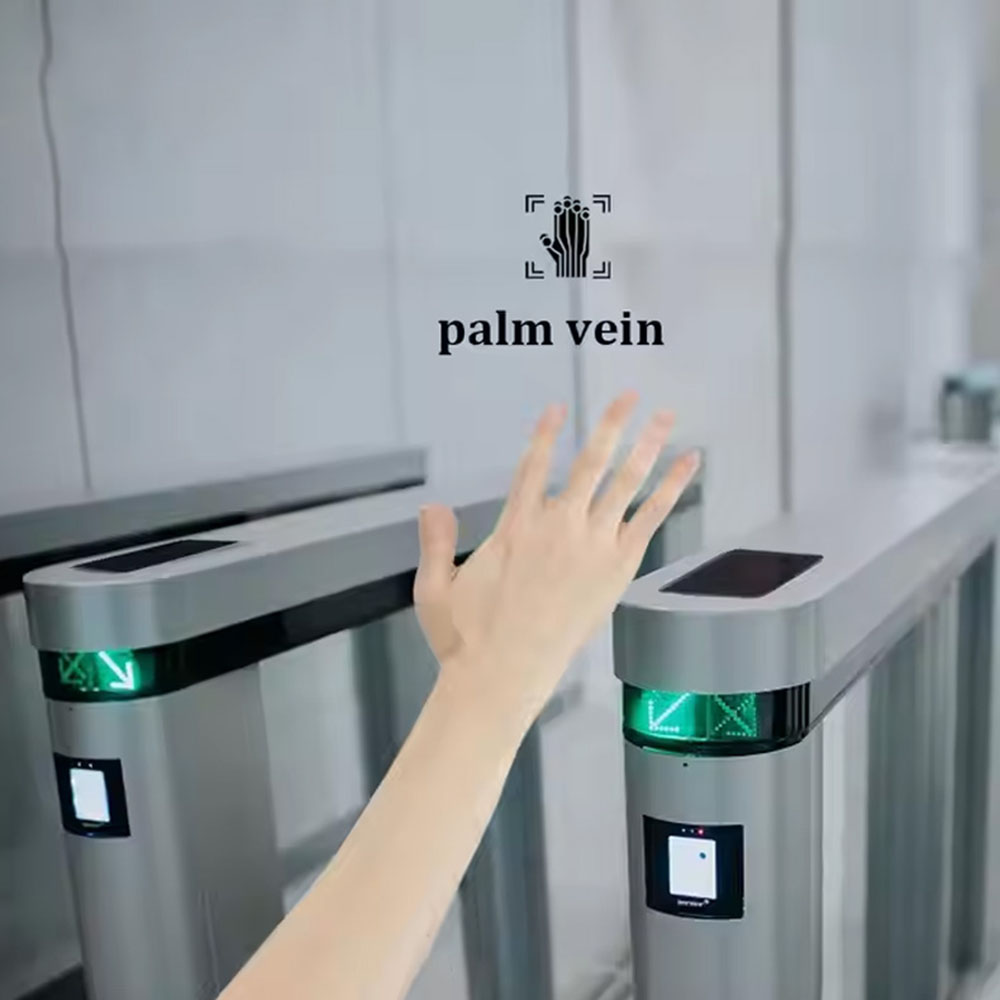

Bionuclar Palm vein scanner SF203 could be widely integrated to access control systems, mobile payment etc

Technical Specification:

Maximum size：L580mm*W16mm*H10mm

Communication: Interface USB Type C interface (USB 2.0 protocol)

Working distance for palm: 5~20cm.

Working system: Windows, Android and Linux

Module Parameters: Working distance for scanning code 3~20cm, support payment code and refund code.

pixel size: 1920*1080pixels

output range: 3.0*3.0um

Output format: MJPEG,YUV2

Operating voltage: 5V~12V

Supply current:  ≥1A

Module power consumption: Standby: 2.0W；scan palm 2.7W

ESD level Contact discharge: 4 kV, air discharge 8 kV.

RE grade GB 9254 CLASS B

Working Environment: Temperature －10℃～55℃

Humidity Relative humidity: 0% ~ 95%, no condensation.

Intensity of illumination: 0-50,000lux

Storage Environment: Temperature －40℃～85℃

Humidity Relative humidity: 10% ~ 95%, no condensation.

Normal working temperature rise Temperature rise of shell < 10℃ [on 3s and off 3s]

ESD level Contact discharge: 6 kV, air discharge ±10KV.

RE grade: Comply with GB 9254 CLASS B specification.

Working Life More than 3 years

Environmental Certification RoHS
