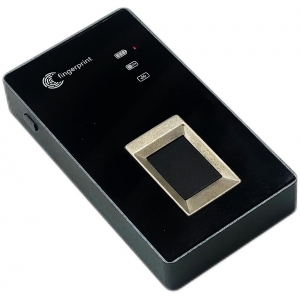

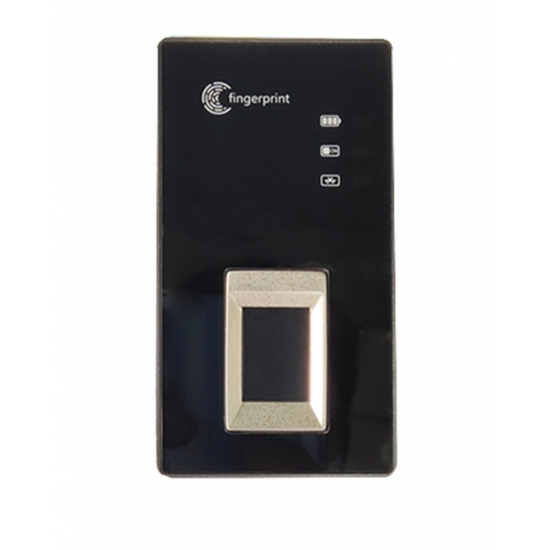

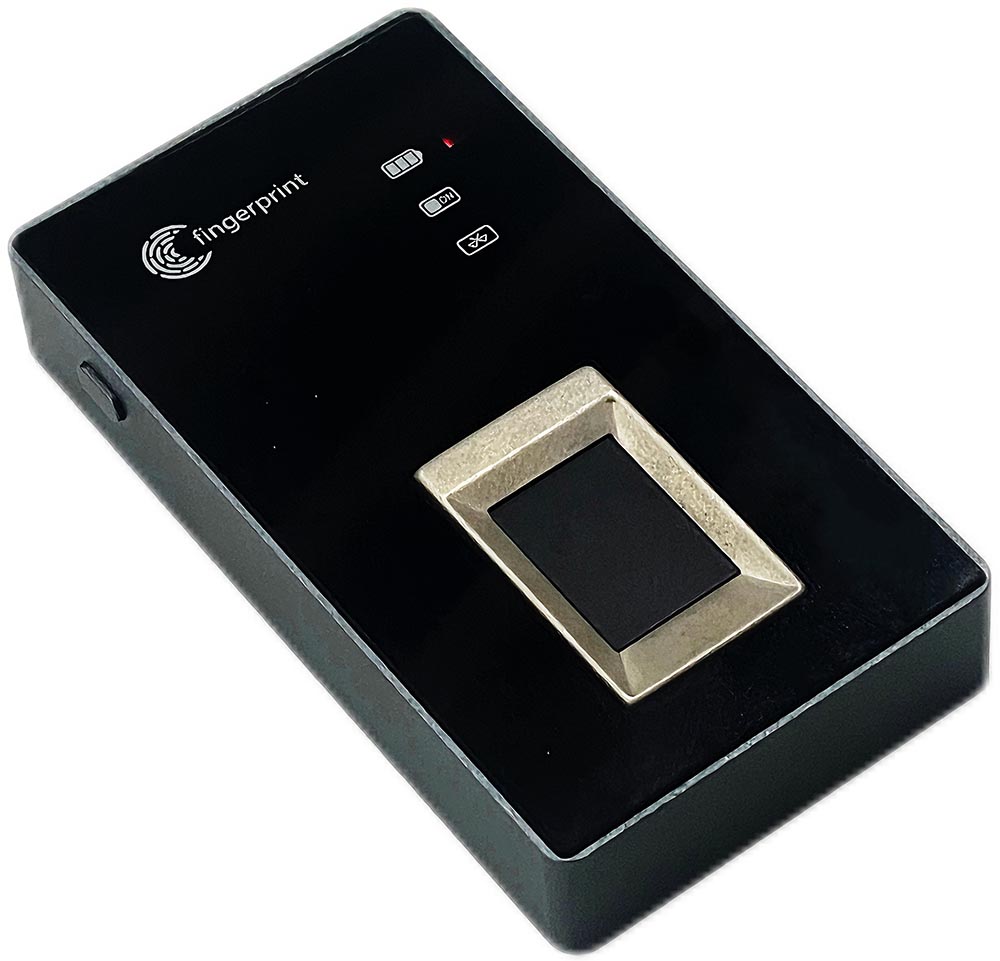

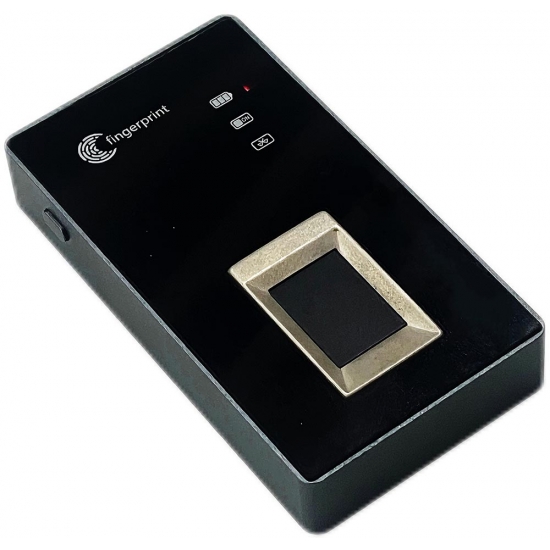

Wireless ID Registration Bluetooth Fingerprint Scanner

Product Name: Wireless ID Registration Bluetooth Fingerprint Scanner model BT060

Main Features:

Supports Bluetooth wireless and USB communication, which can meet different needs Scenario application requirements.

Durable and earthquake resistant: Strong appearance, wear resistance, shock resistance, strong resistance to damage, anti-static interference long service life.

Comprehensive SDK: BT-060 can provide SDKs for Windows and Android platforms Development package, convenience for secondary development.

Full featured: Equipped with fingerprint collection, feature processing, fingerprint comparison, searth and special features Collecting and storing functions to meet the needs of fingerprint recognition.

The Bluetooth ID Registration Portable Fingerprint Scanner Full Functional Dislay

BT606 Fingerprint scanner advantages:

Fingerprint capture: Capture images of fingers and store them in RAW, BMP, and other data formats

Fingerprint comparison: Search: Compare and search with the fingerprints stored in the module, supporting 1:1 and 1: N

Feature processing: Processing the collected fingerprints to generate fingerprint feature data

Feature storage: Fingerprint features stored within the module

High anti-counterfeiting: Strong ability to distinguish fake fingerprints

Strong adaptability: It can collect dry, cracked, dirty, wet and other conditions of fingers normally and has good adaptability

Easy to develop: standard Bluetooth/USB interface, providing source code SDK

Technical Specification:

communication interface: wired：USB1.1/2.0

Wireless: Bluetooth supports full functionality BT5.1 Protocol

Working voltage: Built in 3.7V lithium battery（1000maH）

External USB power supply 5V

Working current:<75mA（typically）

Sensor type: Capacitive sensor

Sensor size: 22.4x34.4mm

Image pixels: 256*360pixel

Image resolution: 500dpi

Grayscale: 8-bit, 256 levels

Collection time:<0.25s

Comparison method: 1:1comparison or 1：N comparison

Compare time: ＜0.1S（1：1）;＜1.3S（1：500）

 Fingerprint Storage default: 500 Pieces

Security level: From low to high, levels 1 to 5

FAR :<0.001%（Security level：3）

FRR: <0.5%（Security level：3）

Fingerprint feature length: 512 Bytes

work environment

working temperature: -20~70C°

Working humidity: 0~90% R.H（Non condensing）

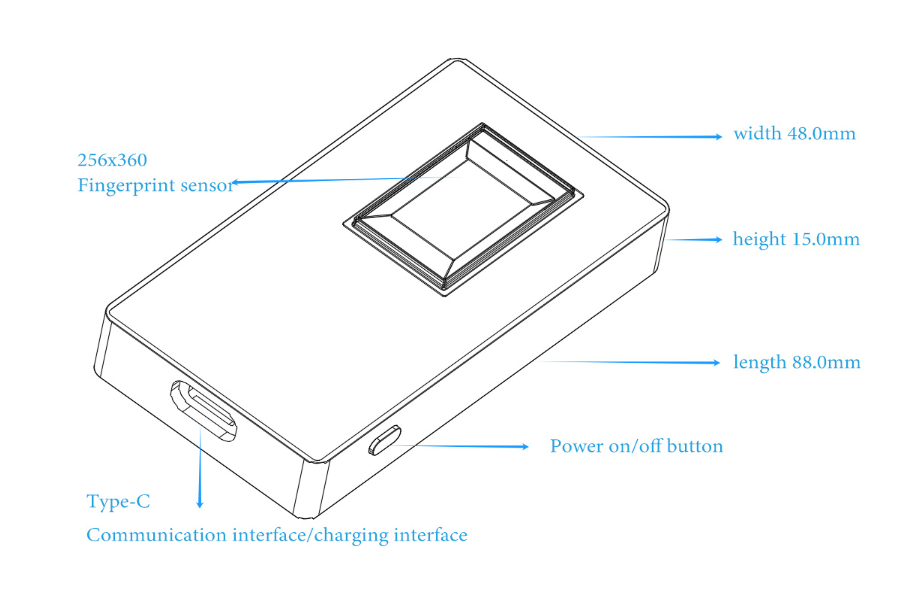

Product size: 88.0*48.0*15.0 mm(L*W*H)

Standard Type-C interface (communication and charging)

Embedded, Linux, Android, Windows, providing standard SDK development kits and manuals.
