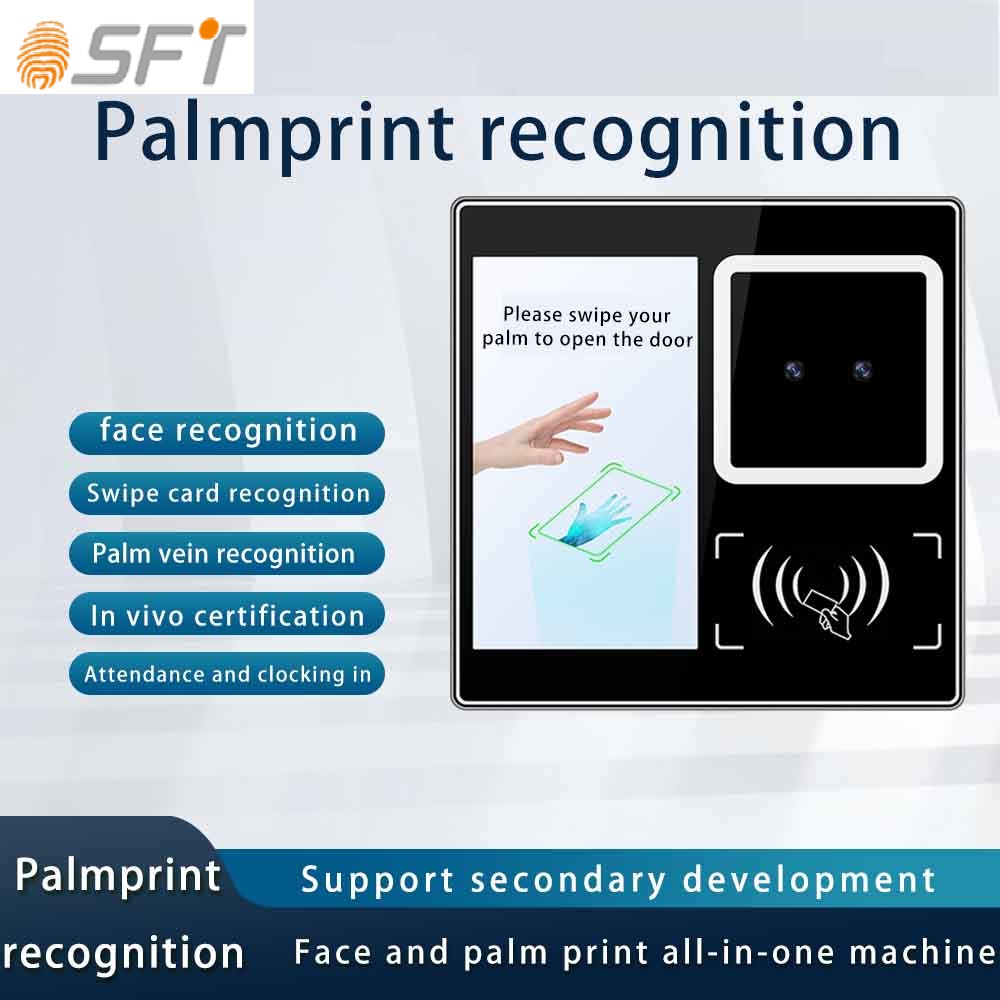

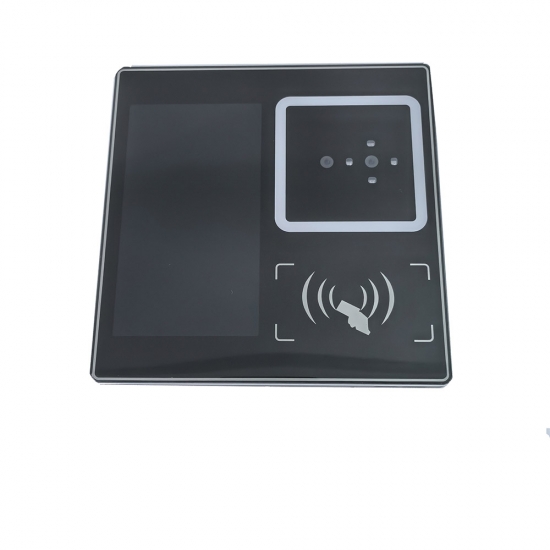

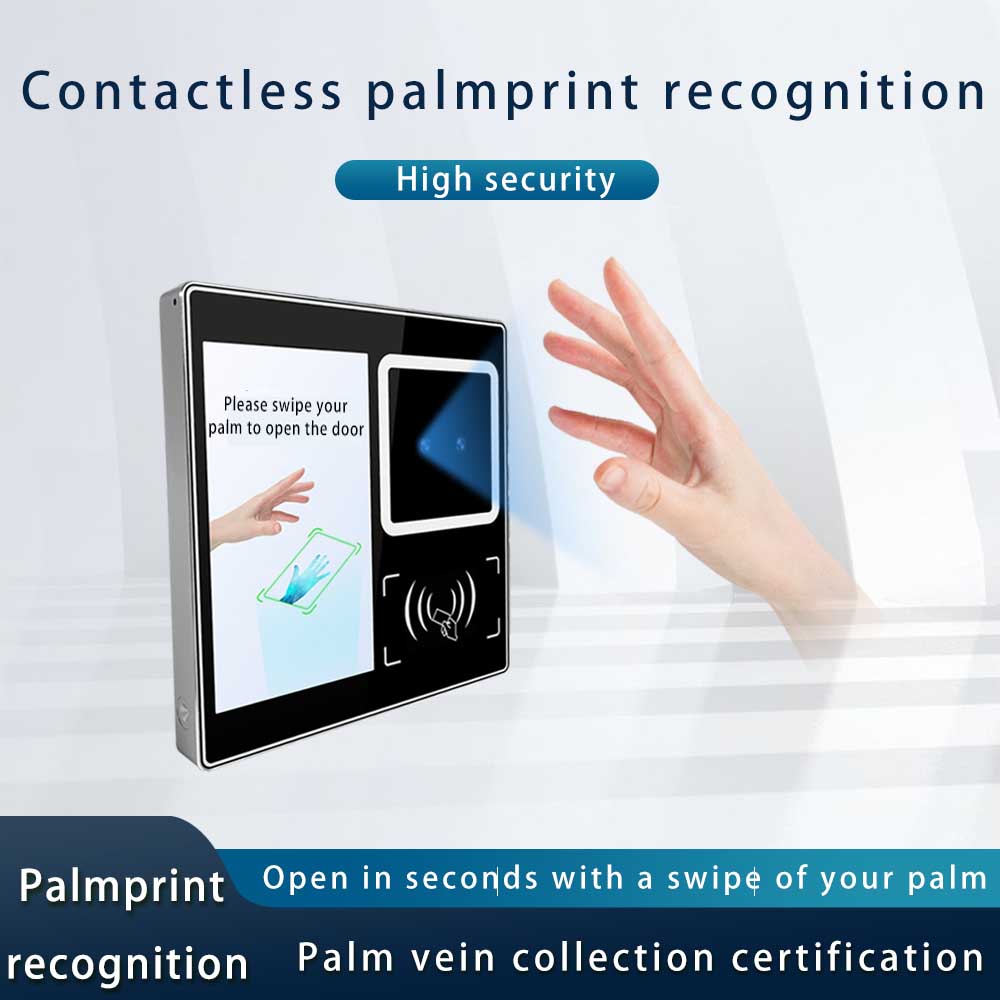

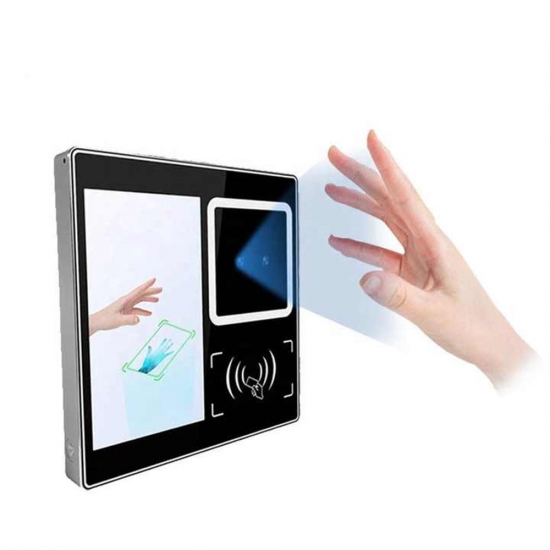

Square Size Android Binocular Facial Palm Vein Access Control Scanner

Product Name:  Square Size Android Binocular Facial Palm Vein Access Control Scanner model SF240

Main Features:

5-inch IPS fully laminated touch screen, LCD display

Android OS

Working Distance for Palm: 5-20cm

RK3568, quad-core, main frequency 2.0GHz

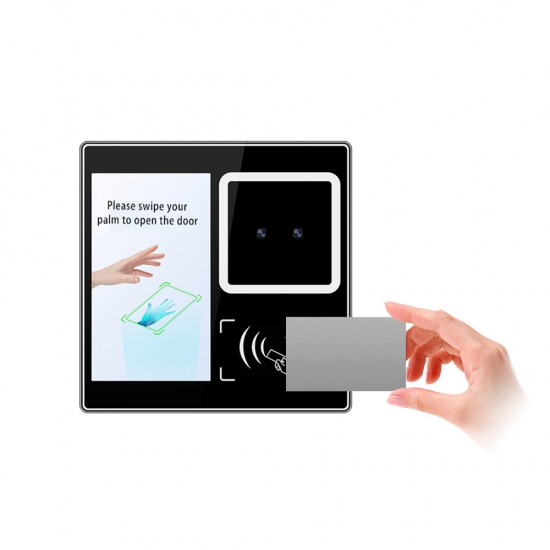

NFC,Binocular facial recognition and Palm vein supported together

Output format support MJPEG and YUV2

Binocular Facial Palm Vein Access control model SF240 full functional Display

SF240 is an access control machine combined with binocular palm vein, facial recognition and NFC contactless card swiping

SF240 is prefectly working with access control and time attendance system via cloud or offline

SF240 Android Palm vein time attendance machine is with highly secure palm vein technology

SF240output format supports  MJPEG and YUV2

Palm Vein Access control machine is widely used in banks, hospitals etc

Technical Specification:

Screen：IPS 5.0-inch LCD display screen; 720*1280pixels

CPU: RK3568, Quad core, main frequency 2.0GHz

OS: Android 11 OS upgradable

Internal storage: 2GB+16GB or 3GB+32GB for option

Camera: Bionuclar 2M pixels

Palm vein Algorithm: Support palm vein password verification

Facial recognition algorithm:Built-in or server based

Communication: WiFi 2.4G/Bluetooth 5.0/Ethernet/(optional 4G);

Interface USB Type C interface (USB 2.0 protocol); RS485

Working distance for palm: 5~20cm.

Module Parameters: Working distance for scanning code 3~20cm, support payment code and refund code.

Output format: MJPEG,YUV2

Operating voltage: 5V~12V

Supply current:  ≥1A

ID: Glass panel+aluminum alloy

Dimension: 183.4 * 88.4 * 19.2mm

Weight: 0.45KGS

Installation methods: Wall mounted installation/86 box installation/desktop; installation/embedded gate

Working Environment: Temperature －10℃～55℃

Humidity Relative humidity: 0% ~ 95%, no condensation.

Intensity of illumination: 0-50,000lux

Storage Environment: Temperature －40℃～85℃

Humidity Relative humidity: 10% ~ 95%, no condensation.

Normal working temperature rise Temperature rise of shell < 10℃ [on 3s and off 3s]

ESD level Contact discharge: 6 kV, air discharge ±10KV.

RE grade: Comply with GB 9254 CLASS B specification.

Working Life More than 3 years

Environmental Certification RoHS
