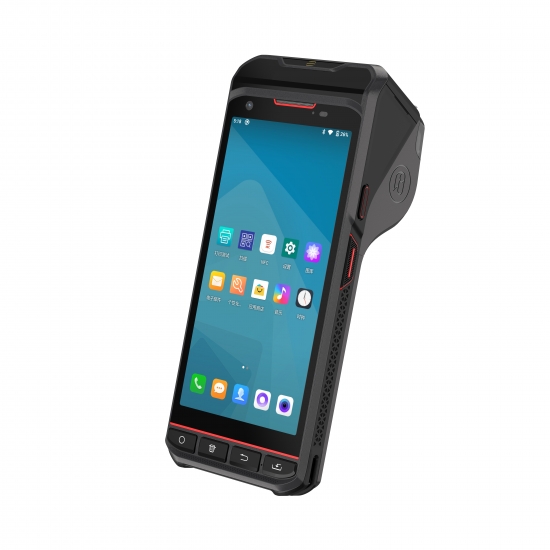

IP65 4G Android Barcode Scanner POS with Label Sticker Printer

Product Name: IP65 4G Android Barcode Scanner POS with Label Sticker Printer model SF5510

Main Features:

Octa core CPU 2.0Ghz

Android 13 upgradable OS

Bigger screen 5.5inches IPS 720*1440pixel

58*40mm paper roller thermal printer for receipts and label stickers

Honeywell N5703,N6703 or N6602 High quality barcode scanner

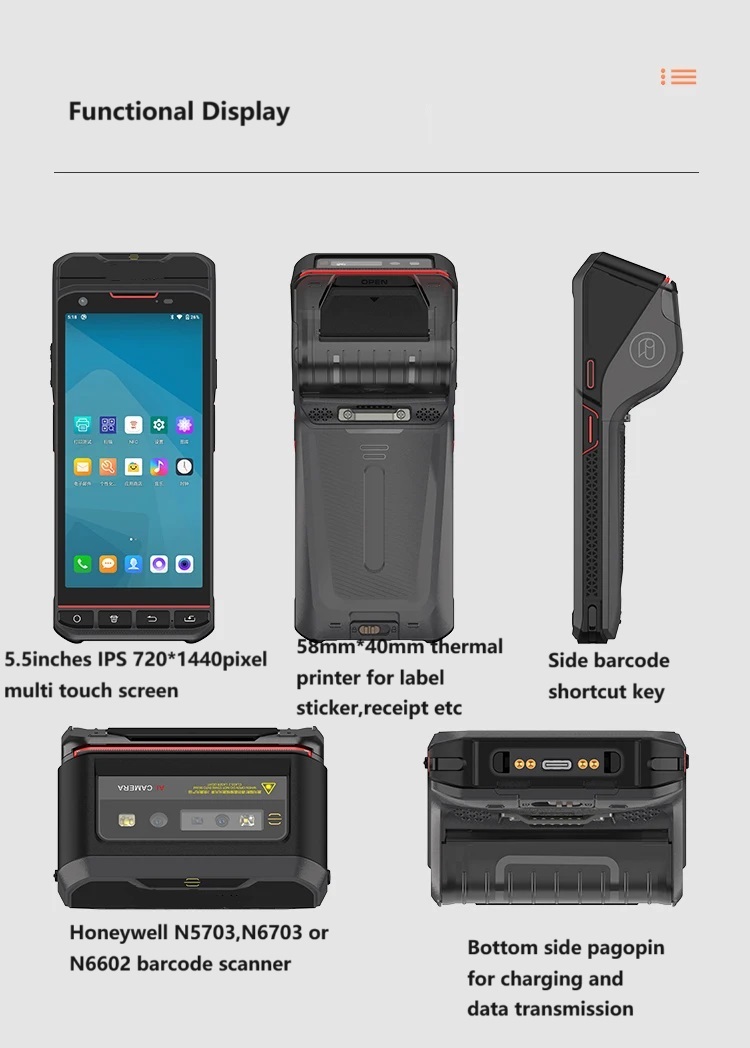

SF5510 Full Functional Display

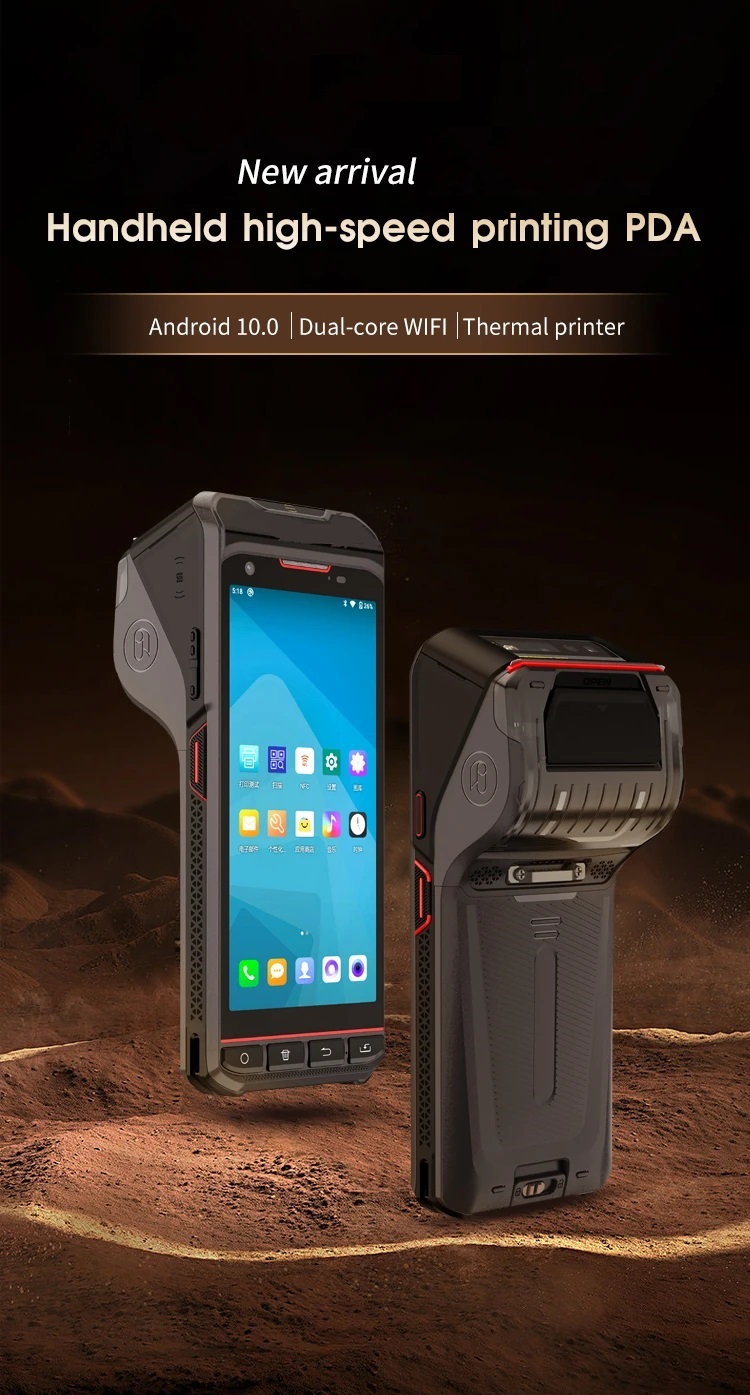

4G Android PDA SF5510 is with high printing speed up to 70mm/s

Android MPOS SF5510 is with Octa core 2.0Ghz CPU,4G network and dual wifi to enable seamless connection

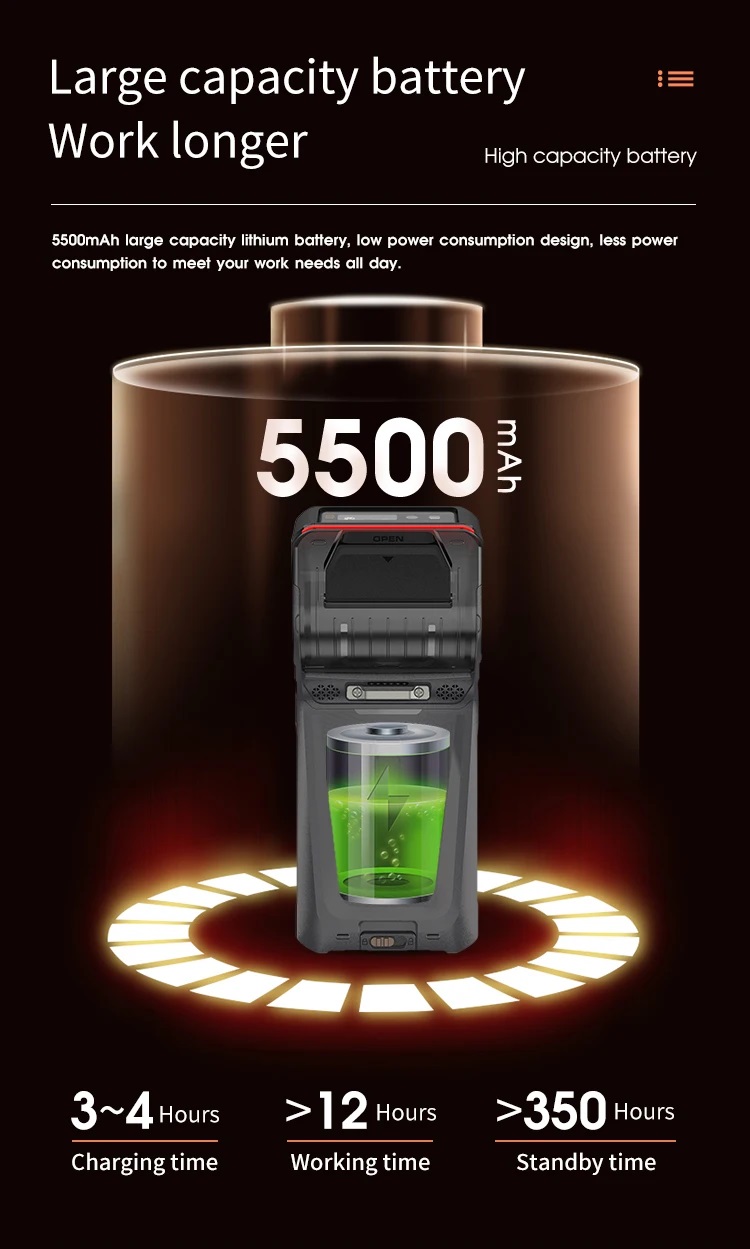

SF5510 is with big 5500mAh battery to ensure 12hours continous working without stop

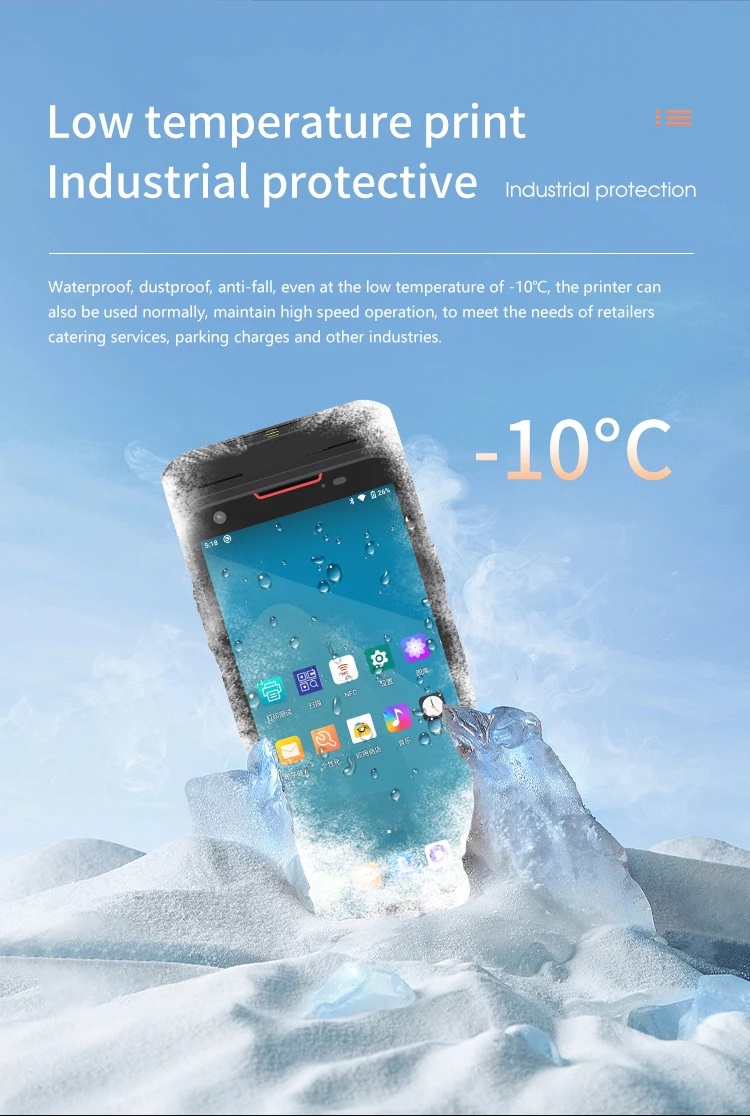

SF5510 is designed with IP65 standard for outdoor harsh environment use

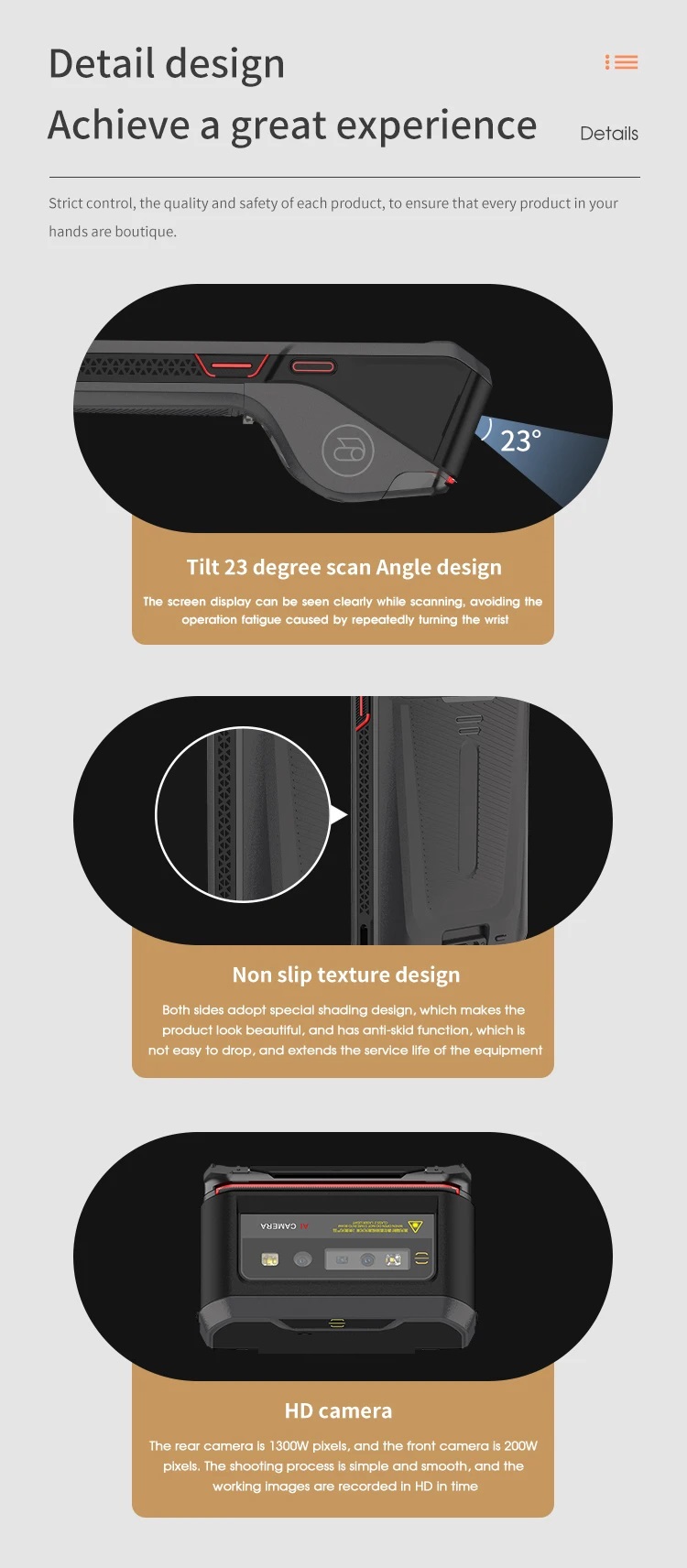

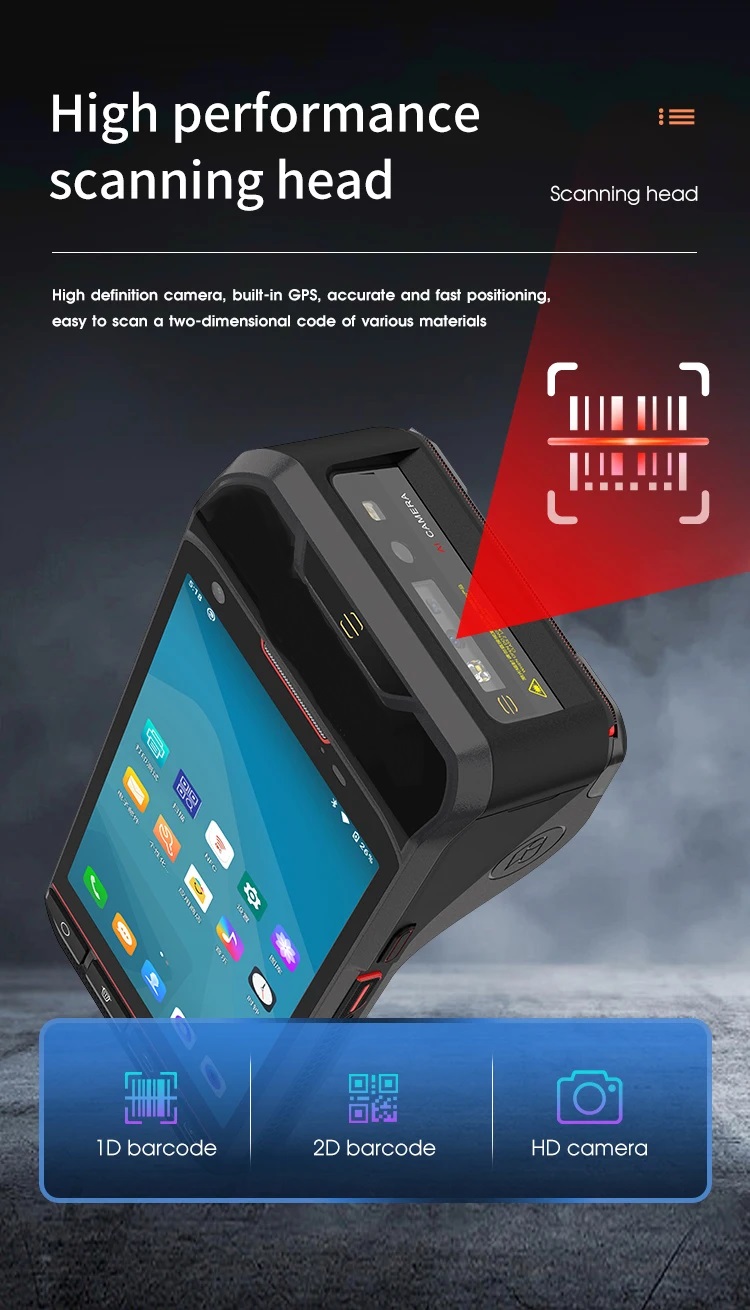

User friendly designed Barcode scanner

SF5510 is widely used in mobile enforcement, Parking, supermarkets and logistics etc

Technical Specifications:

CPU: Octa core: Cortex-A53 Octa core 64-bit 2.0GHz high-performance processor

Internal Storage: 2GB+16GB/4GB+64GB

Expand memory: Micro SD(TF) Supports up to 256GB

System: Android 10.0/Android 13.0

Data communication: WLAN Dual-band 2.4GHz / 5GHz, IEEE 802.11ac/a/b/g/n/d/e/h/i/j/k/r/v protocol

        2G：GSM（850/900/1800/1900mhz）

3G：WCDMA（850/900/1900/2100mhz）

4G：FDD:B1/B3/B4/B7/B8/B12/B20

        TDD:B38/B39/B40/B41

Bluetooth: Bluetooth 5.0+BLE up to 5-10 meters

GPS: GPS, Galileo, Glonass, Beidou

Dimensions: 179mm×74.5mm×22.5mm (the thinnest)

Weight:＜500g

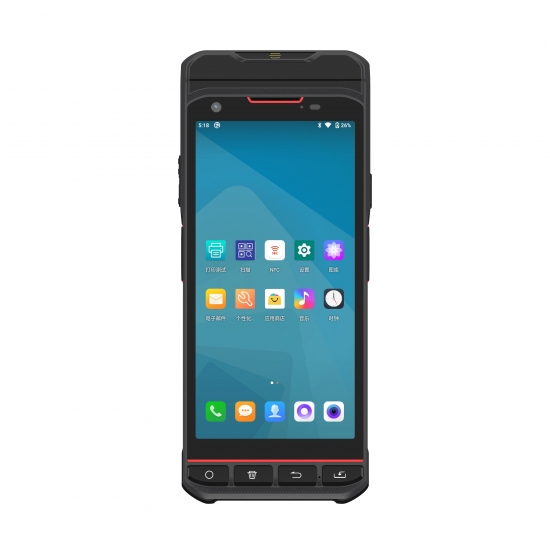

Display: 5.5 inch IPS color display with resolution 720×1440

Battery capacity: Rechargeable polymer battery 7.6V 2750mAh （Equal to 3.8V 5500mAh) ,removable Standby time >350 hours,Charging time 3-4H using standard power

adapter and data cable

Expansion :Card slot Micro SIM card x 1 , TF card × 1,PSAM×2（Optional）

Communication interface: Type-C USB x 1, OTG

Audio: Speaker (mono), Microphone, Receiver

main keys: Home key, Delete key, Back key,Confirm key Side keys

Silicone keys: Power key, Volume +/- key, Scan key ×2

Sensors: Gravity sensor, Light sensor, Proximity sensor,Vibration motor

Data collection

Barcode scanning (Optional)

2D Scanning engine: Honeywell N5703 N6703,6602

1D Symbologies: UPC/EAN, Code128, Code39, Code93, Code11, Interleaved 2 of 5, Discrete 2 of 5, Chinese 2 of 5, Codabar, MSI, RSS,etc.

Postal Codes:USPS Planet, USPS Postnet, China Post, Korea Post, Australian Postal, Japan Postal, Dutch Postal (KIX), Royal Mail, Canadian Customs,etc.

2D Symbologies: PDF417, MicroPDF417, Composite, RSS, TLC-39, Datamatrix, QR code, Micro QR code, Aztec, MaxiCode, HanXi,etc.

Thermal sticker printer: Standard:Printing speed up to 70mm/s

 Paper type:Support for Sticker or label Black mark printing

Camera: Rear camera 13MP HD camera auto focus, 2.0M pixel front camera

ID Card(Optional)

Radio frequency technology: Comply with ISO/IEC 14443 type B standard, GA450-2003 General Technical Requirements for desktop ID card Reader, 1GA450-2003 General Technical Requirements for desktop ID Card Reader Amendment No. 1 (draft)

Security module: Radio frequency technology

Distance: 0~5cm

Reading time:＜1.55s

Frequency: 13.5MHz±7kHz

NFC (Optional): Frequency: 13.56MHz Protocol,ISO14443A/B, 15693

User environment

Operating temperature: -20℃ - 55℃

Storage temperature : -40℃ - 70℃

Environment humidity: 5%RH--95%RH(no condensation)

Drop specification: 6 sides Supports 1.2 meters drops on the marble within the operating temperature

Rolling test: 0.5m rolling for 6 sides, can still work steadily

Sealing: IP65

Accessories: Adapter, Data cable, Protective film, Instruction manual
