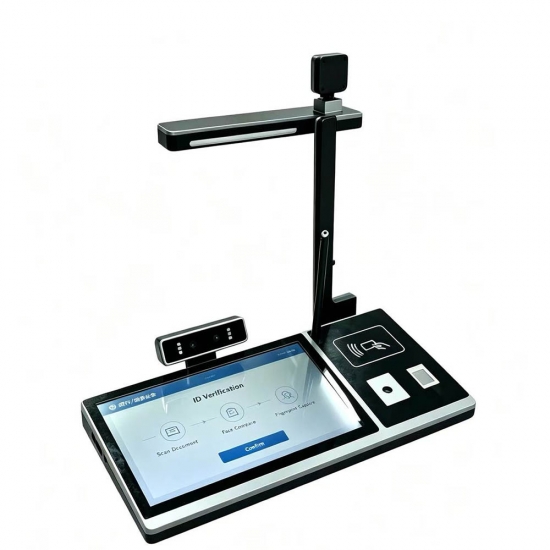

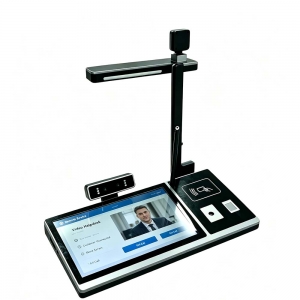

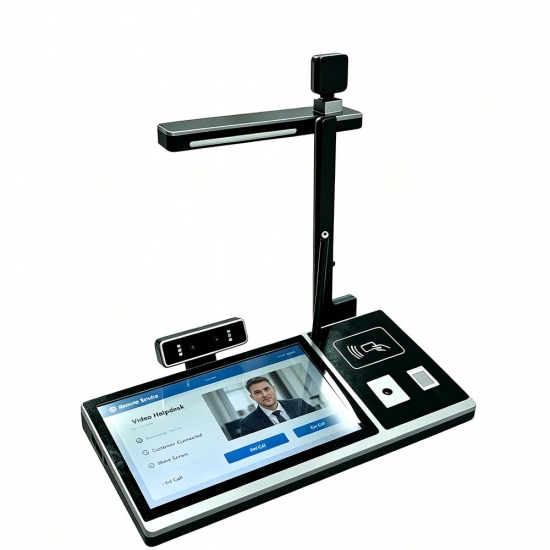

Android 10.1inch Bank Electromagnetic Signature PAD Device with Passport and document OCR

Product Name: Android 10.1inch Bank Electromagnetic Signature PAD Device with Passport and document OCR model SF102A

Main Features:

Both android and displink OS supported

Electromagnetic signature screen and Capactive touch supported

Smart ISO7816 chip card supported

OCR for documentation and also passport scanning and save function

4G SIM supported for option

E-Bank electromagnetric screen signature device full functional display

SF102A supports FBI certified fingerprint scanner and also documentation OCR and Passport widely used in different banks.

All in one Secure  biometric KYC Terminal with E-signature integrated with facial recognition, FBI certified fingerprint scanner

All-in-one Android signature terminal with OCR, FBI fingerprint scanner & NFC. Streamline KYC & onboarding with our 10.1" electromagnetic e-signature terminal.Equip your front desk with multi-functional signature hardware. Request a quote today!

Capture signatures, scan passports, and verify IDs on one secure Android device.

Streamline document scanning, ID verification, and digital signing with one Android device.The ultimate KYC terminal for banks, hotels, and government

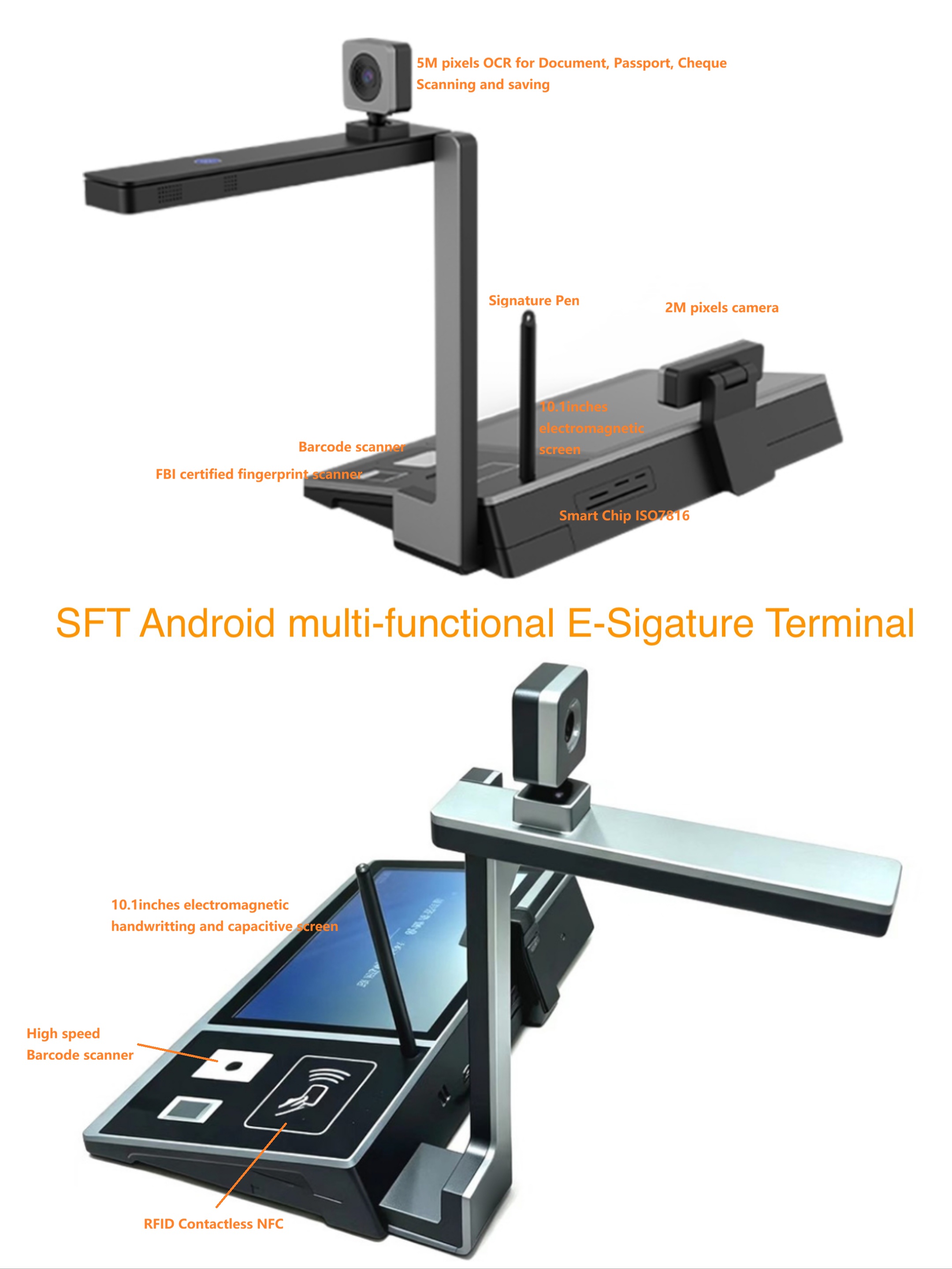

SFT Android multi-functional e-signature terminal with 10.1-inch screen, barcode scanner, and FBI certified fingerprint reader model SF102A Based on its advanced features (such as fingerprint scanning, passport/ID OCR, smart card reading, and e-signatures), the SF102A terminal is primarily used in the following industries:

Banking & Finance

Used for KYC (Know Your Customer) identity verification, cheque scanning, opening new accounts, and capturing secure digital signatures for loans and transactions.

Government & Public Services

Ideal for citizen identity verification, passport reading at border control or immigration, and signing official digital documents.

Hospitality & Hotels

Perfect for front-desk check-ins, quickly scanning guest passports or national IDs, and capturing signatures for room agreements.

Healthcare

Used at hospital reception desks for fast patient registration, verifying health insurance smart cards, and securely signing medical consent forms.

Telecommunications

Utilized by mobile network operators to verify customer identities and capture signatures when registering new SIM cards or phone contracts.

 Retail & POS

Serves as an advanced Point of Sale terminal for scanning payment QR codes, reading membership cards via NFC, and digital receipt signing.

Detailed Specification:

Operating System: Android 11

CPU: Quad-core 64-bit Cortex-A55, up to 2.0 GHz

GPU: ARM G52 2EE with 2D acceleration

NPU: Supports 0.8 TOPS compute power

Memory: 2GB RAM + 16GB ROM (4GB + 32GB optional)

Network: WiFi 802.11 a/b/g/n/ac

Display Specifications

Screen Size: 10.1 inches TFT LCD IPS

Resolution: 1280 x 800, 16:10 ratio

Brightness: 220 cd/m²

Contrast Ratio: 800:1

Touch Panel: Electromagnetic handwriting and capacitive touch

Handwriting & Signature

Writing Area: Full screen, 216.96 x 135.6 mm

Pressure Levels: 2048 levels

Position Accuracy: Center ±0.5 mm, Edges ±2 mm

Pen Type: Wireless stylus

Security: Signature encryption optional

Biometrics & Identification

Fingerprint: Capacitive sensor with live finger detection

Camera: 2 Megapixels

Barcode Scanner: Fast reading of document barcodes, QR codes, and payment codes

NFC Reader: Supports 13.56MHz and Mifare

Smart Card: Supports ISO7816 chip cards

OCR Scanning: Reads ID cards, passports, and captures cheque images

Physical & Electrical

Dimensions: 322 x 175 x 19 mm

Weight: 1.09 kg

Power Input: 12V 2A

Connection: Detachable 2-meter USB and DC cable

Audio: Built-in 1.5W speaker

Accessories: Power adapter, wireless stylus, pen tether, 2 extra nibs

Environmental Standards

Operating Temperature: -10°C to 50°C

Operating Humidity: 10% to 85% RH

Certifications: RoHS compliant, CCC certified
