Desktop Ten Finger FAP60 Android Biometric Fingerprint Civil Smart ID Enrollment Terminal

Product Name: Desktop Ten Finger FAP60 Android Biometric Fingerprint Civil Smart ID Enrollment Terminal Model SF521

Main Description:

Android 7.1

RK3368 Octa-core 1.5GHz

4G FDD Network Frequency
Suprema Ten-finger (4 + 4 + 2) Biometric Scanner;FBI IAFIS Appendix F and Mobile ID FAP60 Certification
1GB+8GB or 2GB+16GB as option

NFC 13.56MHz Type A/B

2.0M camera Auto focus

Big Battery Compacity up to 10000mAh

10inches Touch Screen

Desktop android National ID biometric Enrollment Teminal model SF521 Overview

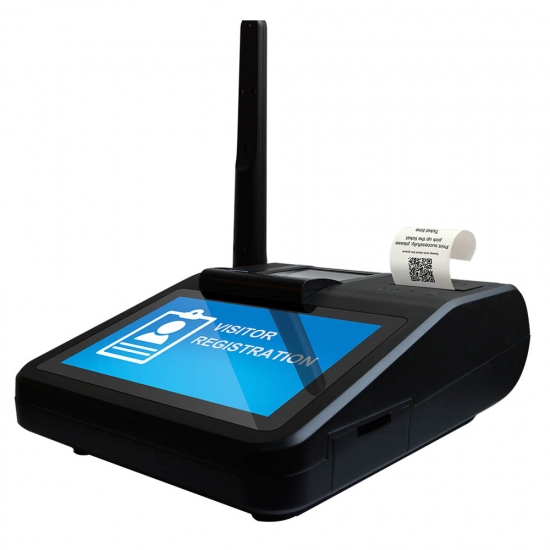

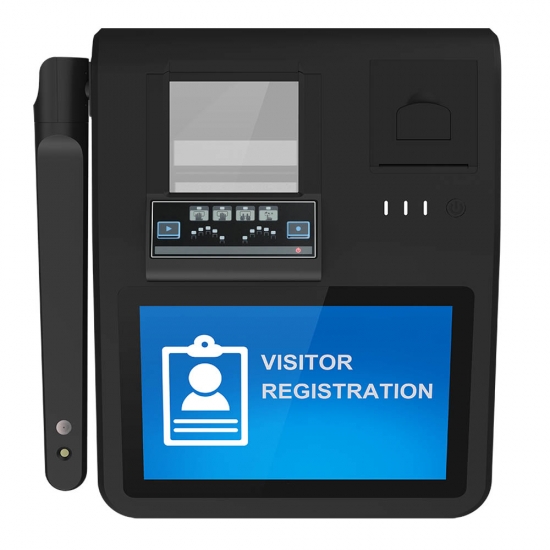

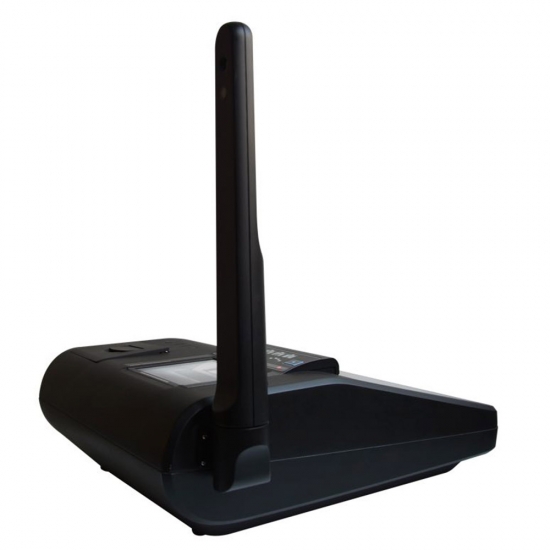

SFT All in one SF521 can be known as a desktop biometric workstation in the residents' ID enrollment and registration program since it is outfitted with the ten-fingerprint reader, and adjustable camera.

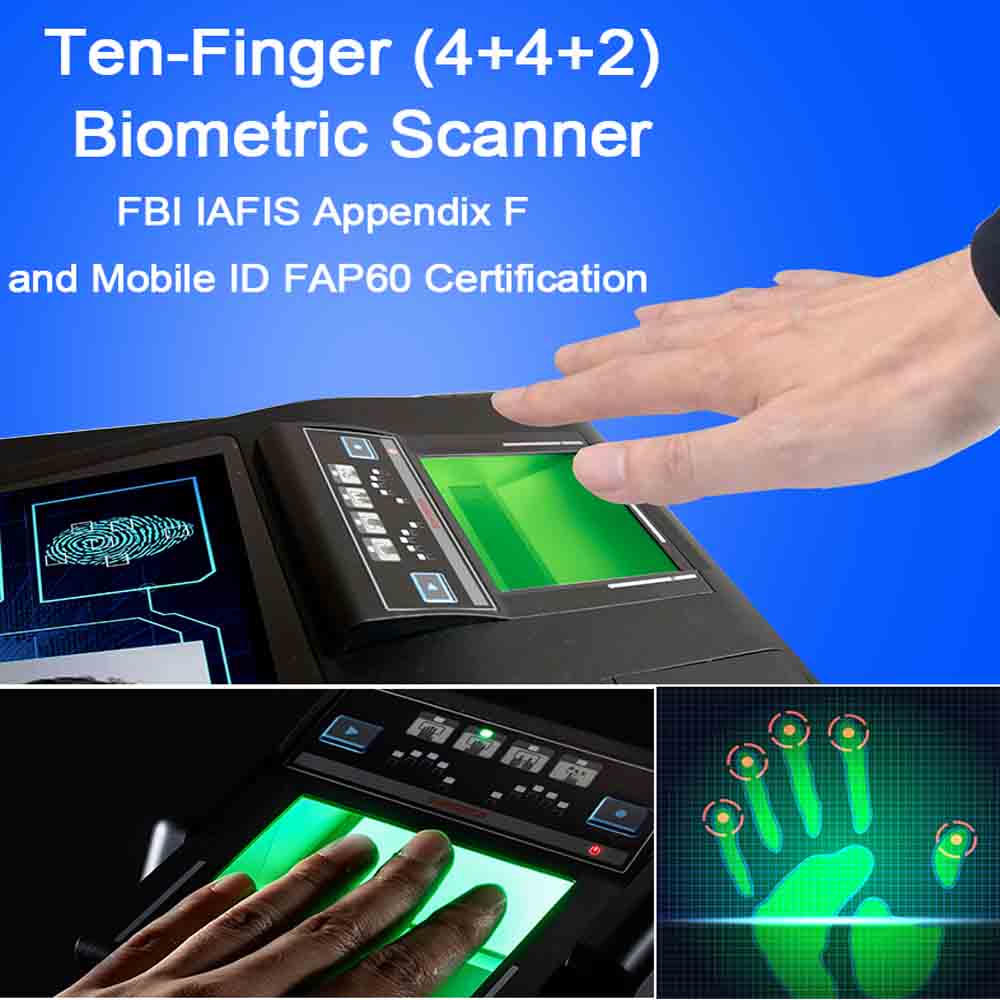

Ten-Finger Biometric Scanner built-in; SF521 is integrated with a large optical fingerprint scanner, which supports capturing 4 fingers, even to 10 fingers.And it is certified the FBI IAFIS Appendix F and mobile ID FAP60 certification.

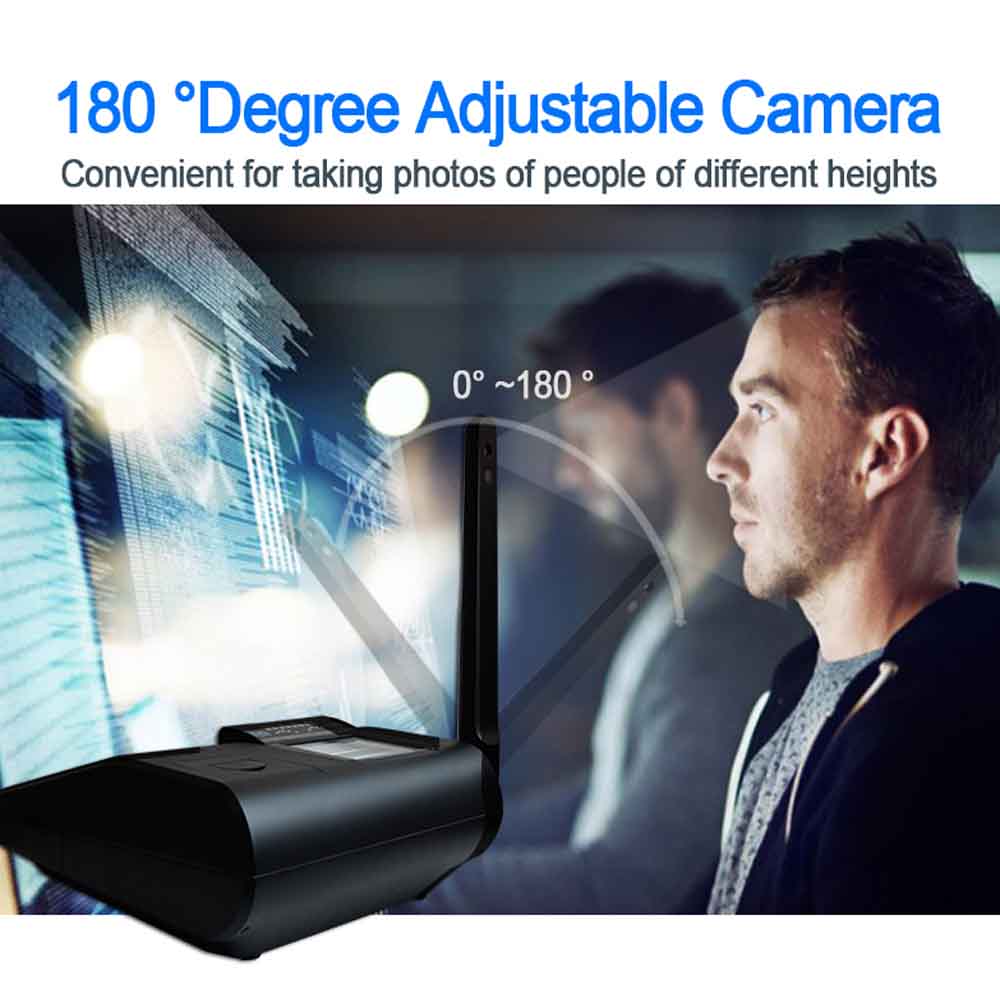

Fingerprint Enrollment terminal SF521 Adjustable Portrait Collection Camera can collect the photograph and the finger  of the person.  Camera is  adjustable for taking photos of the people at a different height.

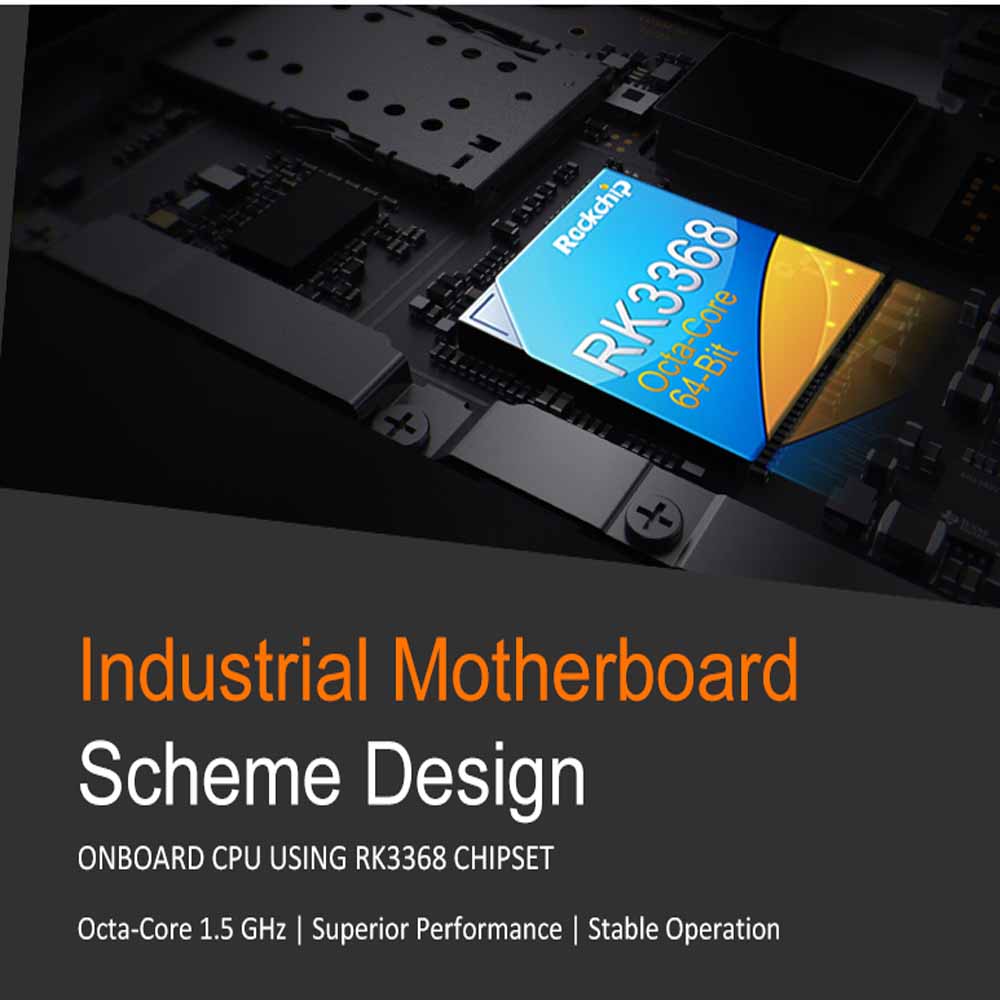

SF521 is with industrial motherboard design,using the oct-core RK3368 chipset

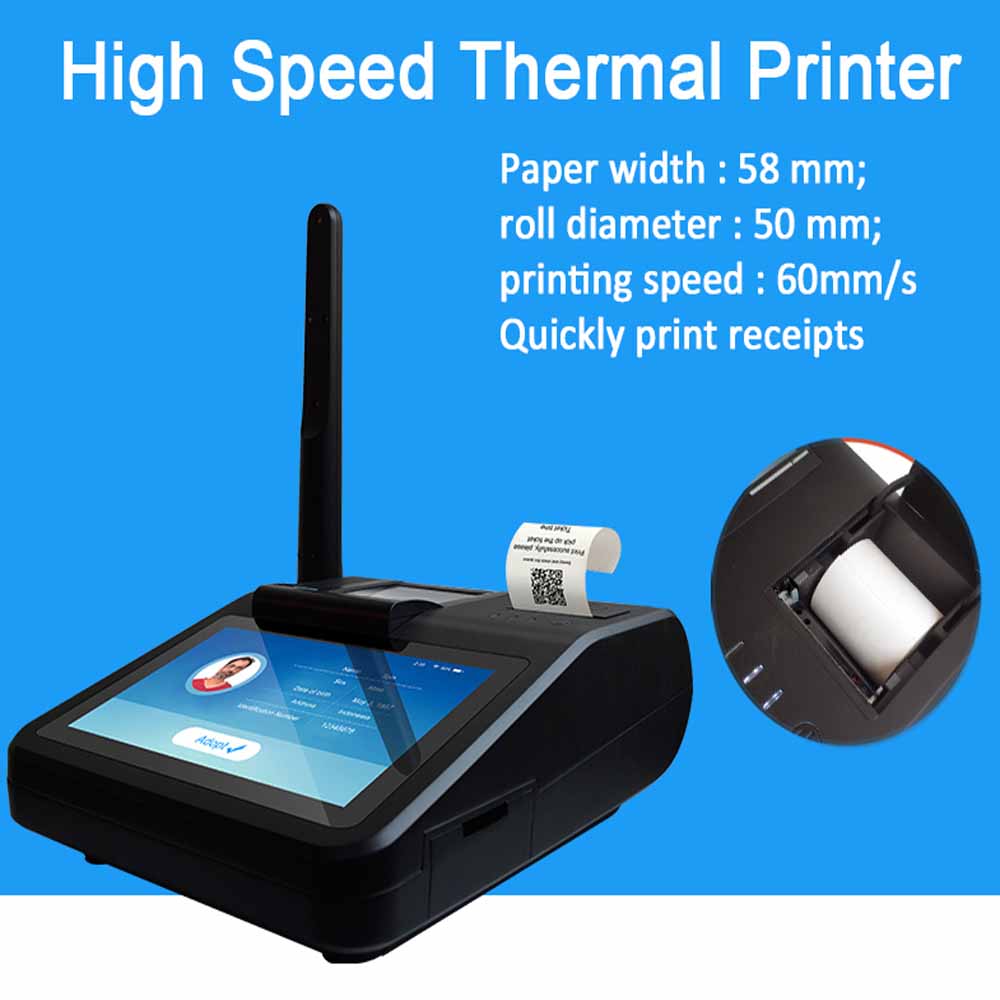

Built-in thermal printer is 58mm paper width and 50mm roll diameter,which can be used to printing the voter number, the unique identification number(UIN), etc

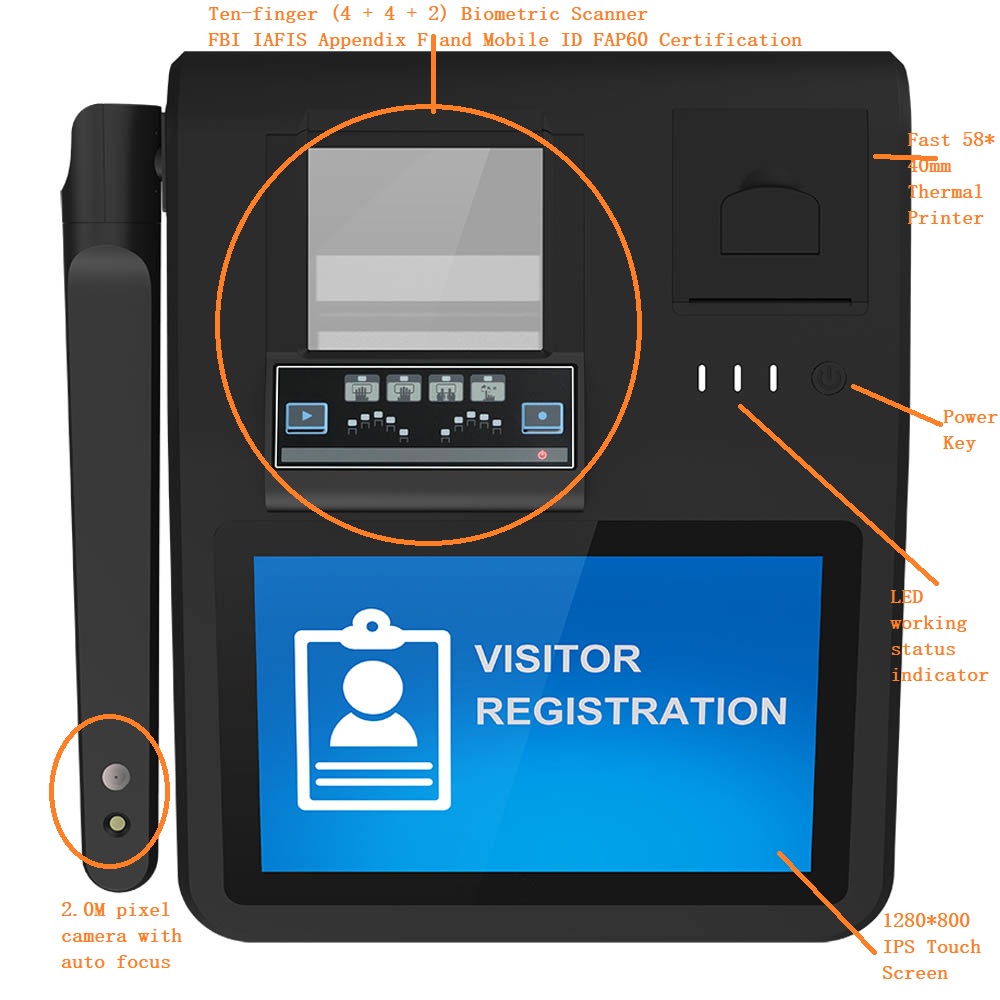

10Inches Desktop Android Biometric Smart ID enrollment Device SF521 Features:

Processor: RK3368 Octa-core 1.5GHz；
Internal Storage:1GB/8GB or 2GB+16GB as option；
Fingerprint Module： Suprema Ten-finger (4 + 4 + 2) Biometric Scanner;FBI IAFIS Appendix F and Mobile ID FAP60 Certification
Wireless Transfer: 4G/3G/2G;WIFI 802.11b/g/n ;Bluetooth4.0；
Network Frequency：GSM/WCDMA/FDD

Display：10 inches Capacitive touch screen,1280*800pixel
Camera: Adjustable angle 2.0M Auto-focus
Battery：7.4V, 10000mAH

NFC supported

GPS: Built-in

Sim slot: 1 sim or 2 sim for option

Peripheral Ports: 2 USB Host;1 micro USB;1 RJ45

Power Supply: 9V/2.5A

Audio: Digital Audio Speaker

Thermal Printer: Paper  width: 58mm*50mm
Environmental: Operating temperature: -5℃ ~ 45℃

Storage temperature: -25℃ ~ 60℃
