Cheap FBI Certified Presidential Election 4 4 2 Multiple live roll finger Scanner

Product Name: Cheap FBI Certified Presidential Election 4 4 2 Multiple live roll finger Scanner Model SF500

Technical Specification:

FP capacity: 1,000Sensor size: 21mm x 19mm    Imaging area: Flat four fingers up to 3,2” x 3,0” - Two flat thumbs up to 3,2” x 3,0”

Active scanning Windows Rolled finger up to 1,6” x 1,6” - 500 dpi

SENSOR Optical Sensor

Dimension: Standard Top Version: 148 x 152 x 148 mm

Flat Top Version: 148 x 152 x 121 mm

International Stardard "FBI IAFIS IQS Appendix F (FAP60) certified
ANSI/NIST-ITL 1-2007/2011
ISO/IEC FCD 19794-4
ANSI/NIST-ITL 1-2000
ANSI/NIST-ITL 1-2000 Interpol Implementation
Communication USB2.0
Operating System: Microsoft Windows up to Win10 in 32-bit and 64-bit configuration
Linux Ubuntu and Fedora distributions in 32-bit and 64-bit configuration
Android
SDK: SW  GB_FFD SW Antispoofing detection
working voltage Voltage: 3.3/5V
Current Current:200ma
Working Environment:Working temperature ：0 ℃+ 55 ℃
Working Humidity：17%– 96%

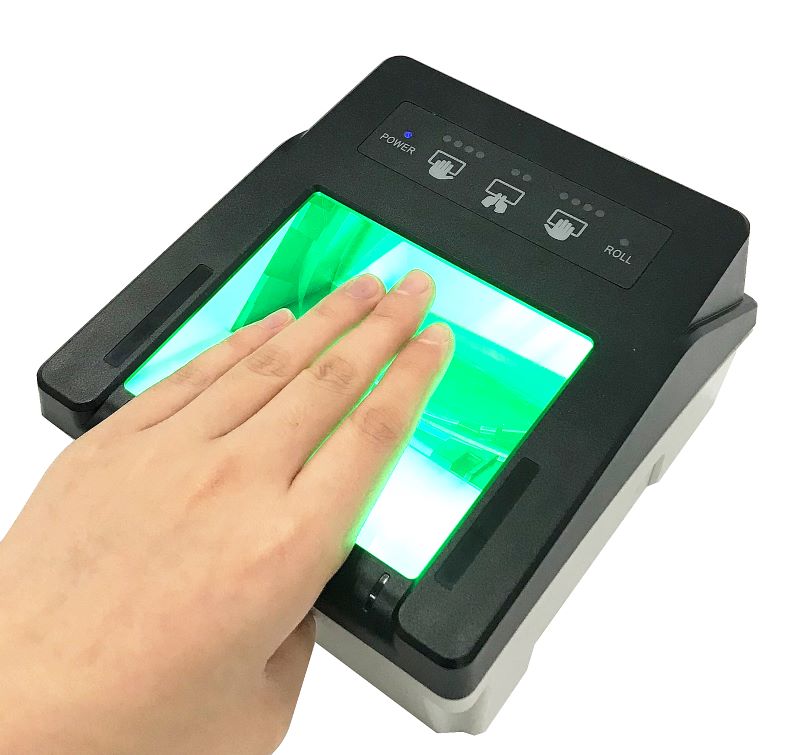

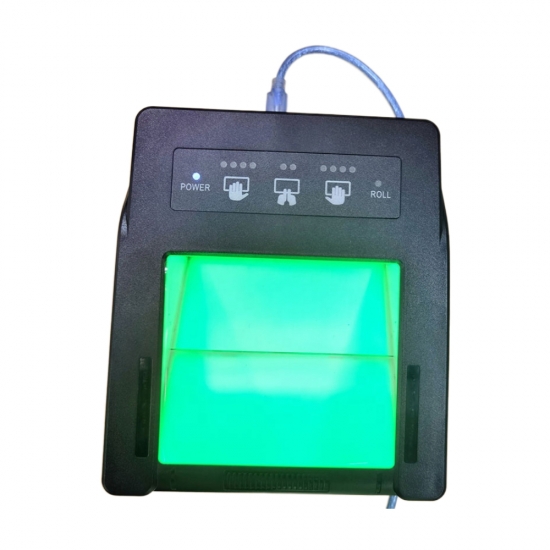

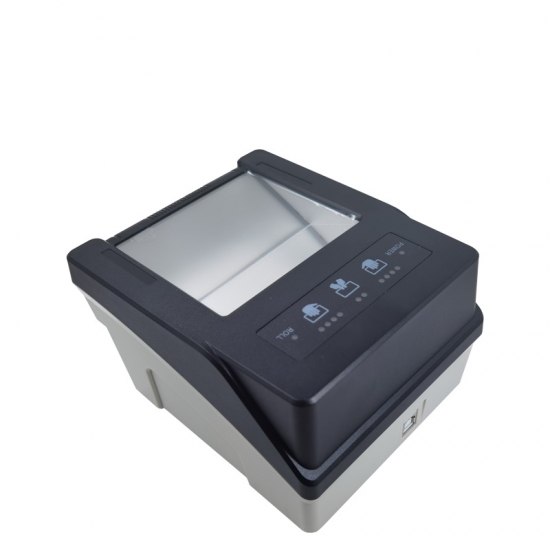

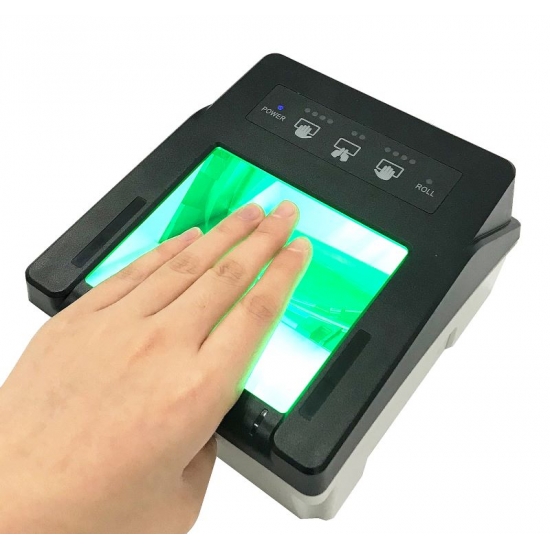

SF500 Full Functional Display

4 4 2 Fingerprint scanner is FBI certified to be used in presidential election by election committee with 4  4 2 fingers capture and rolling finger capture capability

SF500 is user friendly designed and with small size for easy carrying out

Packing Information:

Acessories:

1pcs*USB fingerprint reader  1pcs* user manual

Dimension: Standard Top Version: 148*152*148mm

                   Flat Top Version: 148*152*121mm

Weight: 1.25KGS/pcs

Detailed Technical:

Resolution: 500 dpi ±1%
Active Platen Area : 3.2 X 3.0 in.（81.3 X 76.2 mm）
Platen Size: 3.62 X 3.11 in.  (92 X 79mm)
Rolled Area: 1.6X 1.5 in.  (40.64x 38.1 mm)
Image Pixel Size: 1600 X 1500 pixel（Flat Image）800 X 750 pixel（Rolled Image)
Image Distortion: ≤1%
Image gray Range: ≥200 grayscales  Grayscale: 8-bit, 256 levels
Collection Rate: Single finger rolling frame rate: 20 Rate/sec. Flat four fingers frame rate: 5 Rate/sec.
Operating Temperature: 0 ℃～50℃
Storage Temperature: -20℃～60℃
Relative Humidity: 10～90%
Interface: USB 2.0
Capture Mechanism: Automatic
Weight: 2.76 lbs. (1.25 kg)

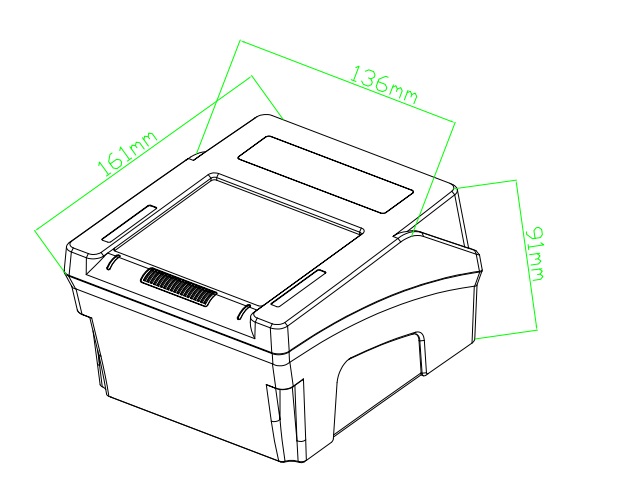

Dimensions : 5.35 X 6.34 X 3.6 in. (136 X 161 X 91 mm)

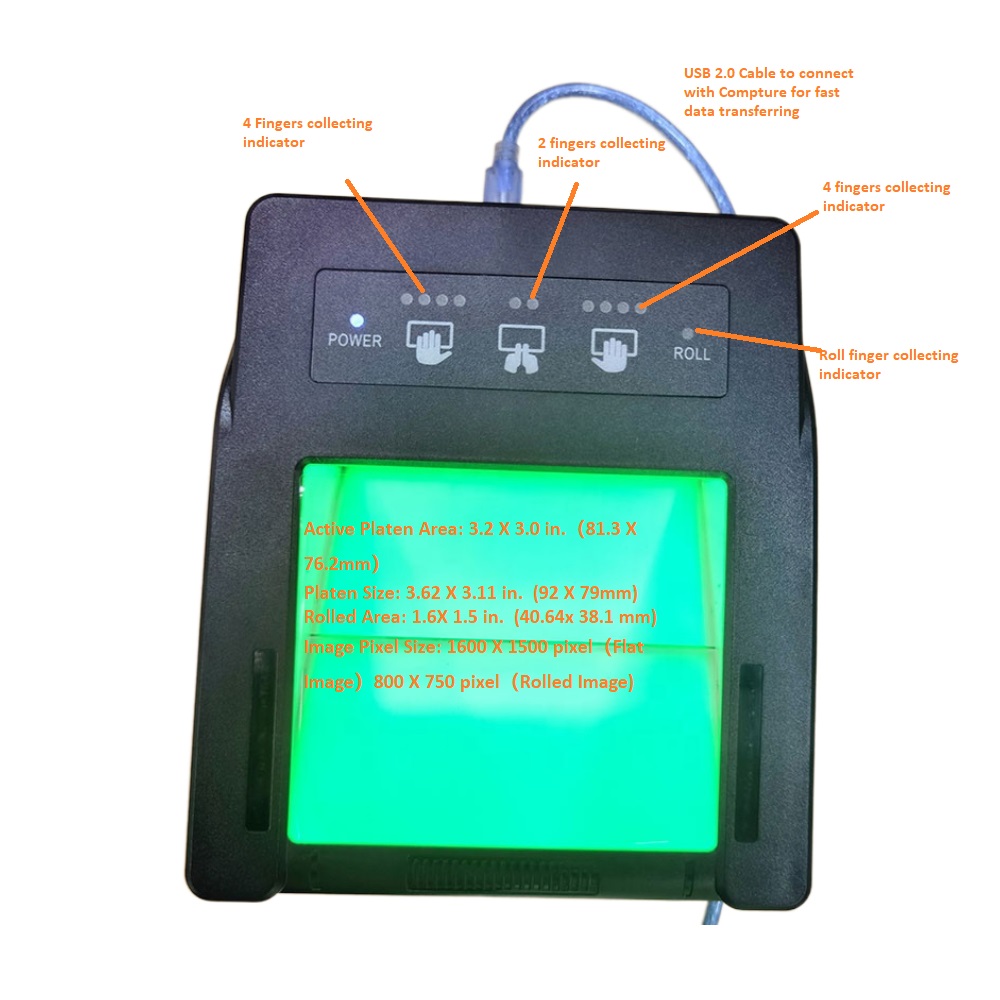

LED Indicators: Power, status, and fingerprint indications
Capture Format: Single fingerprint rolls, single fingerprint flats, four fingers, two thumbs

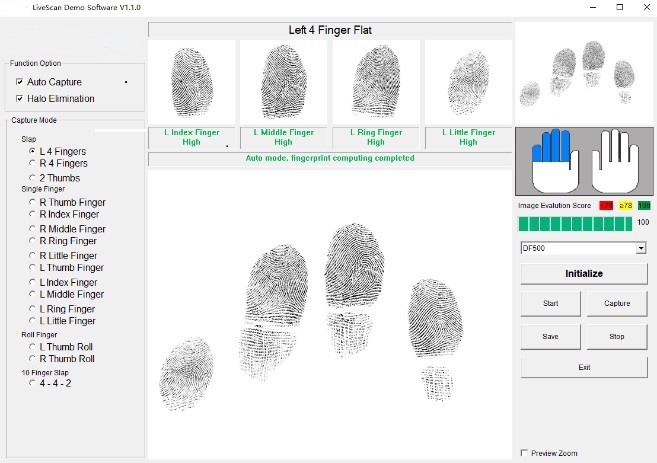

Standard Software : FBI standard processing software; Capture 14 NIST fingerprint images ;FBI standard WSQ compression module
SMTP; FTP;XML and NIST interface module; Quality check and sequence check module;Segmentation of flats into single fingerprint images
Available Full Set SDKs
Minimum Computer Specifications: Intel® Core™ i3 or higher; 2 GB RAM or higher;
80 GB hard drive or higher; USB 2.0; Windows® 7 or higher
Certifications: FBI Standard CJIS-RS-0010 (V7) IAFIS Image Quality Specifications (IQS) for Scanners Appendix F
ANSI/NIST ITL-1-2007; FCC/CE
