2D Barcode Scanner
Sensitive Wired 2D QR  Barcode Scanner USB/KB/COM Supported Sensitive Wired 2D QR  Barcode Scanner USB/KB/COM Supported

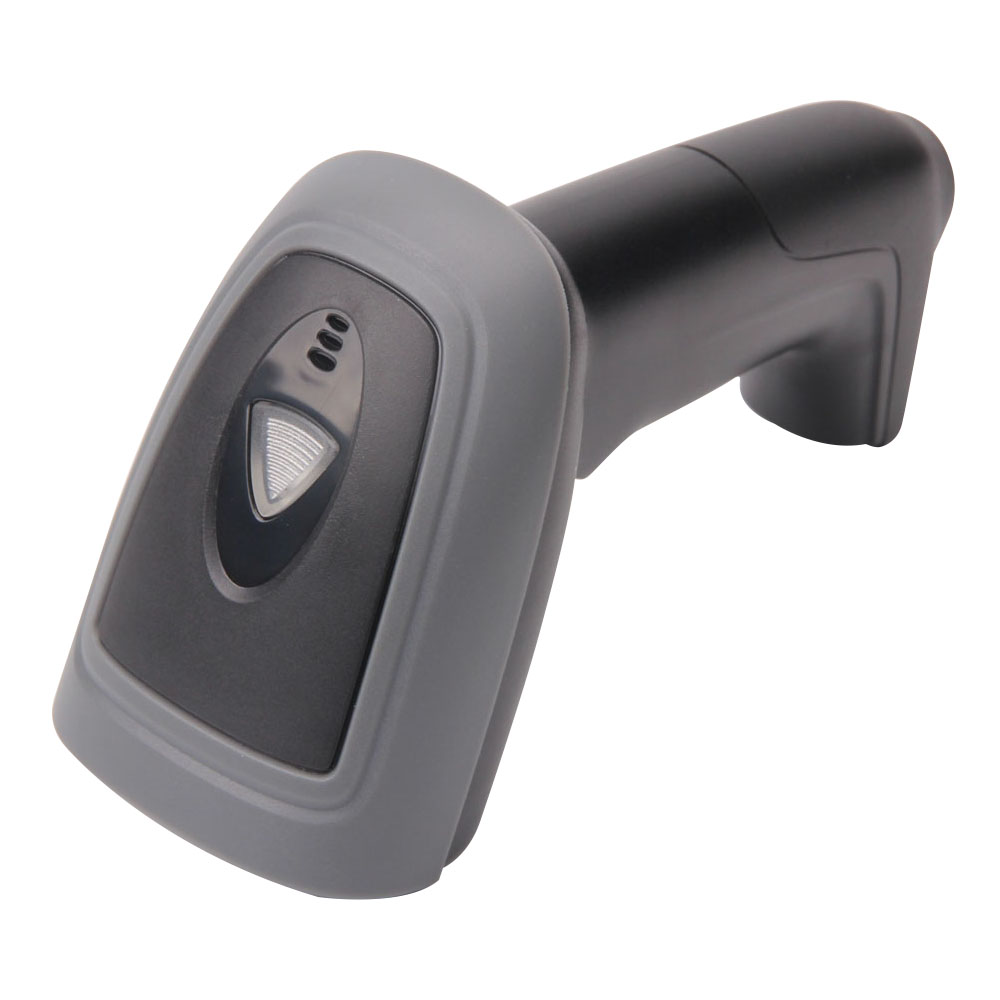

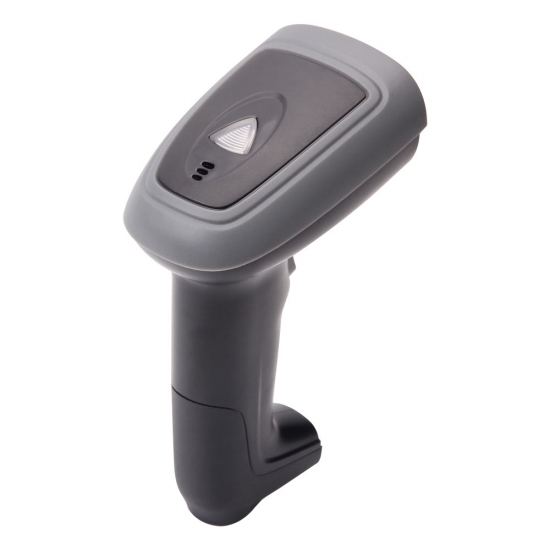

Sensitive Wired 2D QR Barcode Scanner USB/KB/COM Supported

  • Model No. :

    SF1900
  • Sensitive Wired 2D QR  Barcode Scanner USB/KB/COM Supported model SF1900with high quality Laser Engine, which could read both 1D and 2D codes


contact now
Description
Product Name: Sensitive Wired 2D QR  Barcode Scanner Model SF1900


Main Description:

Long Lifespan Button


Holder Optional


Reliable Laser Engine


Read 2D and All Standard 1D Bar Codes


Traditional Durable Interface


1.5M Shock Resistance


USB/KB/COM Supported


SF1900 2D Laser Barcode Scanner


aplikasi barcode scanner


Features:

Physical Parameters:

Material: ABS+PC+TPU

Size: L*W*H :170mm*97mm*68mm

Power supply:DC 5V


Performance Parameter:

Interface:USB, USB virtual RS232

Sensor: Planar CMOS sensor

Light source: Red CCD ,white LED (lighting)

Processor:32-bit ARM MCU

Decoding Capability:1D: Codabar, Code39, Code32, InterLeaved 2 of 5, Industrial 2 of 5, Matrix 2 of 5, Code93, Code128, Gs1-128, UPC-A, UPC-E, EAN/JAN-8, EAN/JAN-13, ISSN, GS1 DATABAR(RSS14), GS1 DATABAR Limited, Gs1databar Expanded

2D: PDF417, QR CODE, MICRO QR, DATAMATRIX, AZTEC CODE

Resolution:Code39 3mil, QR 8.7mil, PDF417 5mil,PCS45%

Depth of field:

5MIL   CODE39: 3--11CM

13MIL  UPC-A: 4--27CM

20MIL  CODE39: 7.5--35CM

6.7MIL PDF417: 3.5--9CM

10MIL  DATAMATRIX: 3--10CM

15MIL  DATAMATRIX: 3--17CM

20MIL  QR: 3--21CM

Scanning Speed:300scans/sec

Scanning Method: Manualor auto-sensing

Scanning area: 5 * 5 cm² -- 30 * 30 cm²

Prompting Mode: Buzzer ,indicator light (LED)

Printing contrast: No lower than 35%

Scanning angle:Roll0-360°;pitch±65°;yaw±60°

Environment Parameters

IP Grade: IP 54

Operating temperature:0 to 50 ºC / 32 to 122 ºF

Storage temperature: 0 to 50 ºC / 32 to 122 ºF

Operating humidity: 5 - 95% (non-condensing)

ESD Protection: 15KV air discharge

Shock resistance:1.5Meter free fall on concrete surface


SF1900 Rugged long distance barcode scanner could be used widely in warehouses, logistics, supermarkets, and Retailing shops....
