Barcode laser scanner
Rugged Handheld USB 1D and 2D Barcode Scanner Rugged Handheld USB 1D and 2D Barcode Scanner Rugged Handheld USB 1D and 2D Barcode Scanner

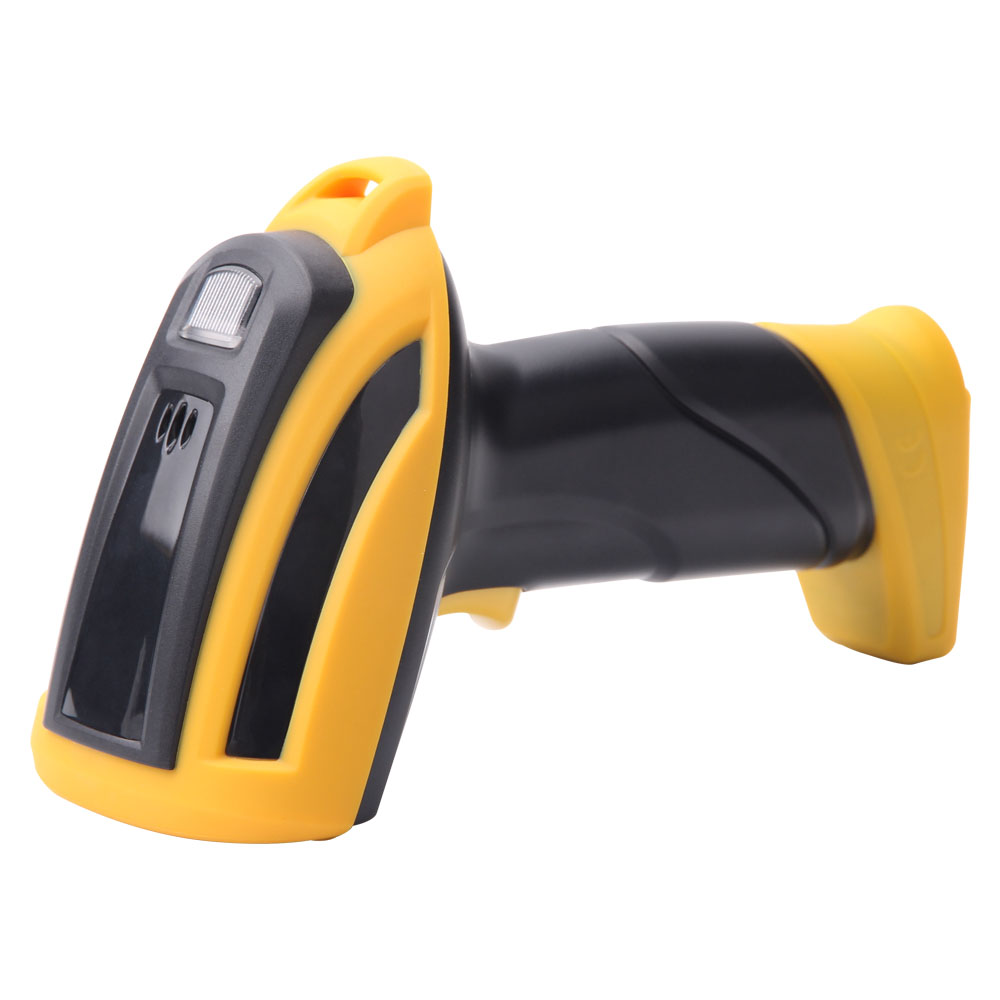

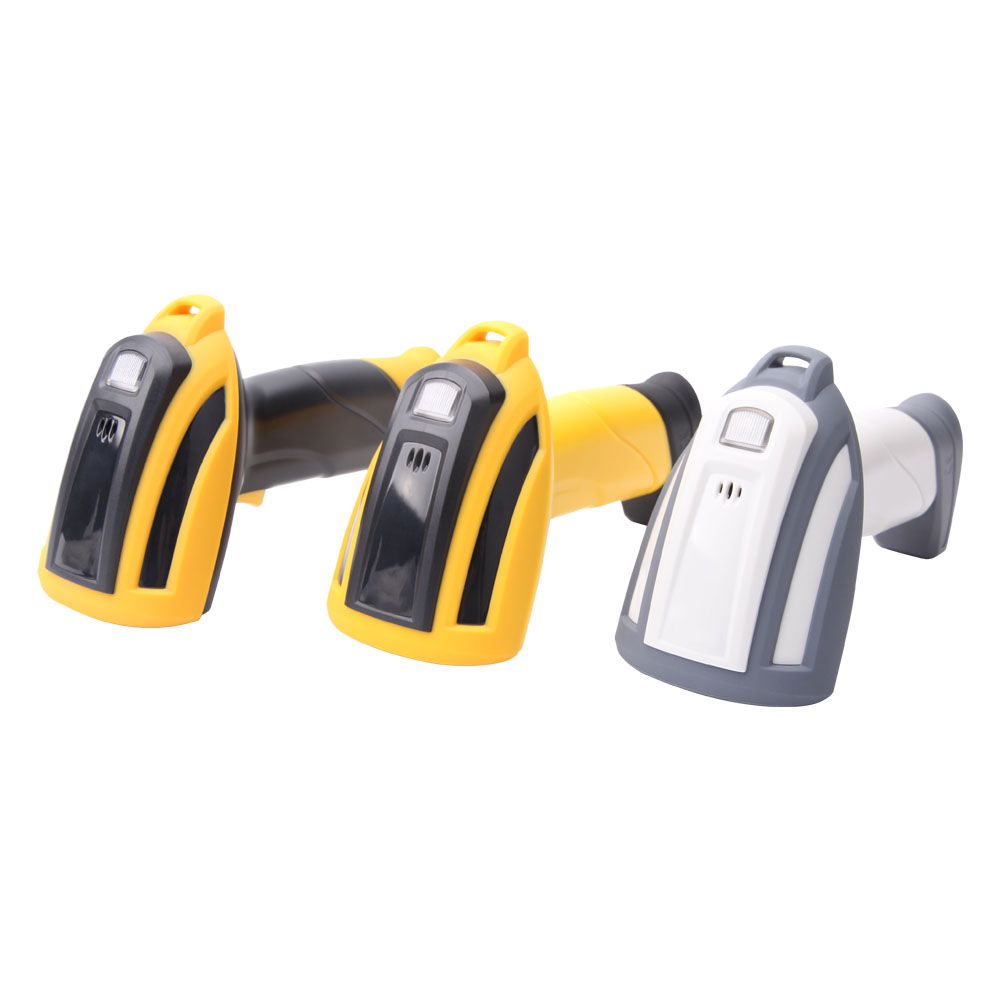

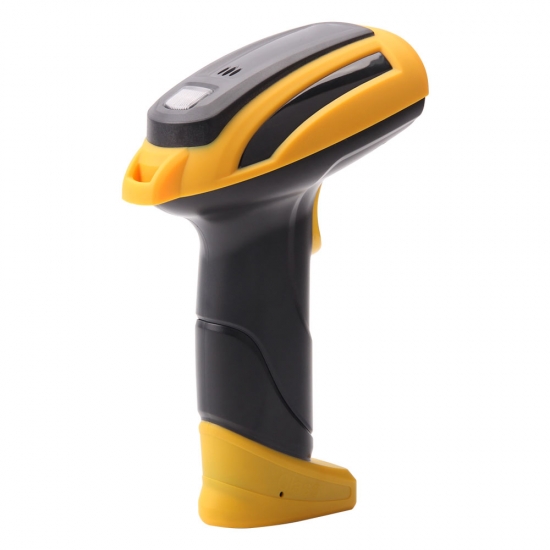

Rugged Handheld USB 1D and 2D Barcode Scanner

  • Model No. :

    SF-4600
  • Rugged Handheld USB 1D and 2D Barcode Scanner model SF-4600 supports both 1D and 2D scanning, RJ45 supported, widely used in logistics, warehouse, retailing shops, supermarkets etc
contact now
Description
Product Name: Rugged Handheld USB 1D and 2D Barcode Scanner Model SF-4600


Main Description:

Rugged Smart Barcode Scanner
Long Lifespan Button
Holder Optional
Reliable Laser Engine
Read 2D and All Standard 1D Bar Codes
Traditional Durable Interface
1.5M Shock Resistance
USB/KB/COM Supported


1D barcode scanner



Features:

Physical Parameters:

Material: ABS+PC+TPU

Size: L*W*H :170mm*97mm*68mm

Power supply:DC 5V


Performance Parameter:

Interface:USB, USB virtual RS232

Sensor: Planar CMOS sensor

Light source: Red CCD ,white LED (lighting)

Processor:32-bit ARM MCU

Decoding Capability:1D: Codabar, Code39, Code32, InterLeaved 2 of 5, Industrial 2 of 5, Matrix 2 of 5, Code93, Code128, Gs1-128, UPC-A, UPC-E, EAN/JAN-8, EAN/JAN-13, ISSN, GS1 DATABAR(RSS14), GS1 DATABAR Limited, Gs1databar Expanded

2D: PDF417, QR CODE, MICRO QR, DATAMATRIX, AZTEC CODE

Resolution:Code39 3mil, QR 8.7mil, PDF417 5mil,PCS45%

Depth of field:

5MIL   CODE39: 3--11CM

13MIL  UPC-A: 4--27CM

20MIL  CODE39: 7.5--35CM

6.7MIL PDF417: 3.5--9CM

10MIL  DATAMATRIX: 3--10CM

15MIL  DATAMATRIX: 3--17CM

20MIL  QR: 3--21CM

Scanning Speed:300scans/sec

Scanning Method: Manualor auto-sensing

Scanning area: 5 * 5 cm² -- 30 * 30 cm²

Prompting Mode: Buzzer ,indicator light (LED)

Printing contrast: No lower than 35%

Scanning angle:Roll0-360°;pitch±65°;yaw±60°



Environment Parameters

IP Grade: IP 54

Operating temperature:0 to 50 ºC / 32 to 122 ºF

Storage temperature: 0 to 50 ºC / 32 to 122 ºF

Operating humidity: 5 - 95% (non-condensing)

ESD Protection: 15KV air discharge

Shock resistance:1.5Meter free fall on concrete surface


2D barcode scanner
